Industrial metal product categories
Industrial metal products supply and sourcing solutions across four product categories. Specifications can reference standards (GB, ASTM, ANSI, ISO, EN); material documentation can be requested at quotation and depends on the product and producing factory.

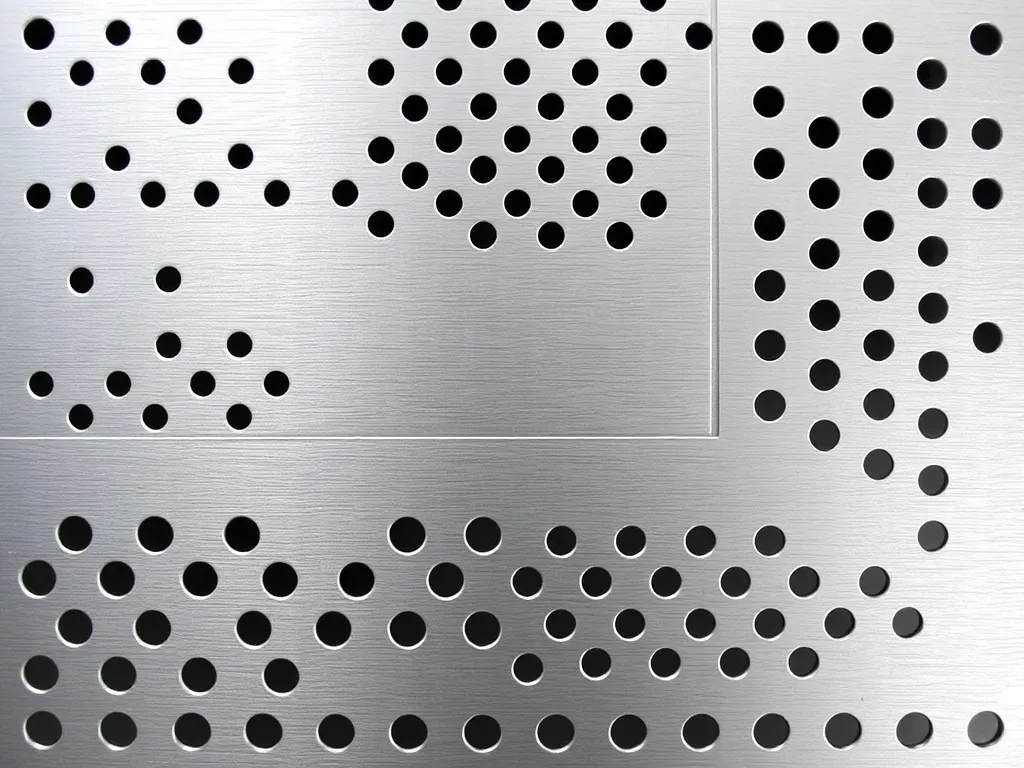

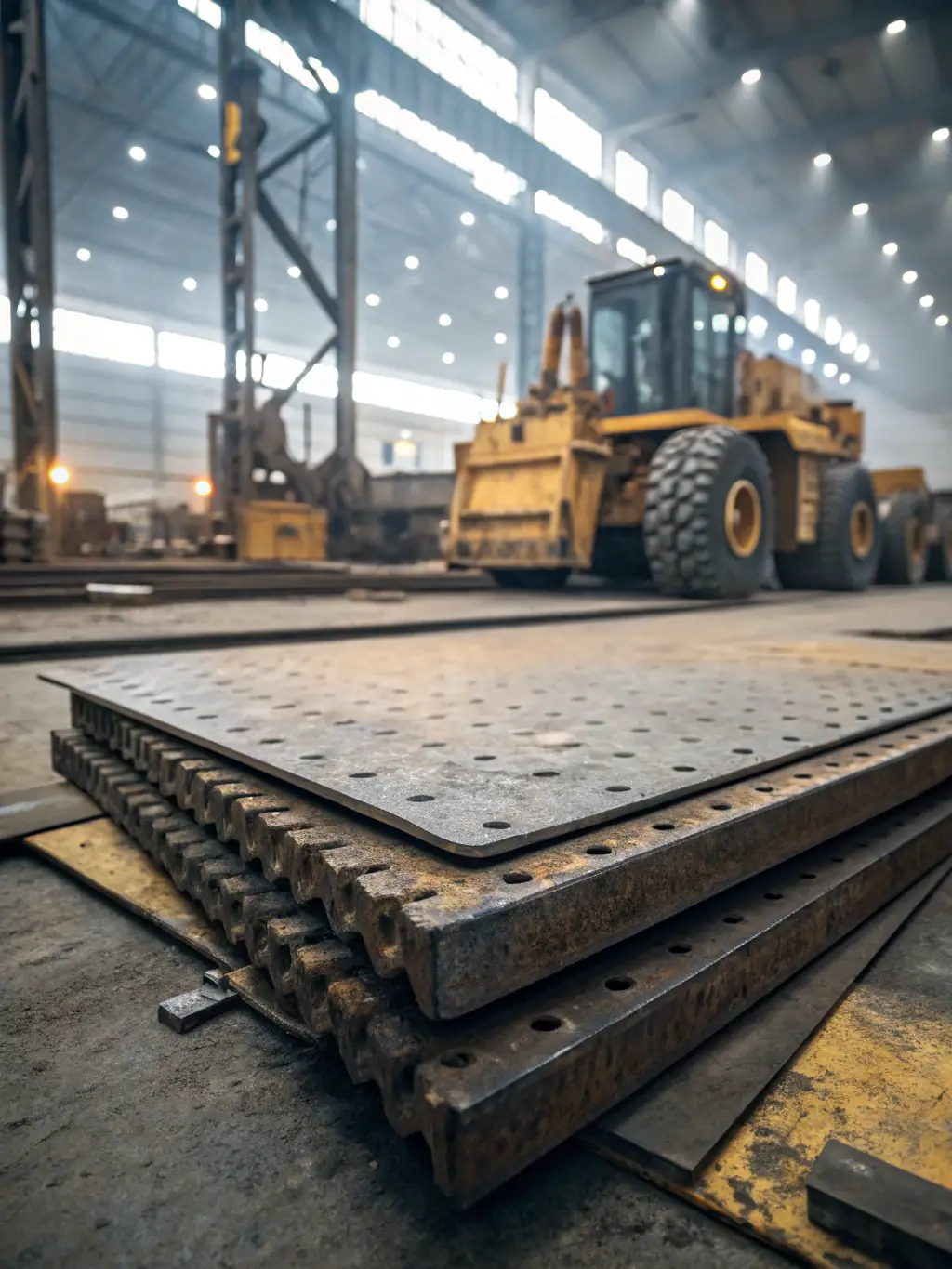

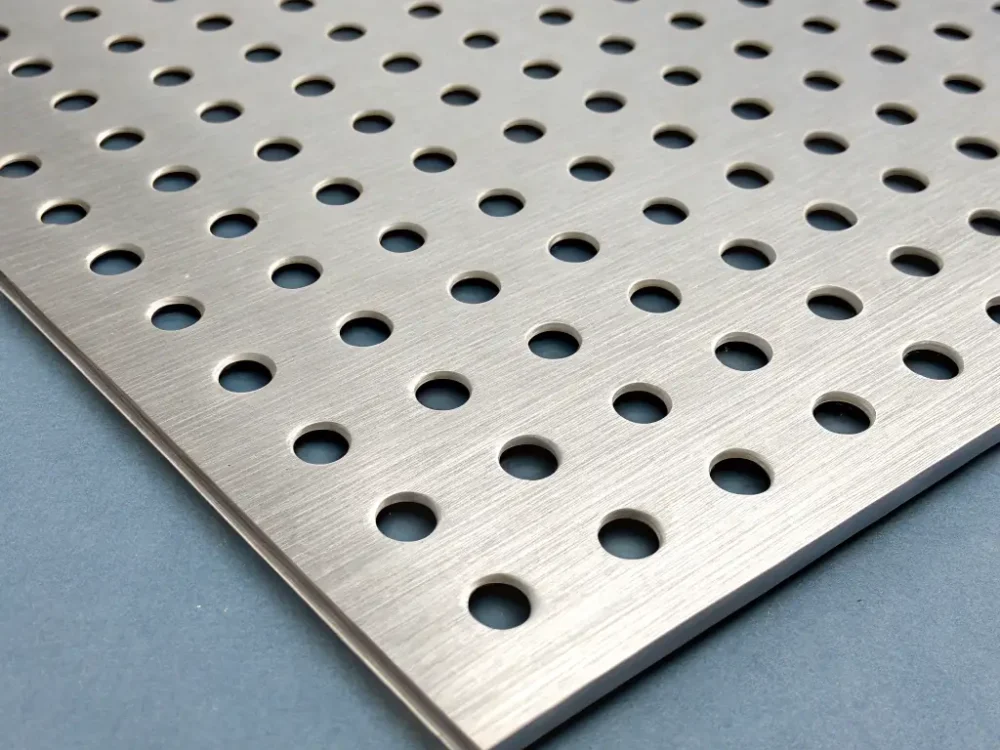

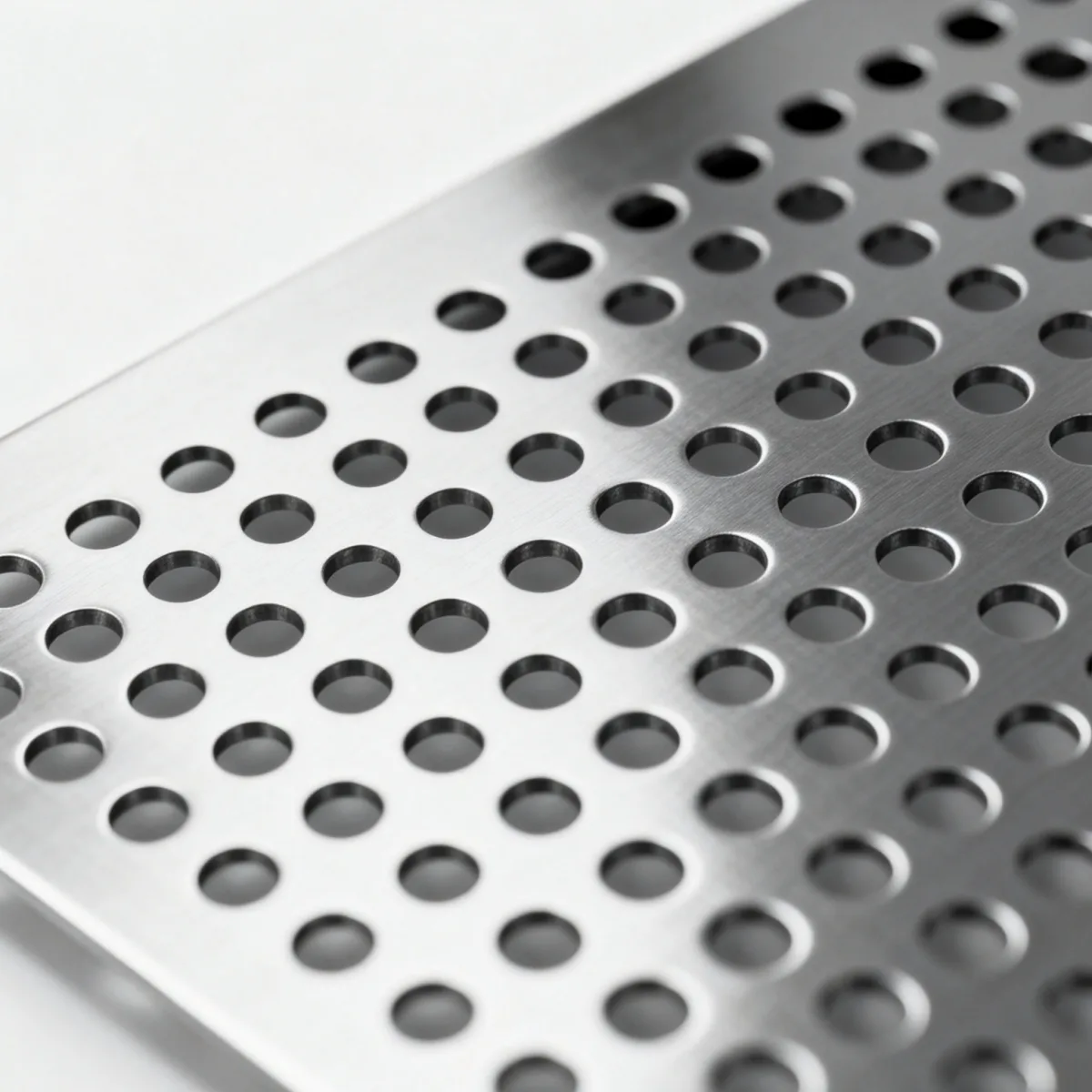

Perforated Metal
Round, square, slotted and architectural hole patterns
Perforated sheet in round, square, slotted and architectural patterns for acoustic, filtration and facade applications.
Round (staggered & straight), square, slotted, hex, and bespoke architectural dies
Carbon Steel, 304 & 316 Stainless Steel, Aluminum 3003/5052, Galvanized Steel
Acoustic attenuation, HVAC filtration, architectural facades, machine guards, sorting screens

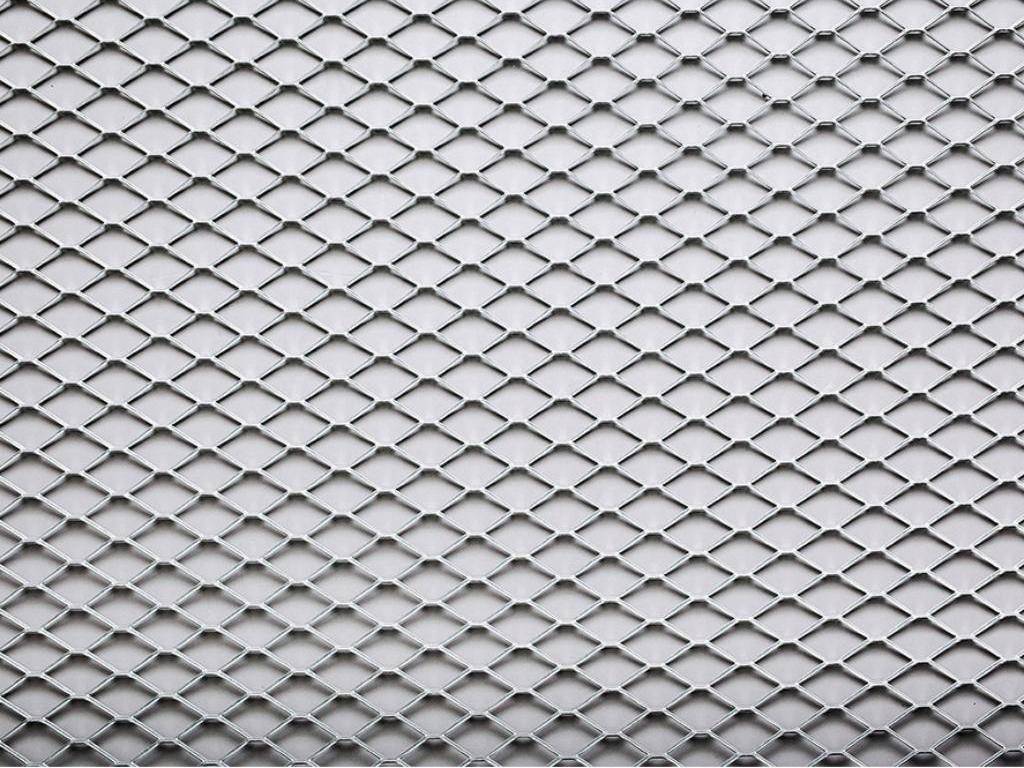

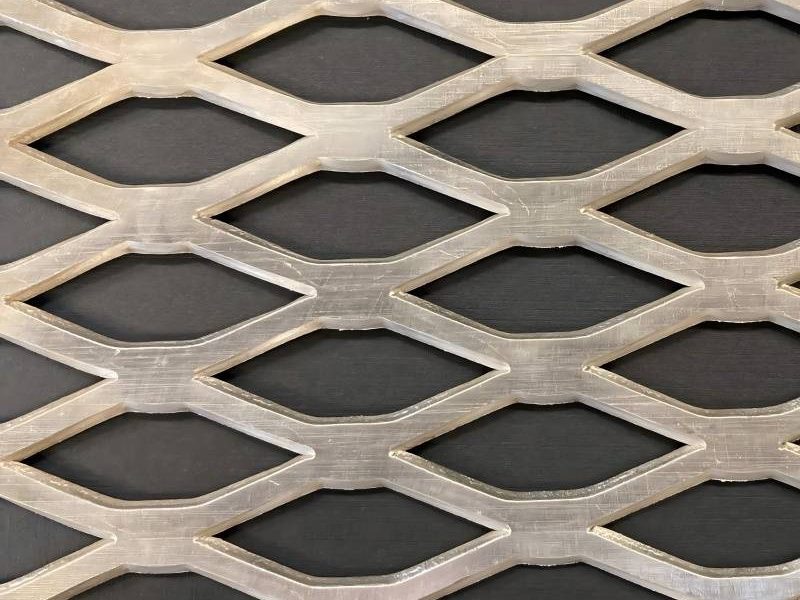

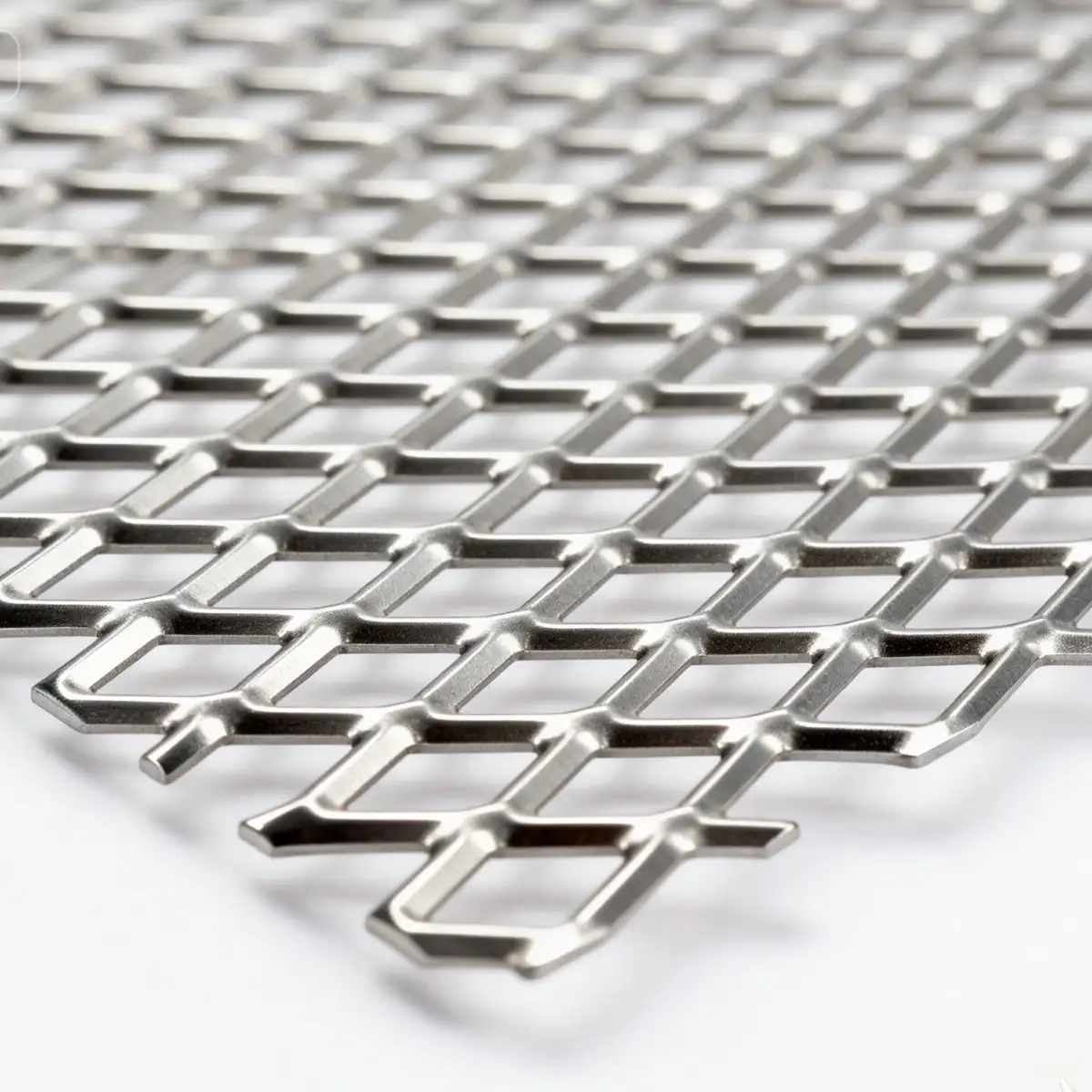

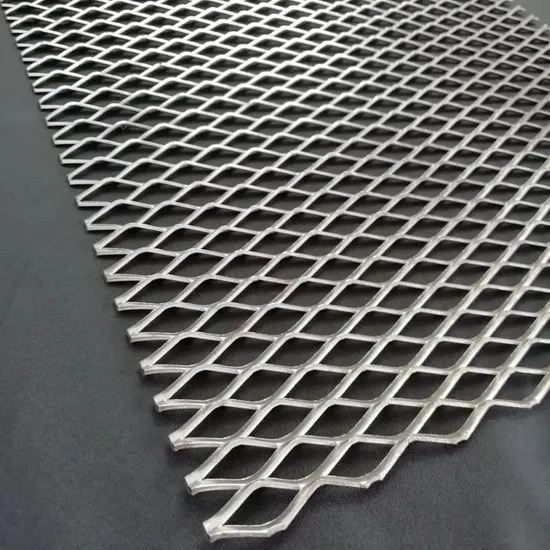

Expanded Metal
Rigid diamond-mesh panels slit and stretched from solid sheet
Made as a single piece without welds, with a rigid diamond mesh structure for perimeter security and industrial enclosures.
Standard raised diamond, flattened smooth mesh, micro-mesh, and heavy architectural grating
Carbon Steel, Hot-Dip Galvanized, Stainless Steel 304/316, Mill-Finish Aluminum
Safety enclosures, pedestrian walkways, security partitions, ventilation louvers, catwalks

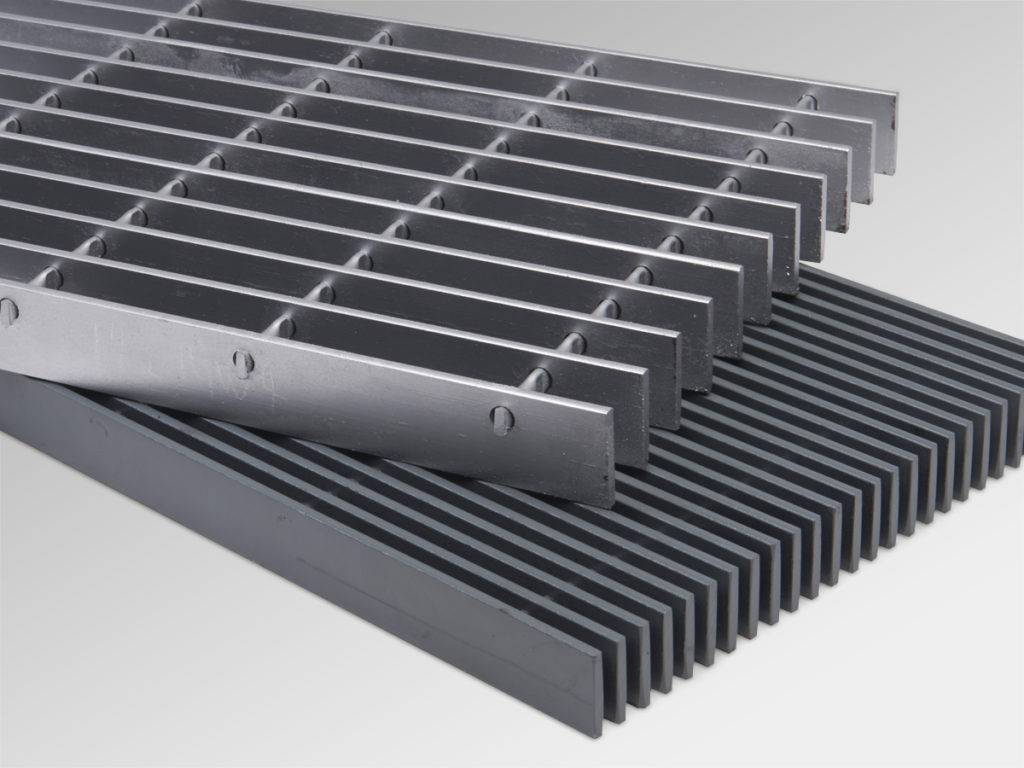

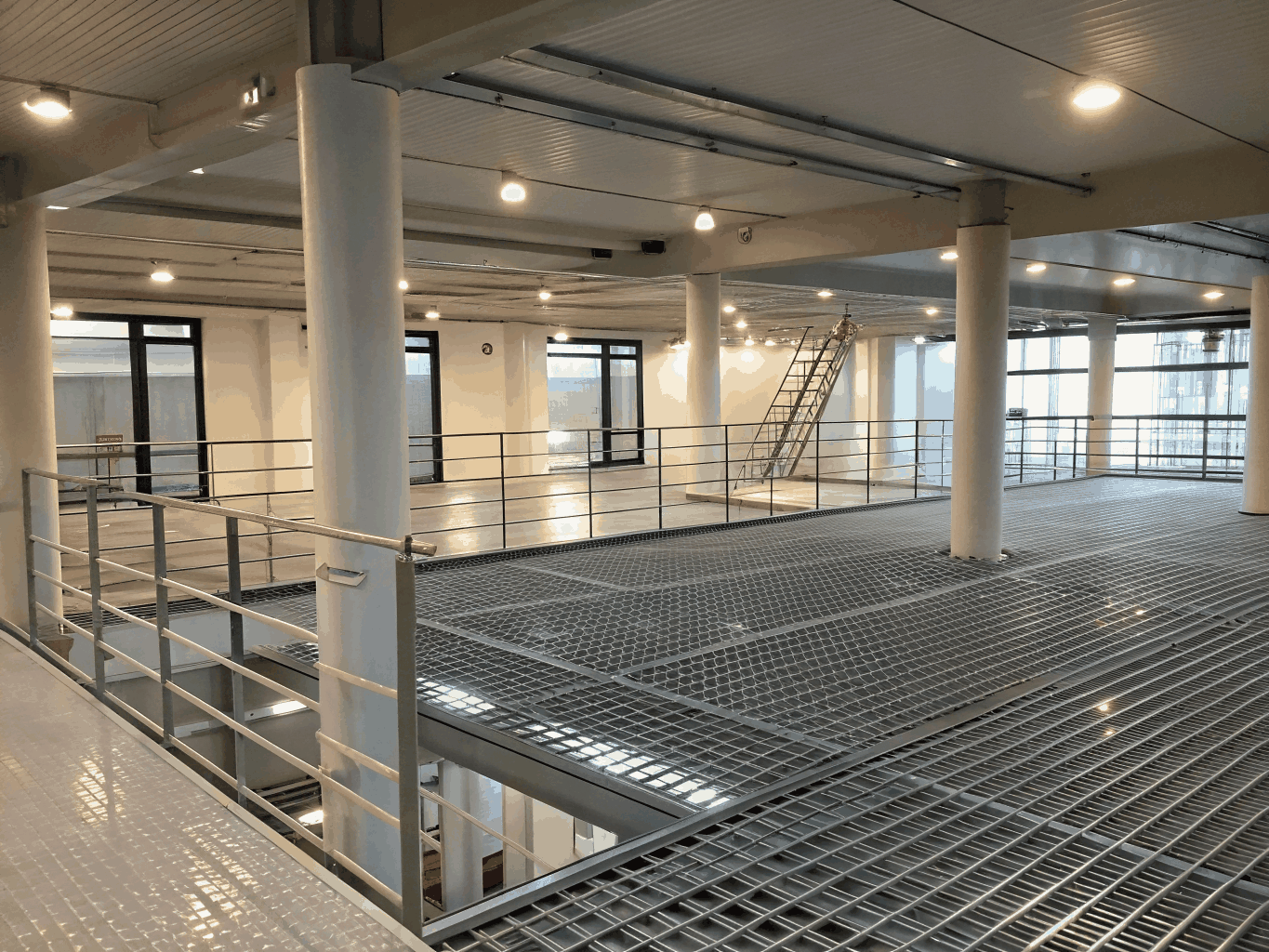

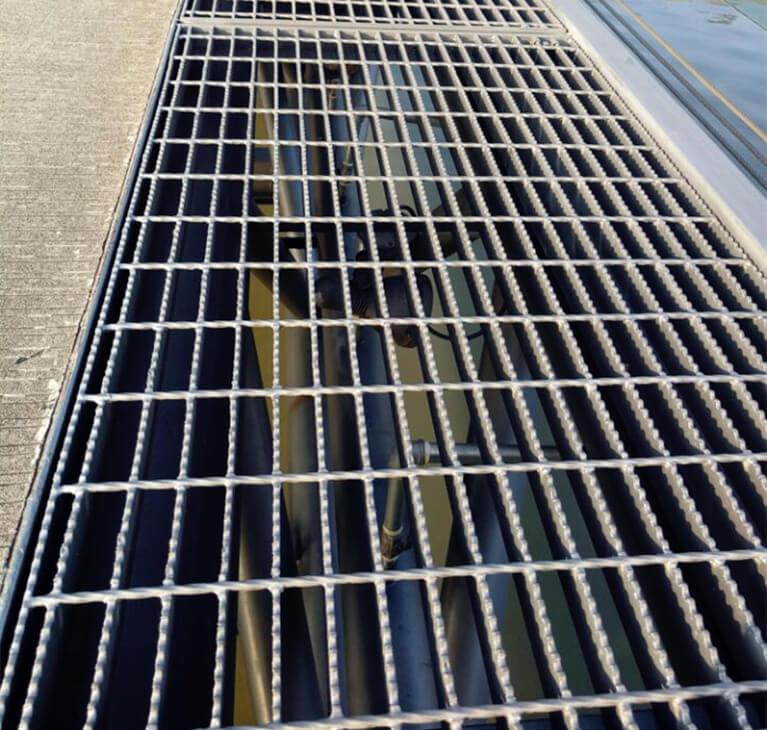

Bar Grating
Welded and press-locked grating for industrial flooring
Welded and press-locked grating panels for industrial flooring, trench covers and walkways.
19-W-4 welded standard, heavy-duty 15-W-4, press-locked, swaged rectangular, serrated anti-slip
Carbon steel (ASTM A36 / Q235B per GB/T 700 / S235JR per EN 10025-2 comparable strength classes; hot-dip galvanized), Stainless Steel 304/316, 6063-T6 Aluminum
Drainage trench covers, mezzanine platforms, refinery catwalks, bridge decking, stair treads

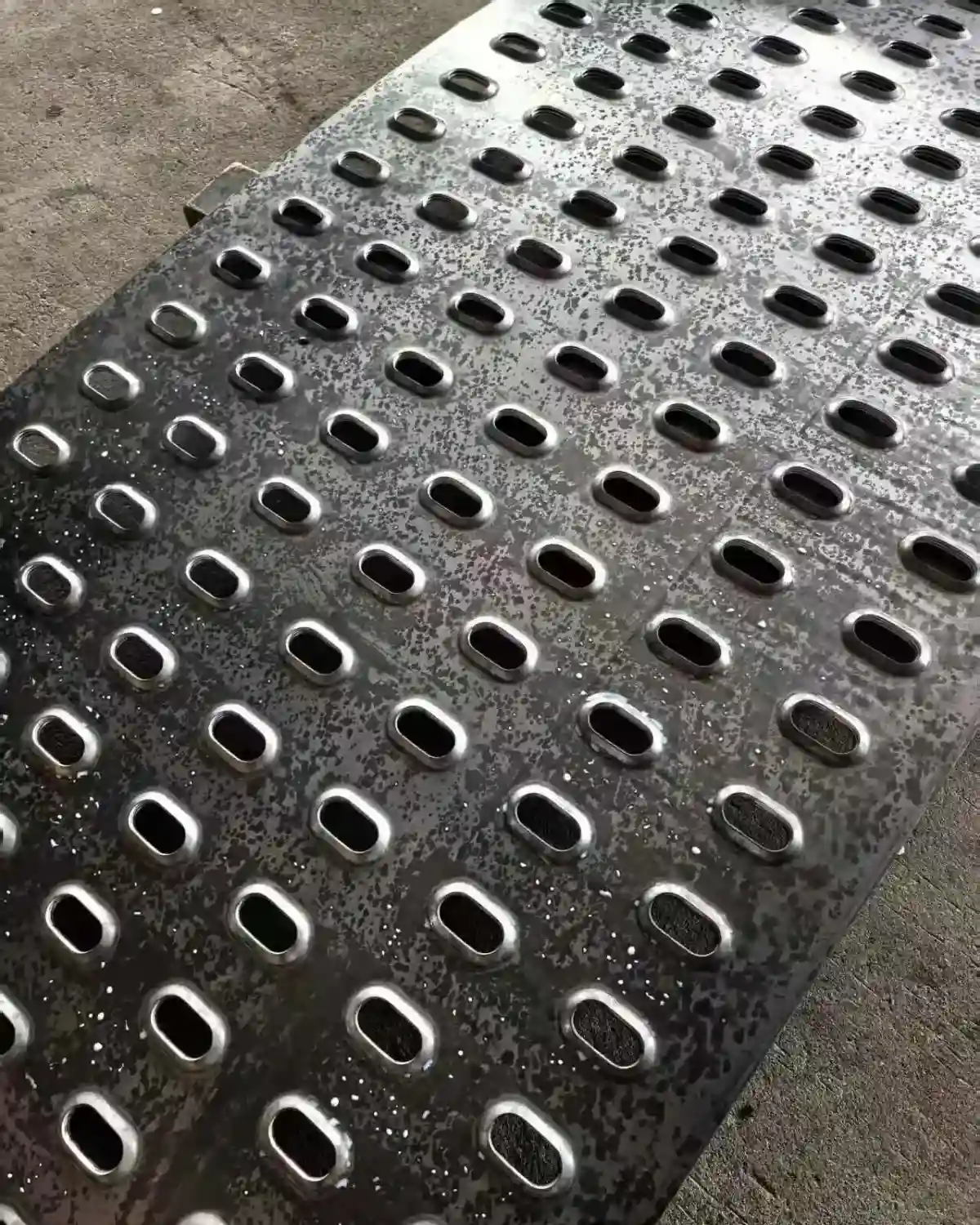

Checkered Plate
Raised Anti-Slip Pattern Steel
Industrial anti-slip safety plates and planks spanning raised-pattern sheets (diamond, two-bar, five-bar) and perforated grip channels (fish-eye, crocodile mouth) for dependable traction and drainage.
Raised: Diamond, Two-Bar, Five-Bar / Perforated: Fish-Eye, Crocodile Mouth
Carbon Steel A36, Stainless Steel 304, Stainless Steel 316, Aluminum 6061
Stair Treads, Truck Flooring, Industrial Platforms, Ramps
Need custom gauge, pattern spacing, or edge margins?
Materials, gauges, and sizing supplied to specification
Select common specifications or specify exact gauges, sheet profiles, and edge margins per drawing.
| Material & Reference Grades | Structural Characteristics | Available Finishes |
|---|---|---|
| Carbon SteelCold Rolled (ASTM A1008 / GB/T 13304 / ISO 4997), Hot Rolled (ASTM A1011 / GB/T 3274 / EN 10025-2 S235JR / ISO 4995), ASTM A36 / Q235B (GB/T 700) (comparable strength classes, reference only, confirmed per project) | High tensile structural strength, economical for load-bearing and internal assemblies. Material grade cross-references are for comparison only; confirmed per project. | Mill finish, hot-dip galvanized (ASTM A123 / GB/T 13912 / ISO 1461), electro-galvanized, powder coated |
| Stainless SteelType 304 / 304L (ASTM A240 / GB/T 4237 06Cr19Ni10 / EN 10088-2 1.4301), Type 316 / 316L (ASTM A240 / GB/T 4237 06Cr17Ni12Mo2 / EN 10088-2 1.4401) | Exceptional corrosion resistance and sanitary cleanability for harsh environments; MTR provided per applicable standard and producing factory. | 2B mill, #4 architectural brushed, electropolished, passivation |
| AluminumAlloy 3003-H14, Alloy 5052-H32, Alloy 6061-T6 (ASTM B209 / GB/T 3880 / EN 485-2 reference standards) | Lightweight, non-magnetic, corrosion resistant, optimal for architectural facade systems; alloy temper and tolerances confirmed per drawing. | Mill finish, clear anodized, color anodized, Kynar fluoropolymer |
High tensile structural strength, economical for load-bearing and internal assemblies. Material grade cross-references are for comparison only; confirmed per project.
Mill finish, hot-dip galvanized (ASTM A123 / GB/T 13912 / ISO 1461), electro-galvanized, powder coated
Exceptional corrosion resistance and sanitary cleanability for harsh environments; MTR provided per applicable standard and producing factory.
2B mill, #4 architectural brushed, electropolished, passivation
Lightweight, non-magnetic, corrosion resistant, optimal for architectural facade systems; alloy temper and tolerances confirmed per drawing.
Mill finish, clear anodized, color anodized, Kynar fluoropolymer
Need a specific alloy or custom dimensions?
Reference standards by category
Standards listed are for engineering and procurement reference only, never certificates held by MutualMetal. Applicable standards, material grades and documentation are confirmed per product and project.
No single universal product standard for general-purpose perforated metal; ISO 7805/10630, GB/T 6003.2 and ASTM E323 apply to industrial screens and test sieves. Pattern and margins are custom-specified per drawing.
Key product standards include GB/T 33275, ASTM F1267, ANSI/EMMA 557 and DIN 791; flattened expanded metal coverage is confirmed per project.
Grating fabrication references YB/T 4001.1, ANSI/NAAMM MBG 531 and DIN 24537; ASTM has no direct grating product standard (A36/A123 are technical), while ISO 14122 and GB 4053 provide safety access references.
Rolled floor plate references GB/T 33974, ASTM A786 and DIN 59220; fish-eye and crocodile mouth grip channels are formed profile sheets without direct product standards, confirmed per project.
Need cross-system comparisons between GB, ASTM, ANSI, ISO and EN/DIN for materials, galvanizing, testing, and tolerance documentation?
Need a custom quote or specific gauge?
Send your material specifications, sheet dimensions, pattern codes, or CAD drawings. We supply perforated metal, expanded metal, bar grating, and checkered plate to your specification through selected in-house production and partner factories.
Perforated metal, expanded metal, bar grating, and checkered plate supplied to project specifications.
Project drawings, CAD files, and technical specifications are reviewed by our team before quoting.
Material test reports can be requested at quotation; availability depends on product and producing factory.
Submit project specs
Share your material grade, sheet dimensions, pattern codes, or drawings to receive itemized project pricing.
