1300FZQ

Gain insights into the remarkable benefits of our feature and see how it can elevate your business.

Feature & Application

  • Designed for high-speed weaving of metal wire mesh.

  • Suitable for various metal materials including stainless steel, carbon steel, and galvanized wire.

  • Ideal for industrial applications such as filtration, screening, fencing, and architectural use.

  • Combines precision engineering with intelligent control systems for consistent mesh quality.

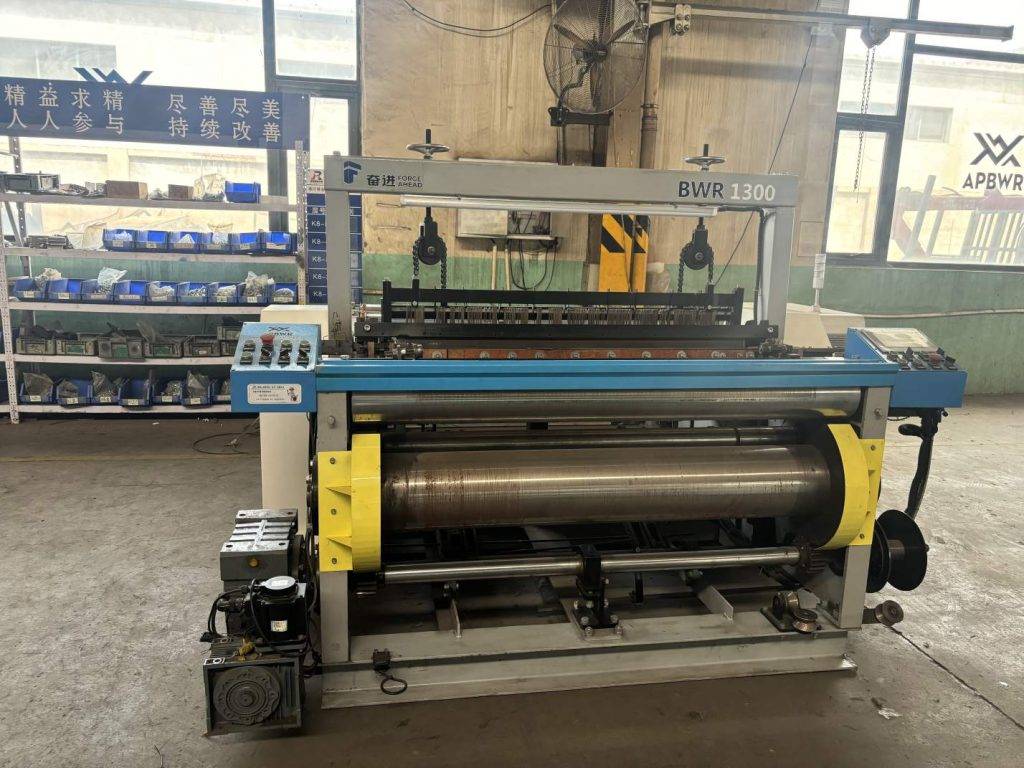

1300 fzq (1)

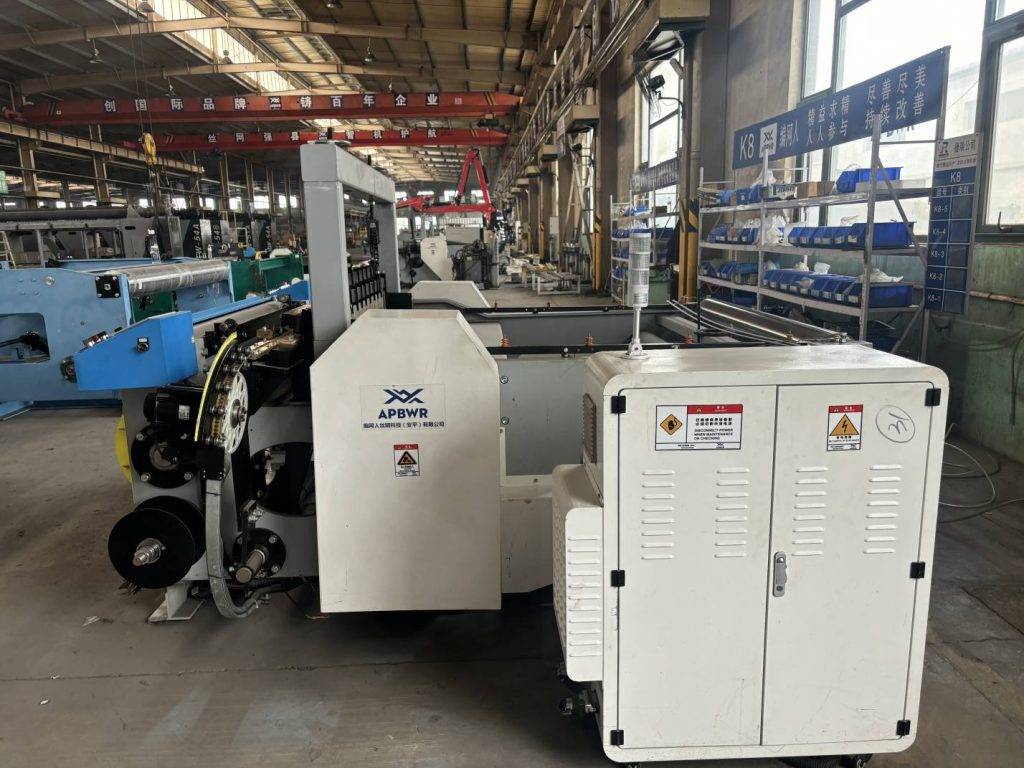

1300 fzq (2)

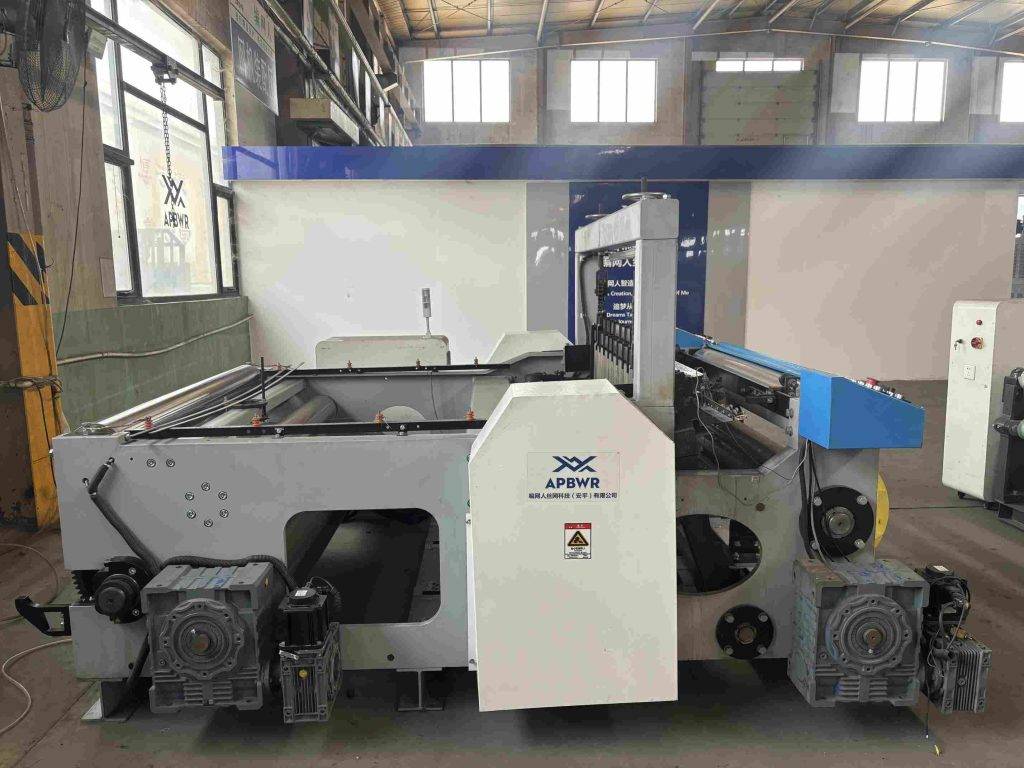

1300 fzq (3)

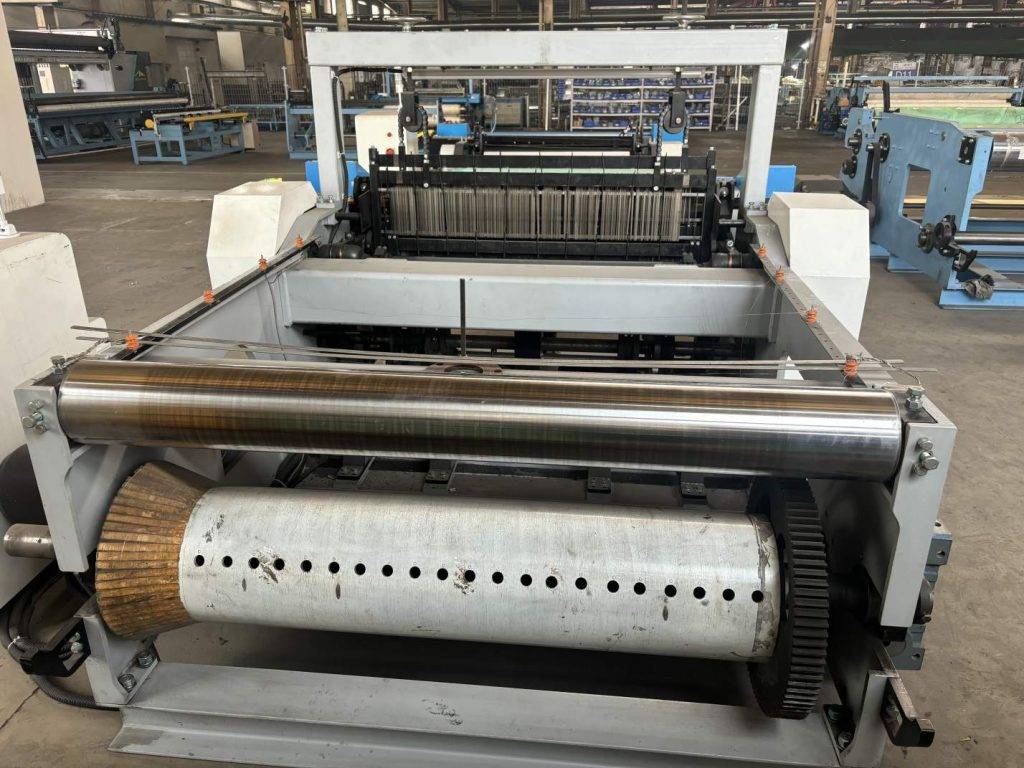

1300 fzq (4)
ITEMSPECIFICATION
Standard Weaving Width1300 mm
Wire Diameter Range0.10 - 0.80 mm
Weaving DensityPlain weave: up to100 meshes
Twill weave: up to100 meshes
Dutch weave: up to 400 meshes
Production Capacity & Rotational Speed
(Actual speed depends on weaving specifications)		10 RPM
Basic Tension20 kN/m
Mesh Lowering MethodDirect Roll Hanging
Harness TypeArch harness (2 harnesses)
Total Power10 KW
Overall Dimensions3100×2600×1800 mm
Net Weight of Product5 T
