or standard industrial wire mesh can be found in certain specifications. The market grade specifications set a standard for certain mesh counts and their corresponding wire diameters. These commonly found mesh counts are standards for the industry and can be typically found directly.

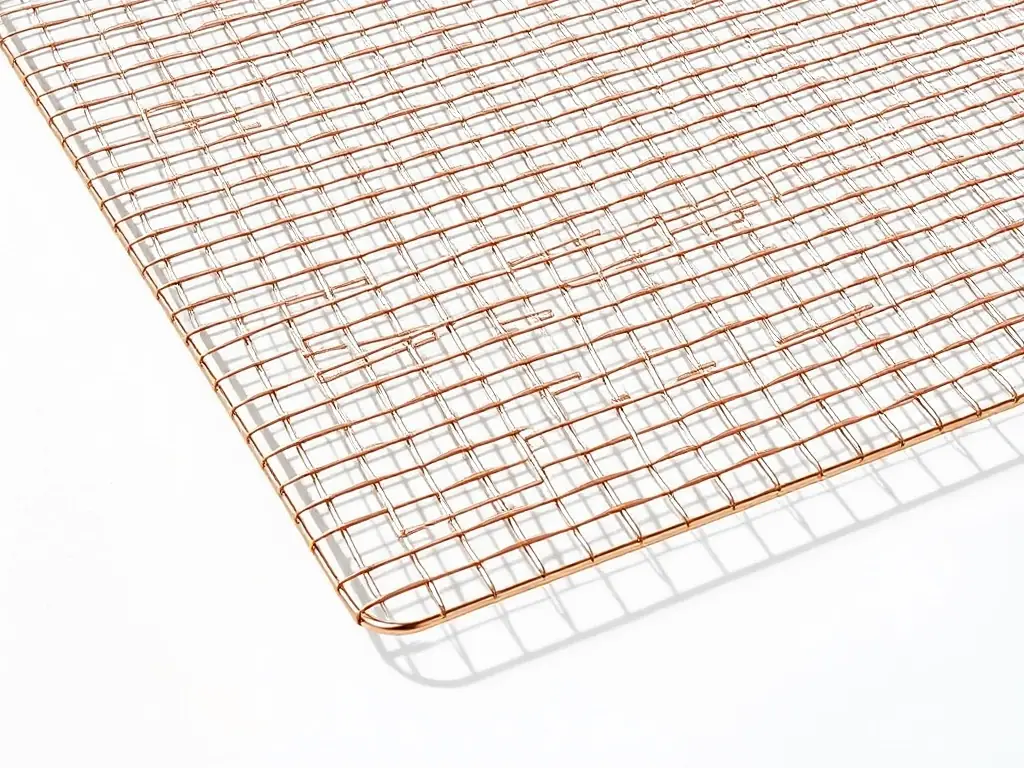

Market grade wire cloth can be manufactured from stainless steel, as well as other metals such as bronze, aluminum, brass, copper and nickel. Market grade wire mesh is available in a wide range of openings per lineal inch, wire diameters, opening widths and open area percentages to meet numerous industrial applications.
Market grade wire cloth is different from mill grade because it uses thicker wires, which makes it stronger and more durable but leaves less open area for screening.
Mesh with a count above 80 is called fine mesh, while mesh below 80 is called coarse mesh.
Bolting cloth is better when more open area is needed, even if it means sacrificing some strength.
Ordering wire mesh products can be overwhelming. To simplify the process, the industry has defined standard or market grade wire mesh, which is a specific group of commonly used mesh and diameter combinations that are often in stock.

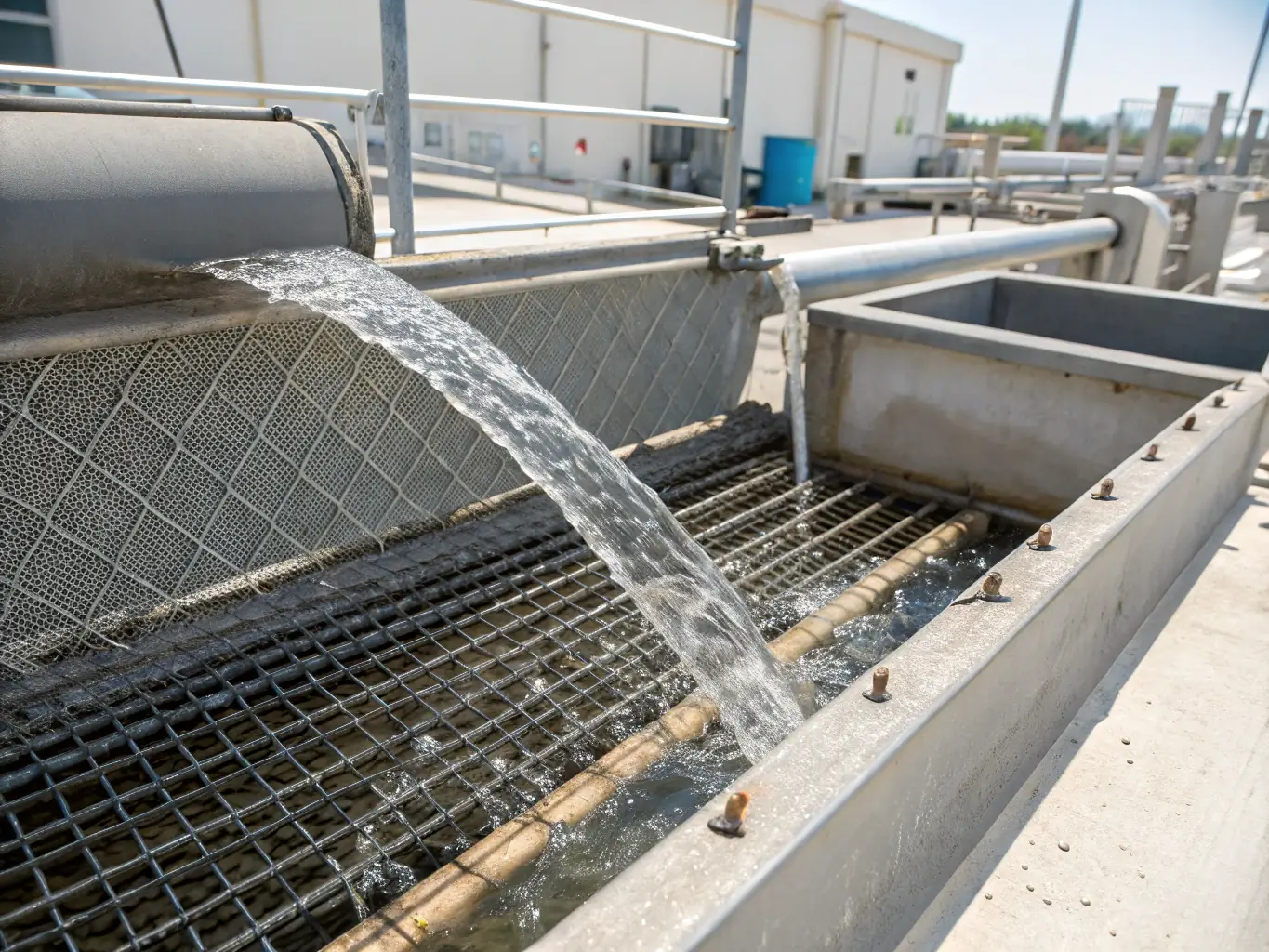

Market grade wire mesh can be used for many different types of industrial and commercial general-purpose screening applications. Examples include:
Standard rolls are understood to be 100 linear feet (30.48 meters), but may vary in length by 10%. Upon request, rolls longer than 100 feet can be woven to meet your special requirements. “Partial” rolls up to 99 linear feet (30.18 meters) available.
Most stock materials are 36 (914.4 mm), 48 (1219.2 mm) or 60 (1524.0 mm) wide, but many items can be supplied in increments from 24 (609.6 mm) to 96 (2438.4 mm). Widths less than 24 (609.6 mm) are generally slit from wider stock. However, widths narrower than 24 with selvage edges can be manufactured.
If rolls are to be cut prior to use, select lengths or widths from stock can often be used, reducing delivery times and costly waste. Clearly specify loop selvage if required. For special cut shapes, baskets, filters strainers or other components please include your drawings. We can custom fabricate any special requirements such as notching, bolt holes, special shape, bending, forming, calendering, etc.
