Product Overview

Hot Dip Galvanized Hexagonal Wire Mesh for Rockfall Protection is engineered for slope stabilization, erosion control, and protection against falling rocks in mountainous and infrastructure environments. Manufactured from high-strength steel wire with a durable hot-dip galvanized coating after weaving (GAW), this hexagonal double twist mesh provides excellent corrosion resistance, flexibility, and structural reliability for demanding outdoor applications.

Compared with conventional fencing mesh, rockfall protection hexagonal wire mesh is designed with heavier wire diameters and stronger weaving structures to withstand impact loads, ground movement, and harsh environmental conditions. It is widely used in highways, railways, mining areas, and slope reinforcement projects.

Key Specifications

Material: Low Carbon Steel Wire

Wire Diameter: 2.0 mm, 2.2 mm, 2.4 mm, 2.7 mm, 3.0 mm

Mesh Opening: 60 mm × 80 mm, 80 mm × 100 mm, 100 mm × 120 mm

Mesh Type: Hexagonal Double Twist Weave

Surface Finish: Hot Dip Galvanized After Weaving (GAW)

Zinc Coating: 70–275 g/m² depending on project requirements

Roll Width: 2.0 m, 2.5 m, 3.0 m or customized

Roll Length: 25 m, 30 m, 50 m or customized

Edge Type: Reinforced Edge Wire or Standard Edge

Key Features

• Heavy-duty double twist structure provides high mechanical strength.
• Hot-dip galvanized coating ensures long-term corrosion protection in outdoor environments.
• Flexible mesh structure adapts to uneven slopes and terrain movement.
• Resists rock impact while maintaining structural stability.
• Suitable for large-scale infrastructure and erosion control projects.
• Available with customized dimensions and OEM project requirements.

Typical Applications

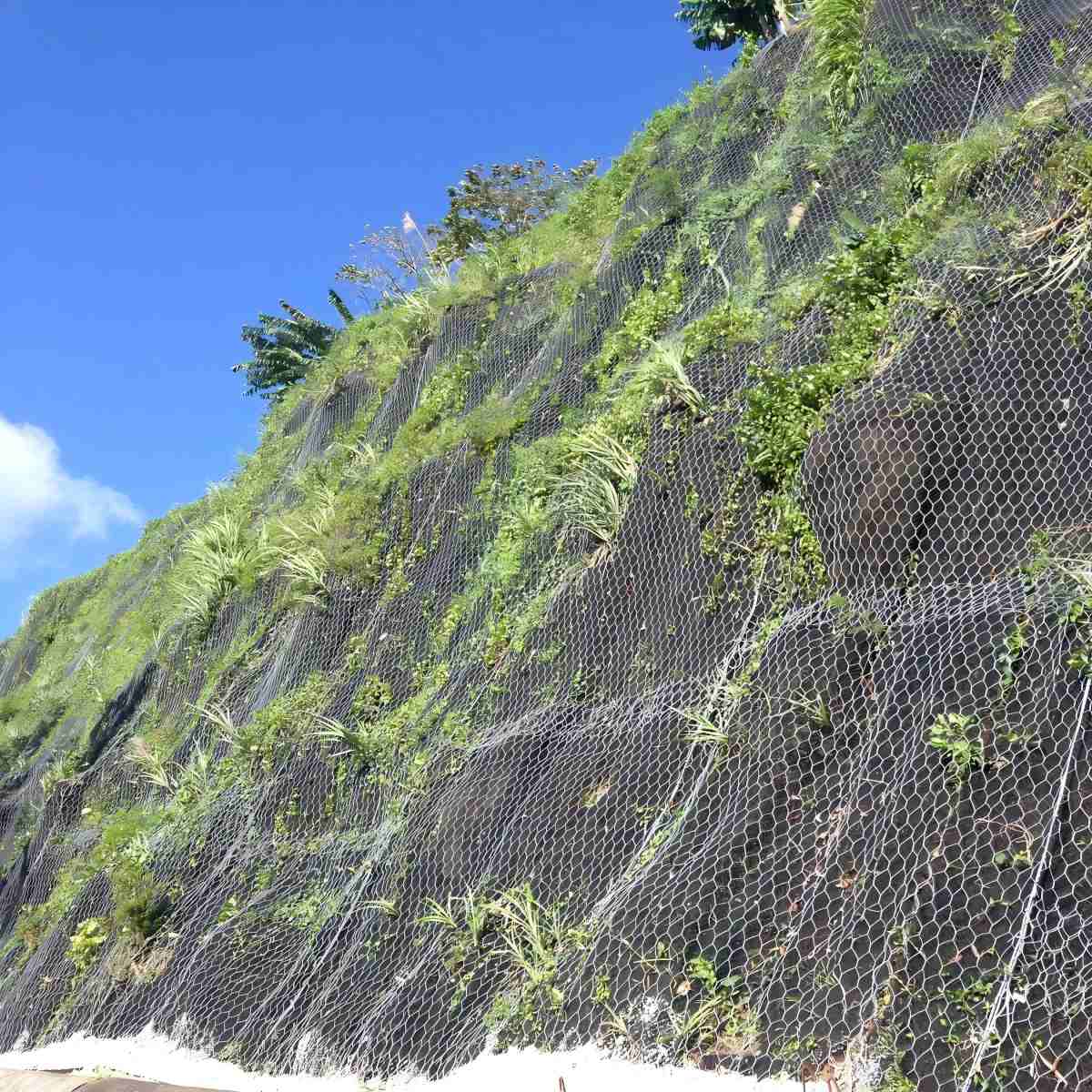

• Rockfall protection systems
• Slope stabilization
• Highway protection
• Railway slope reinforcement
• Mining site safety protection
• Mountain road construction
• Erosion control projects
• Retaining structure reinforcement

Customization Options

• Wire diameter customization
• Mesh opening customization
• Roll width and length
• Additional edge reinforcement wire
• Different zinc coating levels
• OEM packaging and project supply support
