Product Overview

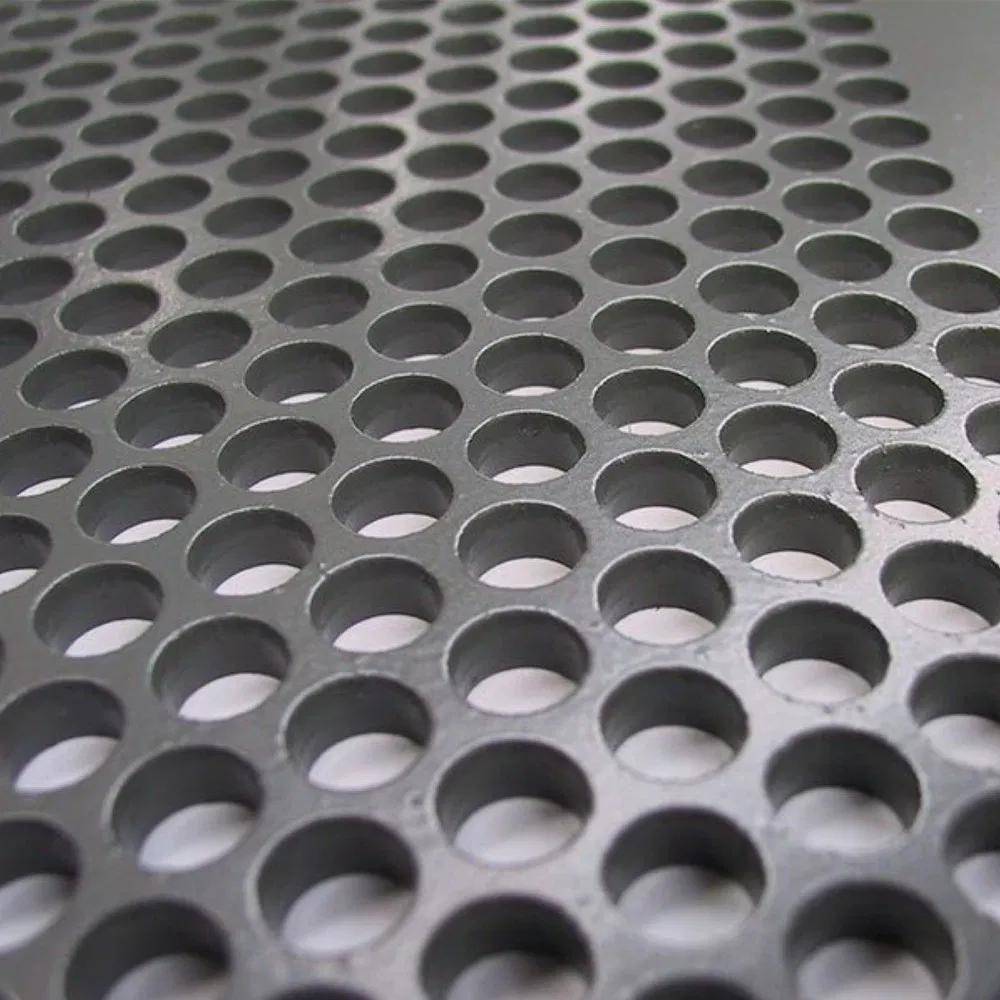

Low Carbon Steel Round Hole Perforated Metal Sheet is designed for industrial screening applications requiring high strength, wear resistance, and economical performance. Manufactured with precision punching technology, it provides consistent aperture accuracy and reliable screening efficiency for aggregates, minerals, grain, recycling materials, and bulk solids. It is widely used in vibrating screens, grading equipment, processing machinery, and OEM screening systems.

Key Specifications

Material: Low Carbon Steel (Q235 or ASTM A36).

Hole Pattern: Precision round hole perforation optimized for industrial screening.

Typical Hole Diameter: 5 mm, 8 mm, 10 mm, 12 mm, 15 mm, 20 mm, and 25 mm.

Typical Thickness: 2.0 mm, 2.5 mm, 3.0 mm, 4.0 mm, and 5.0 mm.

Typical Open Area: 30%–45%, depending on hole diameter and pitch.

Available Sheet Size: 1000 × 2000 mm, 1250 × 2500 mm, 1500 × 3000 mm, or customized.

Key Features

Designed for Screening: Optimized hole layouts provide accurate material separation and stable screening efficiency.

High Wear Resistance: Thicker steel plates are suitable for abrasive materials and continuous operation.

Excellent Structural Strength: Maintains rigidity under vibration and heavy material loads.

Custom Manufacturing: Hole diameter, pitch, sheet thickness, panel dimensions, and fabrication services are available to meet specific screening equipment requirements.

Typical Applications

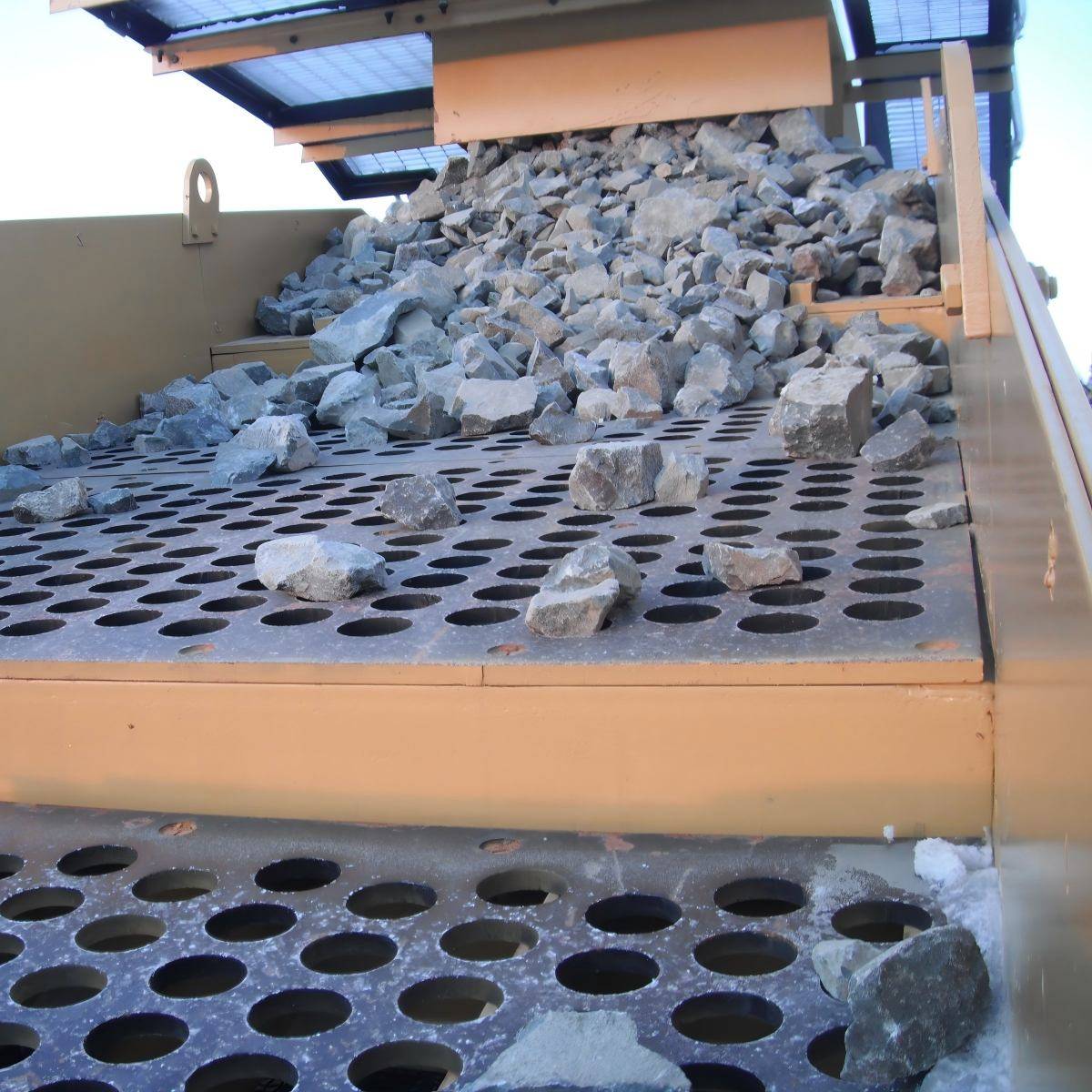

Suitable for vibrating screens, aggregate screening, sand and gravel processing, mining equipment, grain cleaning systems, recycling facilities, fertilizer screening, mineral processing, and bulk material classification.

Customization Options

MutualMetal supplies customized low carbon steel perforated screening plates with flexible options for hole diameter, pitch, plate thickness, sheet size, edge treatment, reinforcing frames, and fabrication according to OEM drawings and industrial processing requirements.
