Product Overview

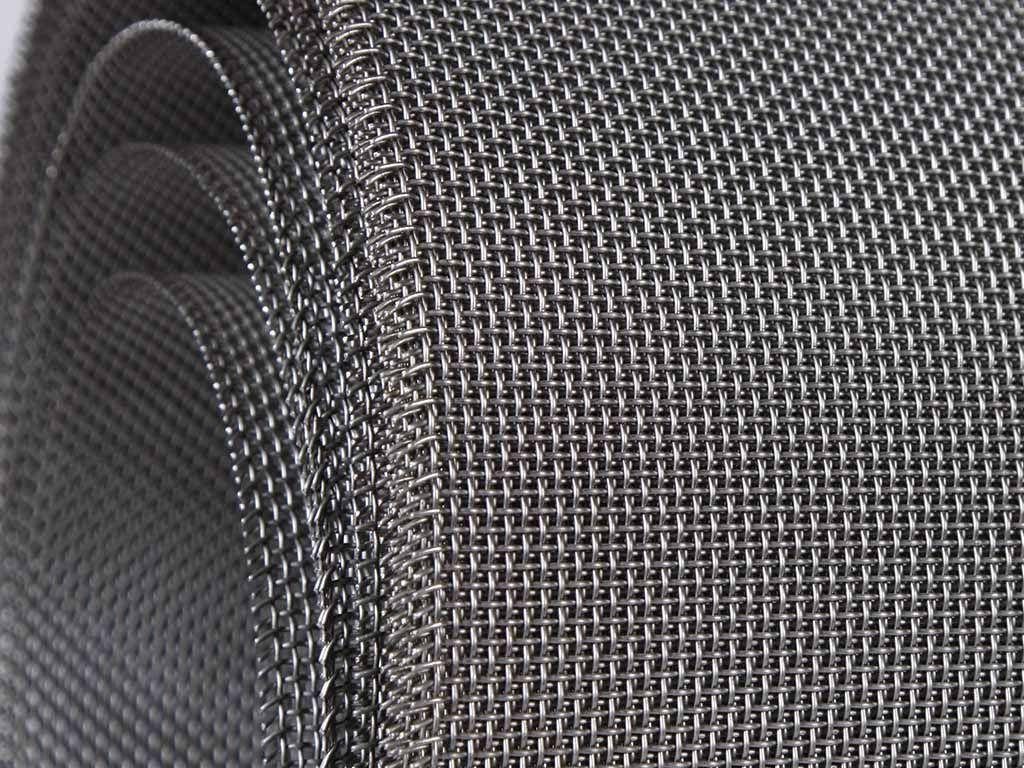

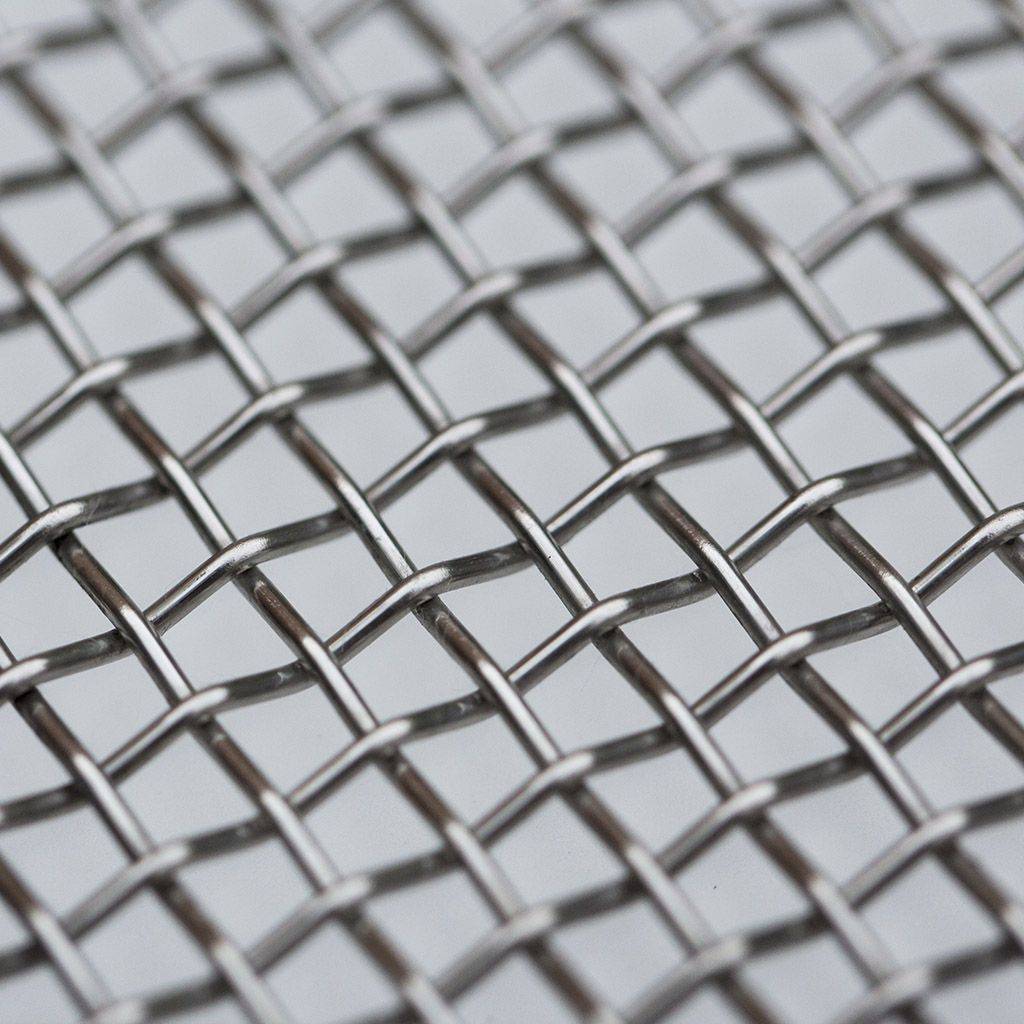

Stainless Steel Plain Weave Wire Mesh for Sieving is manufactured with evenly woven warp and weft wires to deliver precise opening accuracy and consistent screening performance. It is widely used for particle separation, grading, laboratory analysis, food processing, pharmaceutical production, and industrial filtration where dimensional stability and corrosion resistance are essential.

Key Specifications

Material: Stainless Steel 304 and Stainless Steel 316 (304L and 316L available upon request)

Weaving Type: Plain Weave

Mesh Count: 2–635 mesh, suitable for standard laboratory sieving and industrial particle size classification.

Wire Diameter: 0.03–2.03 mm (0.0012″–0.080″) depending on mesh count and application requirements.

Opening Size: 0.02–12.27 mm (0.0008″–0.483″) for accurate particle separation.

Open Area: Approximately 20%–79%, depending on mesh specification.

Standard Width: 914 mm, 1000 mm, 1220 mm, and 1500 mm.

Standard Length: 30 m rolls (100 ft) or customized cut lengths.

Surface Finish: Bright

Standards: Manufactured according to ASTM E2016, ISO 9044, ISO 4783, and customer specifications.

Key Features

• Precision woven mesh provides accurate particle size separation.
• Consistent openings improve repeatability in screening and analysis.
• High-quality stainless steel provides excellent corrosion resistance.
• Stable mesh geometry ensures reliable sieving performance.
• Smooth surface supports easy cleaning and contamination control.
• Available in fine and coarse mesh specifications for different materials.
• Suitable for laboratory sieves, test screens, and industrial separators.
• Can be supplied as rolls, sheets, discs, and fabricated components.

Typical Applications

• Laboratory test sieving
• Particle size analysis
• Powder classification
• Mineral sample testing
• Pharmaceutical material screening
• Food ingredient sieving
• Chemical powder separation
• Industrial screening equipment

Customization Options

• Customized mesh count and opening size
• Various stainless steel grades available
• Custom roll width and roll length
• Cut-to-size sheets and mesh discs
• Laser-cut precision components
• Edge treatment and reinforced borders
• OEM labeling and export packaging
