Metal mesh is available in many different designs. Each weave creates different mesh patterns with a unique look and attractive light effects. The appearance of our woven structures ranges from wire mesh made of smooth and crimped wires with rectangular or square meshes to complex woven constructions.
DOGLA-TRIO 1033
DOKA-MONO 1851
DOKAWELL-MONO 3571
DOKAWELL-MONO 3691
EGLA-TWIN 4253
EGLA-MONO 4881
EGLA-MONO 4832
LARGO-NOVA 2032
LARGO-PLENUS 2022
LARGO-PLENUS 2047
LARGO-PLENUS 2127
LARGO-TWIST 2045

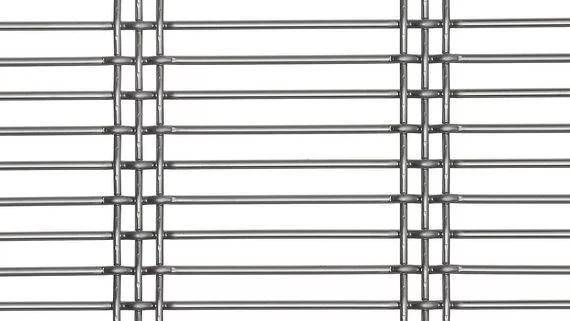

DOGLA-TRIO is a stable wire mesh type that is given a vertical structure by wire groups. Due to its inherent stability and the possible versions in different degrees of transparency, DOGLA-TRIO can be used for many applications. Seen from a distance, the robust and secure architectural wire mesh looks like a filigree fabric.
Weight: ~ 6.5 kg/m²
Open area: ~ 67%
Main applications: Facade, ceiling & wall, parapet, sun protection
DOKA-MONO architectural wire meshes have particularly good inherent stability. Visually, it is particularly convincing due to its homogeneous appearance.
Weight: ~ 6.1 kg/m²
Open area: ~ 58%
Main applications: Facade, ceiling & wall

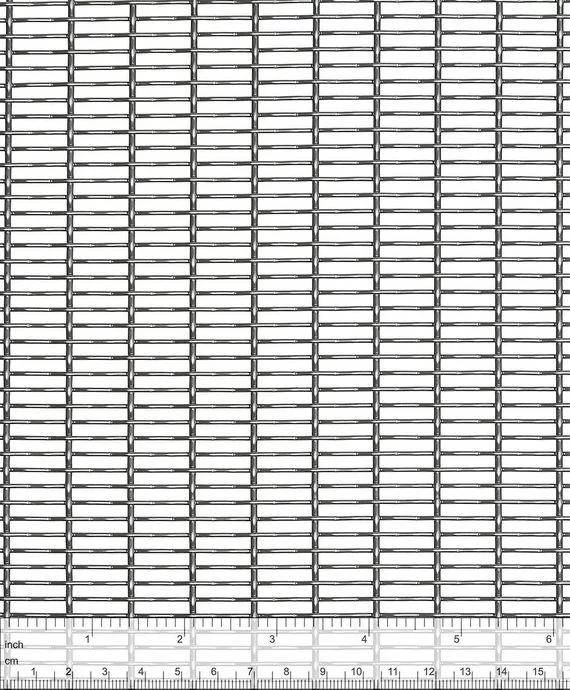

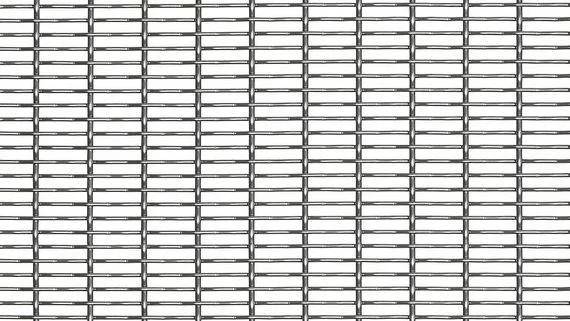

Wire mesh of the type DOKAWELL-MONO convinces with its very own elegance. With the appropriate exposure, punctual light reflections occur on the corrugated wires, creating a glittering surface. Architectural wire meshes with a high open area can also be implemented with this weave type.
Weight: ~ 4.5 kg/m²
Open area: ~ 60%
Main applications: Facade, ceiling & wall, parapet, sun protection

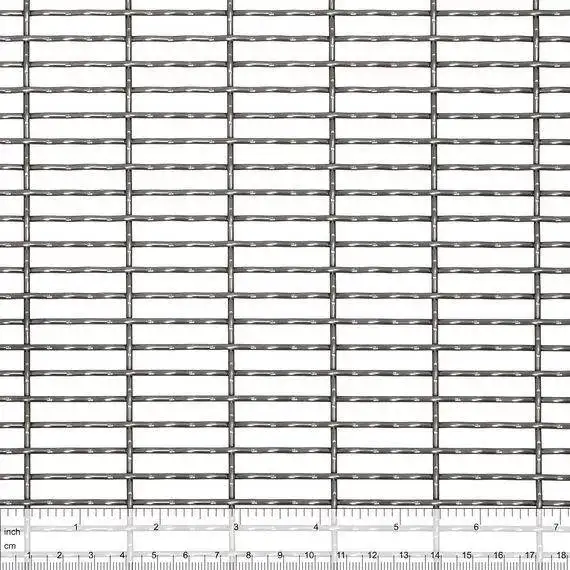

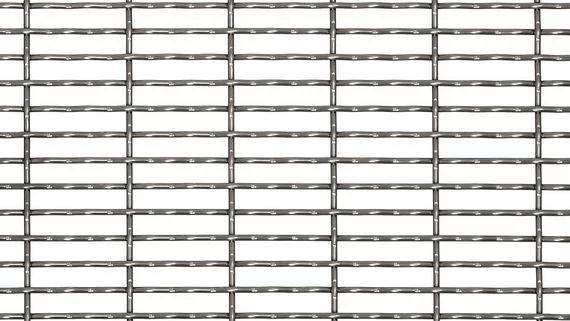

Weight: ~ 4.2 kg/m²
Open area: ~ 70%
Main applications: Facade, ceiling & wall, parapet, sun protection

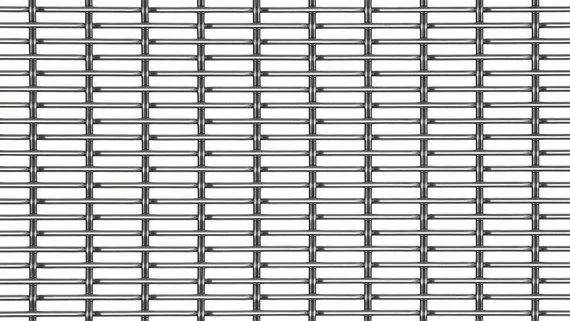

Mesh type EGLA-TWIN is characterised by its smooth surface on one side, which reflects the light homogenously. The mesh type is versatile – and particularly popular as filigree facade cladding as well as for interior design.
Weight: ~ 6.0 kg/m²
Open area: ~ 51%
Main applications: Facade, ceiling & wall, parapet, sun protection

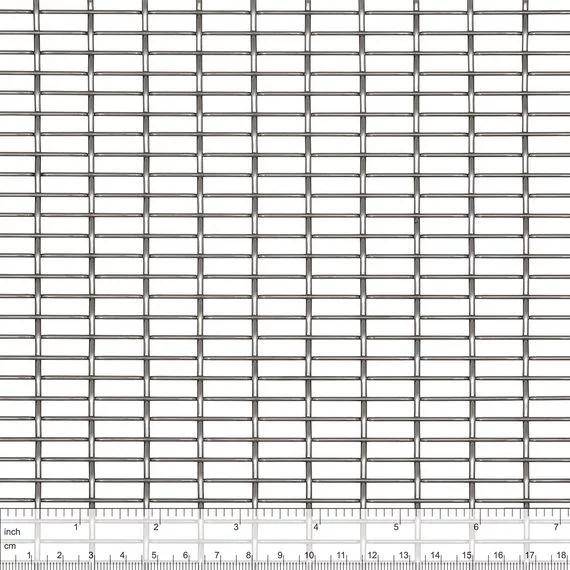

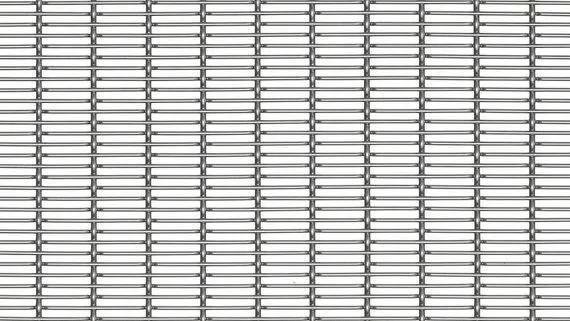

Thanks to its smooth surface, weave type EGLA-MONO has a particularly flat, homogeneous appearance. It is very popular as a rectangular or also as a square mesh for indoor and outdoor use.
Weight: ~ 5.2 kg/m²
Open area: ~ 52%
Main applications: Facade, ceiling & wall, parapet, sun protection

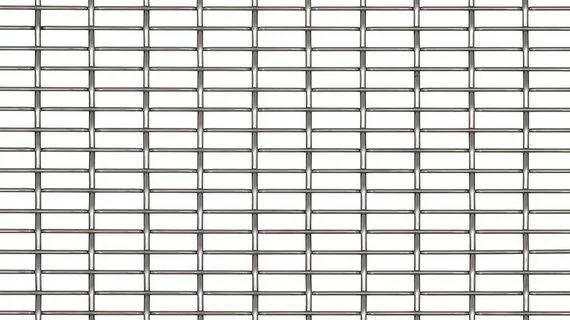

Weight: ~ 3,4 kg/m²
Open area: ~ 69%
Main applications: Facade, ceiling & wall, parapet, sun protection

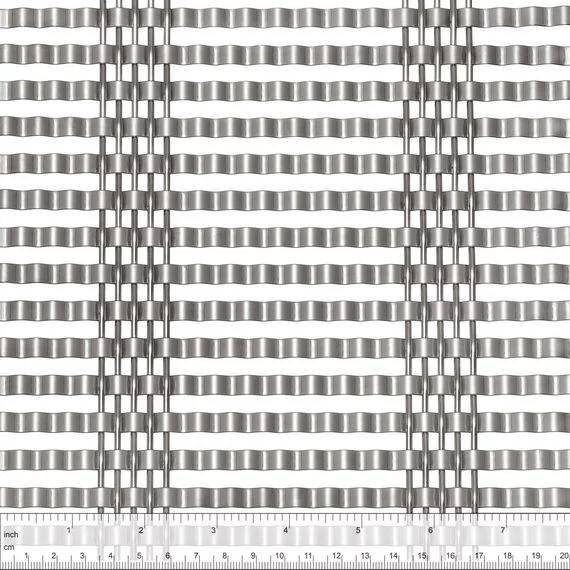

The architectural mesh LARGO-NOVA is characterized by its crimped flat wires and vertical round wires. The wire mesh creates a homogenous appearance with reduced transparency.
Weight: ~ 6.6 kg/m²
Open area: ~ 40%
Main applications: Facade, ceiling & wall, parapet, sun protection

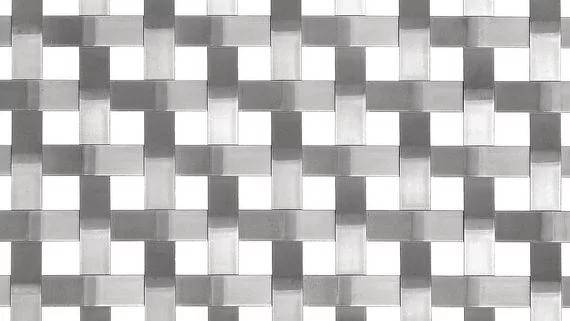

Architectural wire mesh type LARGO-PLENUS consists of interwoven flat wires. These flat wires give rise to a robust wire mesh that is characterised by a significantly lower transparency and a flat sheen compared to other wire mesh types.
Weight: ~ 8.1 kg/m²
Open area: ~ 25%
Main applications: Facade, wall, parapet, sun protection

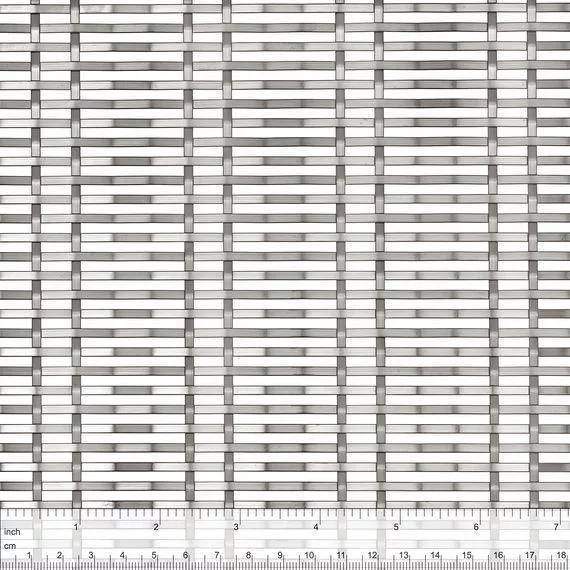

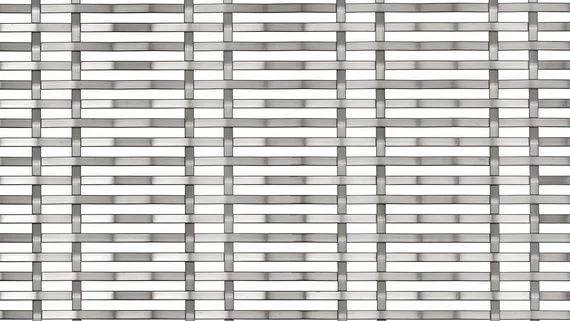

Weight: ~ 7,45 kg/m²
Open area: ~ 43%
Main Application: Facade, ceiling & wall, parapet, sun protection

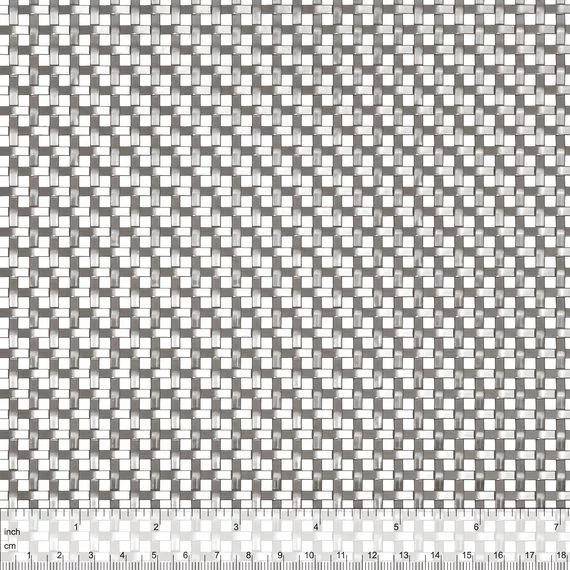

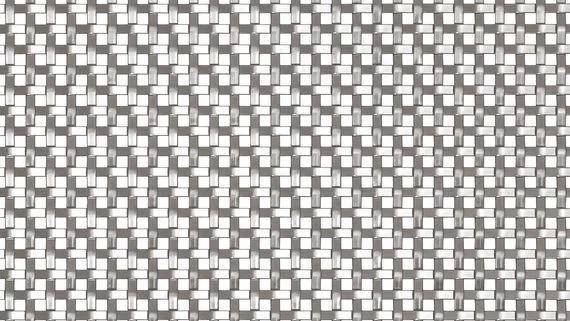

Weight: ~ 7,45 kg/m²
Open area: ~ 28%
Main applications: Facade, parapet, sun protection

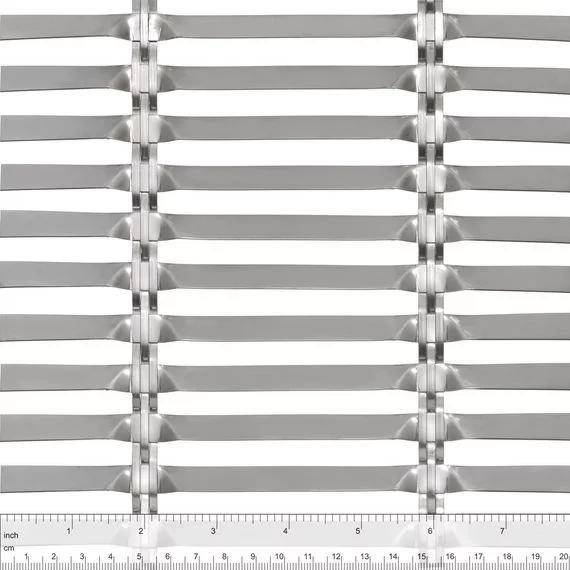

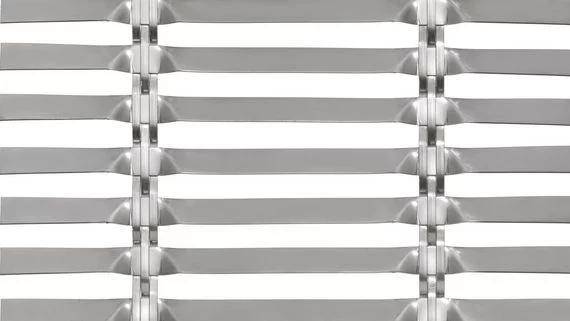

The HAVER Architectural Mesh LARGO-TWIST is characterized by its tilted horizontal flat wires. Depending on the orientation of this mesh type it acts as an effective sun or privacy screen.
Weight: ~ 5.5 kg/m²
Open area viewing angle 90° to mesh: ~ 35%
Open area viewing angle 35° to mesh: ~ 76%
Main applications: Facade, sun protection
