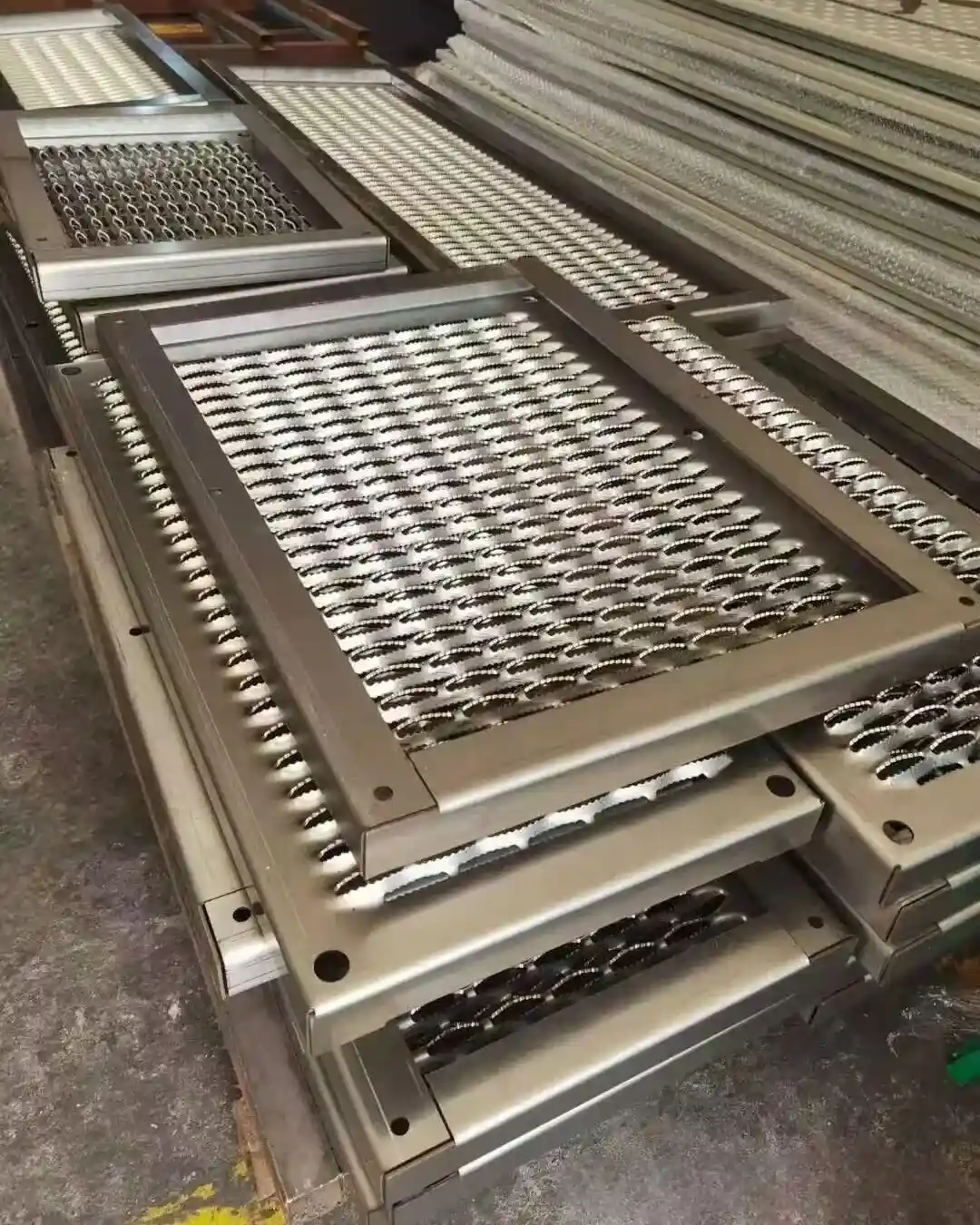

Crocodile-mouth slit-and-lift plate for maximum-grip walkways
Engineered via an precision slit-and-lift punching process forming elongated crocodile-mouth apertures with raised, serrated edges. Delivers multi-directional slip protection, rapid fluid drainage, light transmission, and airflow for extreme industrial environments.
Carbon steel, 304 & 316 stainless, 5052-H32 / 6061-T6 aluminum
Core Technical Specifications
Base material reference: ASTM A1011 · GB/T 3274 · EN 10025-2Configurable grip aperture pitch
High drainage & air permeability
Heavy industrial load bearing
Custom shearing & nosing available
Engineered Field Applications
Field-tested safety solutions across harsh processing and traffic environments
Mezzanine & Catwalk Flooring
Elevated catwalks and industrial maintenance platforms demanding continuous multidirectional grip in oily conditions.
Ventilated Machine Guarding
Rugged barrier panels maintaining continuous heat dissipation, visibility, and debris containment.
Loading Ramps & Docks
Heavy transit inclines and truck bay ramps requiring enduring anti-slip surface endurance under equipment wheels.
Outdoor Drainage Platforms
Self-clearing diamond teeth allow slush, mud, snow, and industrial liquids to fall through cleanly.
Engineering Data & Standards
Plate Specifications
Physical parameters, hole geometries, base-material reference grades, and coating options for crocodile-mouth slit-and-lift safety plate.
Thickness & Gauge Schedule
Calibrated sheet and plate gauges engineered for light pedestrian walkways up to severe industrial traffic loads.
Engineered Material Options
Structural carbon steel, stainless steel and aluminum alloy options.
Opening & Grip Geometry
Precision serrated crocodile-mouth perforation profile engineered for fluid drainage and omnidirectional traction.
Standard Sheet Sizes
Standard sheet sizes may be available; availability is confirmed at quotation.
Weight & Density Index
Structural weight ratios calculated after perforation relief, aiding structural subframe load engineering.
Protective Surface Finishes
Industrial finishing regimes delivering lasting barrier resistance in marine, coastal, and chemical processing zones.
Applicable standards
Listed as reference standards only, never certificates held by MutualMetal. The applicable standard, material grade, and documentation are confirmed per product and project.
Crocodile-mouth anti-slip plates are punched and formed profile sheets. They are not hot-rolled checkered plate, so GB/T 33974, ASTM A786, and DIN 59220 do not define them. There is no direct product standard; tooth profile, opening geometry, sheet thickness, and tolerances are confirmed per project and producing factory. Base-material and protective coating standards are referenced above, and slip resistance is confirmed per project.
Product standards
Crocodile-mouth anti-slip plates are punched and formed profile sheets. They are not hot-rolled checkered plate, so GB/T 33974, ASTM A786, and DIN 59220 do not define them. There is no direct product standard; tooth profile, opening geometry, sheet thickness, and tolerances are confirmed per project and producing factory. Base-material and protective coating standards are referenced above, and slip resistance is confirmed per project.
Technical standards
- GB/T 3274Hot-rolled carbon structural and low-alloy steel plate and strip
- GB/T 700Carbon structural steel
- GB/T 4237Hot-rolled stainless steel plate and strip
- GB/T 3880Wrought aluminium and aluminium alloy plate and strip
- GB/T 13912Hot-dip galvanized coatings on metal products — technical requirements and test methods
- ASTM A1011Hot-rolled carbon steel sheet and strip
- ASTM A1008Cold-rolled carbon steel sheet
- ASTM A36Structural carbon steel, bar and plate material
- ASTM A240/A240MChromium and chromium-nickel stainless steel plate, sheet, and strip
- ASTM B209/B209MAluminum and aluminum-alloy flat sheet, coiled sheet, and plate
- ASTM A123/A123MZinc (hot-dip galvanized) coatings on iron and steel products
- ISO 1461Hot-dip galvanized coatings on fabricated iron and steel articles — specifications and test methods
- EN 10025-2Non-alloy structural steels — technical delivery conditions
- EN 10088-2Stainless steels — flat products for general purposes
- EN 485-2Aluminium and aluminium alloys — sheet, strip and plate, mechanical properties
Need custom slit dimensions or specialized crocodile-mouth patterns?
Custom hole pitch, bending and flanging, and heavy-duty patterns to your drawings; material documentation can be requested at quotation.
