Perforated Anti-Slip Surfaces

Fish-eye pattern perforated plate for anti-slip drainage flooring

Engineered with precisely punched and raised cone-shaped apertures that elevate above the metal surface, creating bi-directional traction, rapid liquid drainage, and passive airflow. Formed in heavy-duty carbon steel, 304/316 stainless steel, and structural aluminum.

Engineered Substrates

Carbon steel, 304 & 316 stainless, 5052-H32 / 6061-T6 aluminum

Request a custom quote View technical specs

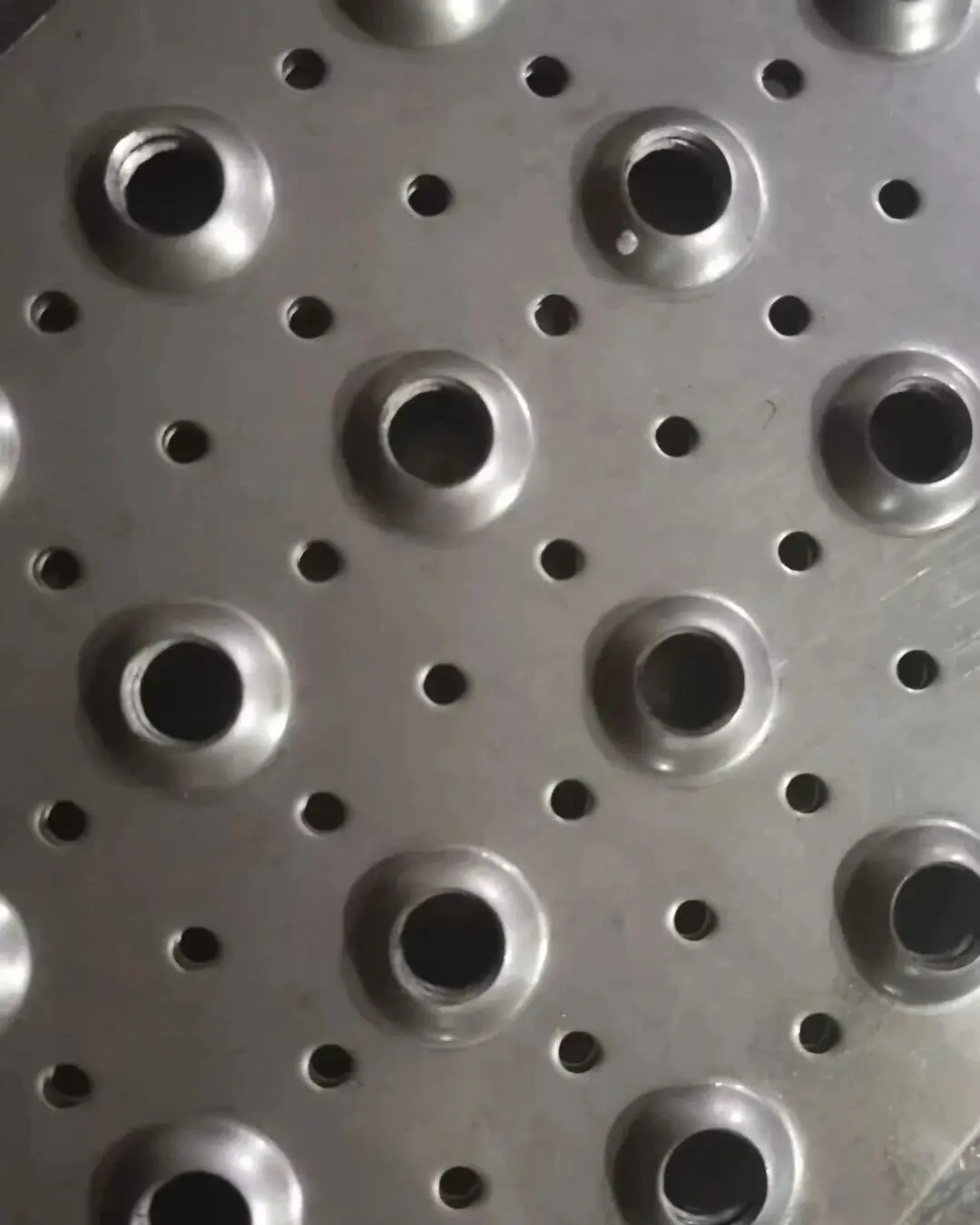

Fish-eye perforated metal plate showcasing raised cone punch openings and drainage apertures

DETAIL MACRO

Perforated Anti-Slip Surfaces — Raised conical punch with drainage voids

Hole Diameter Range

6mm – 12mm

Raised cone opening diameter

Open Area Ratio

25% – 40%

High-volume drainage rate

Gauge Thickness

3/16" – 3/8"

4.8mm to 9.5mm heavy-duty sheet

Standard Sheet Dimensions

48" × 96" / 48" × 120"

Custom cut-to-length panels

Key Structural Applications

View all applications

Stair Tread Nosing

Raised traction edges eliminate slipping in industrial stair towers exposed to oil, grease, and rain.

View case spec

Platform Walkways

Continuous drainage and airflow underfoot for catwalks, chemical platforms, and processing plants.

View case spec

Drainage Trench Covers

High load-bearing capacity with rapid washdown evacuation for wash bays and brewery trenches.

View case spec

Truck & Trailer Flooring

Durable slip-resistant deck surface for flatbeds, tail lifts, tanker walkways, and transport ramps.

View case spec

Engineering Data & Tolerances

Checkered & Safety Plate Specifications

Critical dimensions, metallurgical grades, and geometry standards designed for rapid engineering specification and custom manufacturing.

All specifications Request quote

Gauge & Depth

Thickness & Gauge Range

Standardized structural thicknesses engineered for light foot traffic up to heavy vehicular loads.

Light Duty1.5 mm – 2.5 mm (16 – 12 Ga)

Standard Commercial3.0 mm – 4.5 mm (1/8" – 3/16")

Heavy Industrial5.0 mm – 8.0 mm (7/32" – 5/16")

Metallurgy

Available Materials & Alloys

Base material grades can reference ASTM, GB and EN material standards; confirmed per project and producing factory.

Carbon SteelASTM A36 · GB/T 700 (Q235B) · EN 10025-2 (S235JR) (comparable, not identical)

Stainless SteelASTM A240 (304/304L, 316/316L) · GB/T 4237 · EN 10088-2

Aluminum AlloyASTM B209/B209M (6061-T6, 3003-H22) · GB/T 3880 · EN 485-2

Surface Pattern

Fish-Eye Hole Geometry

High-traction raised perforated profiles ensuring multi-directional slip protection and drainage.

Hole Diameter & RimØ 14 – 25 mm / 4 – 6 mm height

Pitch & Spacing40 – 60 mm staggered centres

Open Free Area18% – 35% hydraulic flow

Sheet Sizes

Standard Sheet Sizes

Standard sheet sizes may be available; availability is confirmed at quotation.

Imperial Formats3' x 10', 4' x 8', 4' x 10'

Metric Formats1000 x 2000 mm, 1250 x 2500 mm

TolerancesTolerances are confirmed for each project and producing factory.

Structural Load

Weight & Density Index

Calculated theoretical and net weight indices assisting engineering span and frame calculations.

2.0 mm SteelApprox. 13.8 – 15.2 kg/m²

3.0 mm SteelApprox. 21.5 – 23.5 kg/m²

Aluminum Weight FactorApprox. 35% of carbon steel

Corrosion Defense

Protective Surface Finishes

Comprehensive surface engineering providing maximum service life in corrosive environments.

Hot-Dip GalvanizedASTM A123/A123M · GB/T 13912 · ISO 1461 (typical 610 g/m², confirmed per project)

Mill & PickledAcid-pickled, passivated mill finish

Coatings & AnodizingPowder coat, PVDF, clear anodized

Standards ReferenceCheckered Plate

Applicable standards

Listed as reference standards only, never certificates held by MutualMetal. The applicable standard, material grade, and documentation are confirmed per product and project.

Fish-eye anti-slip plates are punched and formed profile sheets with no direct product standard; profile dimensions, hole and dimple patterns, sheet thickness, and tolerances are confirmed per project and producing factory. Base-material and protective coating standards are referenced, and slip resistance is confirmed per project.

Product standards

Technical standards

Materials · Coatings · Testing · Safety

GBChinese National Standards (GB)

GB/T 3274Hot-rolled carbon structural and low-alloy steel plate and strip
GB/T 700Carbon structural steel
GB/T 4237Hot-rolled stainless steel plate and strip
GB/T 3880Wrought aluminium and aluminium alloy plate and strip
GB/T 13912Hot-dip galvanized coatings on metal products — technical requirements and test methods

ASTMASTM International

ASTM A1011Hot-rolled carbon steel sheet and strip
ASTM A1008Cold-rolled carbon steel sheet
ASTM A36Structural carbon steel, bar and plate material
ASTM A240/A240MChromium and chromium-nickel stainless steel plate, sheet, and strip
ASTM B209/B209MAluminum and aluminum-alloy flat sheet, coiled sheet, and plate
ASTM A123/A123MZinc (hot-dip galvanized) coatings on iron and steel products

ISOInternational Organization for Standardization

ISO 1461Hot-dip galvanized coatings on fabricated iron and steel articles — specifications and test methods

ENEuropean Standards (EN / DIN)

EN 10025-2Non-alloy structural steels — technical delivery conditions
EN 10088-2Stainless steels — flat products for general purposes
EN 485-2Aluminium and aluminium alloys — sheet, strip and plate, mechanical properties

Need an in-depth cross-system comparison of GB, ASTM, ANSI, ISO, and EN specifications?

Compare all standards on the Standards Map
