Wire Space Cloth Details
Explore the technical intricacies of our Wire Space Cloth. Manufactured in Anping, Hebei, our product adheres to strict quality standards. Key features include customizable dimensions, material options like stainless steel and galvanized steel, and precise mesh configurations. Ideal for aerospace, construction, and environmental applications. Contact us for custom specifications.

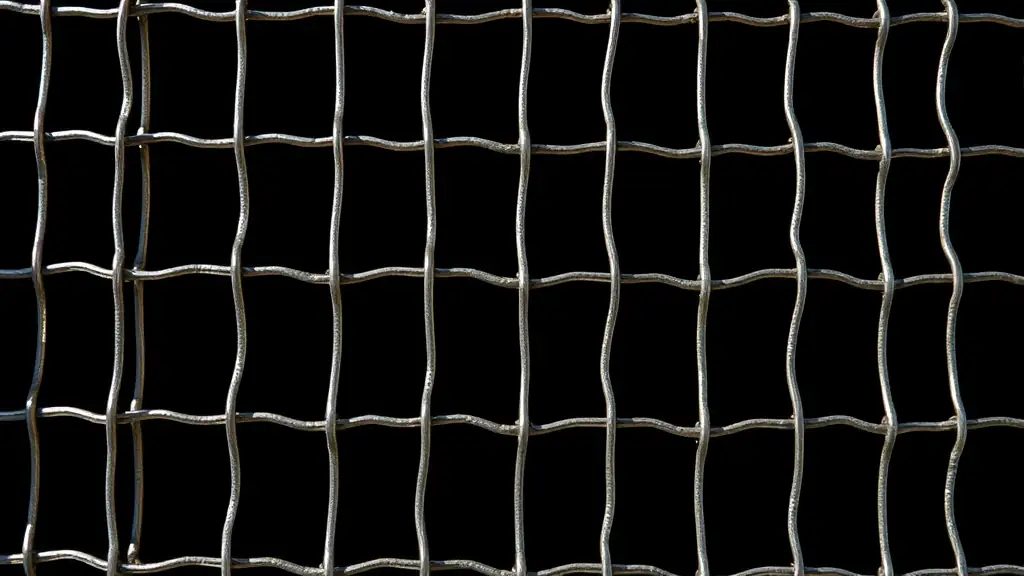

Wire space cloth is pre-crimped wire cloth known for its extremely accurate openings and its weave that is substantially tighter than plain weave. Space cloth wire mesh derives its name from the openings between the wires that are referred to as “spaces.” As such, a wire space cloth listed as 3/8-inch space, .063 wire means the wires are 3/8” apart and measure .063” in diameter.
| Clear Opening or Space | Diameter of Wire | Open Area % | Weight per Sq Ft |
|---|---|---|---|
| 1 1/8 x 1 1/8 | .135" | 79.70% | 0.97 |
| 1 1/8 x 1 1/8 | .148" | 78.10% | 1.11 |
| 1 1/8 x 1 1/8 | .162" | 76.40% | 1.32 |
| 1 1/8 x 1 1/8 | .177" | 74.70% | 1.55 |
| 1 1/8 x 1 1/8 | .192" | 73.00% | 1.81 |
| 1 1/8 x 1 1/8 | .207" | 71.30% | 2.08 |
| 1 1/8 x 1 1/8 | .225" | 69.40% | 2.43 |
| 1 1/8 x 1 1/8 | 1/4" | 66.90% | 2.96 |
| 1 1/8 x 1 1/8 | 5/16 | 61.20% | 4.45 |
| 1 1/8 x 1 1/8 | 3/8" | 56.30% | 6.19 |
| 1 1/8 x 1 1/8 | 7/16" | 51.80% | 8.14 |
| 1 1/8 x 1 1/8 | 1/2" | 47.90% | 10.30 |
| 1 3/8 x 1 3/8 | .162" | 80.00% | 1.10 |
| 1 3/8 x 1 3/8 | .177" | 78.50% | 1.30 |
| 1 3/8 x 1 3/8 | .192" | 77.00% | 1.52 |
| 1 3/8 x 1 3/8 | .207" | 75.60% | 75.6 |
| 1 3/8 x 1 3/8 | .225" | 73.90% | 2.04 |
| 1 3/8 x 1 3/8 | 1/4" | 71.60% | 2.49 |
| 1 3/8 x 1 3/8 | 5/16" | 66.40% | 3.77 |
| 1 3/8 x 1 3/8 | 3/8" | 61.70% | 5.26 |
| 1 3/8 x 1 3/8 | 7/16" | 57.60% | 6.95 |
| 1 3/8 x 1 3/8 | 1/2" | 53.80% | 8.83 |
| 1 x 1 | .120" | 79.70% | 0.83 |
| 1 x 1 | .135" | 77.60% | 1.04 |
| 1 x 1 | .148" | 75.90% | 1.23 |
| 1 x 1 | .162" | 74.00% | 1.46 |
| 1 x 1 | .177" | 72.20% | 1.72 |
| 1 x 1 | .192" | 70.4% | 2.01 |
| 1 x 1 | .207" | 68.60% | 2.31 |
| 1 x 1 | .225" | 66.60% | 2.69 |
| 1 x 1 | 1/4" | 64.00% | 3.26 |
| 1 x 1 | 5/16" | 58.00% | 4.90 |
| 1 x 1 | 3/8" | 52.90% | 6.79 |
| 1 x 1 | 7/16" | 48.40% | 8.91 |
| 1 x 1 | 1/2" | 44.40% | 11.25 |
| 1/2 x 1/2 | .105" | 68.30% | 1.18 |
| 1/2 x 1/2 | .120" | 65.00% | 1.51 |
| 1/2 x 1/2 | .135" | 62.00% | 1.88 |
| 1/2 x 1/2 | .148" | 59.50% | 2.22 |
| 1/2 x 1/2 | .162" | 57.10% | 2.61 |
| 1/2 x 1/2 | .177" | 54.50% | 3.06 |
| 1/2 x 1/2 | .192" | 52.20% | 3.54 |
| 1/2 x 1/2 | .207" | 49.80% | 4.04 |
| 1/2 x 1/2 | .225" | 47.50% | 4.68 |
| 1/2 x 1/2 | 1/4" | 44.40% | 5.62 |
| 1/2 x 1/2 | 5/16" | 37.90% | 8.24 |
| 1/2 x 1/2 | 3/8" | 32.70% | 11.19 |
| 1/4 x 1/4 | .072" | 60.30% | 1.06 |
| 1/4 x 1/4 | .080" | 57.40% | 1.28 |
| 1/4 x 1/4 | .092" | 53.40% | 1.64 |
| 1/4 x 1/4 | .105" | 49.60% | 2.07 |
| 1/4 x 1/4 | .120" | 45.60% | 2.62 |
| 1/4 x 1/4 | .135" | 42.20% | 3.21 |
| 1/4 x 1/4 | .148" | 39.40% | 3.76 |
| 1/4 x 1/4 | .162" | 36.80% | 4.38 |
| 1/4 x 1/4 | .177" | 34.30% | 5.08 |
| 1/4 x 1/4 | .192" | 32.00% | 5.82 |
| 1/4 x 1/4 | .207" | 29.90% | 6.59 |
| 1/4 x 1/4 | .225" | 27.70% | 7.55 |
| 1/4 x 1/4 | .250" | 25.00% | 8.50 |
| 1/8 x 1/8 | .041" | 56.70% | 0.67 |
| 1/8 x 1/8 | .047" | 52.80% | 0.85 |
| 1/8 x 1/8 | .054" | 48.80% | 1.09 |
| 1/8 x 1/8 | .063" | 44.20% | 1.43 |
| 1/8 x 1/8 | .072" | 40.30% | 1.79 |
| 1/8 x 1/8 | .080" | 37.20% | 2.15 |
| 1/8 x 1/8 | .105" | 29.50% | 3.37 |
| 1/8 x 1/8 | .120" | 26.00% | 4.19 |
| 1/8 x 1/8 | .092" | 33.20% | 2.71 |
| 1¼ x 1¼ | .148" | 79.90% | 1.01 |
| 1¼ x 1¼ | .162" | 78.40% | 1.20 |
| 1¼ x 1¼ | .177" | 76.70% | 1.42 |
| 1¼ x 1¼ | .192" | 75.10% | 1.65 |
| 1¼ x 1¼ | .207" | 73.60% | 1.90 |
| 1¼ x 1¼ | .225" | 71.80% | 2.22 |
| 1¼ x 1¼ | 1/4" | 69.40% | 2.70 |
| 1¼ x 1¼ | 5/16" | 64.00% | 4.08 |
| 1¼ x 1¼ | 3/8" | 59.20% | 5.69 |
| 1¼ x 1¼ | 7/16" | 54.80% | 7.50 |
| 1¼ x 1¼ | 1/2" | 51.00% | 9.51 |
| 1½ x 1½ | .177" | 80.00% | 1.20 |
| 1½ x 1½ | .192" | 78.60% | 1.40 |
| 1½ x 1½ | .207" | 77.20% | 1.62 |
| 1½ x 1½ | .225" | 75.60% | 1.89 |
| 1½ x 1½ | 1/4" | 73.40% | 2.31 |
| 1½ x 1½ | 5/16" | 68.50% | 3.50 |
| 1½ x 1½ | 3/8" | 64.00% | 4.90 |
| 1½ x 1½ | 7/16" | 59.90% | 6.48 |
| 1½ x 1½ | 1/2" | 56.30% | 8.25 |
| 1¾ x 1¾ | .177" | 82.50% | 1.04 |
| 1¾ x 1¾ | .192" | 81.20% | 1.22 |
| 1¾ x 1¾ | .207" | 80.00% | 1.41 |
| 1¾ x 1¾ | .225" | 78.50% | 1.65 |
| 1¾ x 1¾ | 1/4" | 76.60% | 2.02 |
| 1¾ x 1¾ | 5/16" | 71.90% | 3.07 |
| 1¾ x 1¾ | 3/8" | 67.80% | 4.30 |
| 1¾ x 1¾ | 7/16" | 64.00% | 5.71 |
| 1¾ x 1¾ | 1/2" | 60.50% | 7.29 |
| 2 x 2 | .192" | 83.20% | 1.08 |
| 2 x 2 | .207" | 82.10% | 1.25 |
| 2 x 2 | .225" | 80.8 | 1.46 |
| 2 x 2 | 1/4" | 79.00% | 1.79 |
| 2 x 2 | 5/16" | 74.80% | 2.73 |
| 2 x 2 | 3/8" | 70.90% | 3.84 |
| 2 x 2 | 7/16" | 67.30% | 5.11 |
| 2 x 2 | 1/2" | 64.00% | 6.53 |
| 2¼ x 2¼ | .207" | 83.90% | 1.12 |
| 2¼ x 2¼ | .225" | 82.60% | 1.31 |
| 2¼ x 2¼ | 1/4" | 81.00% | 1.61 |
| 2¼ x 2¼ | 5/16" | 77.10% | 2.46 |
| 2¼ x 2¼ | 3/8" | 73.40% | 3.46 |
| 2¼ x 2¼ | 7/16" | 70.10% | 4.62 |
| 2¼ x 2¼ | 1/2" | 66.90% | 5.91 |
| 2½ x 2½ | 1/4" | 82.60% | 1.46 |
| 2½ x 2½ | 5/16" | 79.00% | 2.24 |
| 2½ x 2½ | 3/8" | 75.60% | 3.16 |
| 2½ x 2½ | 7/16" | 72.40% | 4.22 |
| 2½ x 2½ | 1/2" | 69.40% | 5.41 |
| 2¾ x 2¾ | 1/4" | 84.00% | 1.34 |
| 2¾ x 2¾ | 5/16" | 80.60% | 2.05 |
| 2¾ x 2¾ | 3/8" | 77.40% | 2.90 |
| 2¾ x 2¾ | 7/16" | 74.40% | 3.88 |
| 2¾ x 2¾ | 1/2" | 71.60% | 4.98 |
| 3 x 3 | 1/4" | 85.10% | 1.23 |
| 3 x 3 | 5/16" | 82.00% | 1.90 |
| 3 x 3 | 3/8" | 79.00% | 2.68 |
| 3 x 3 | 7/16" | 76.20% | 3.59 |
| 3 x 3 | 1/2" | 73.50% | 4.62 |
| 3/4 x 3/4 | .120" | 74.30% | 1.07 |
| 3/4 x 3/4 | .135" | 71.80% | 1.33 |
| 3/4 x 3/4 | .148" | 69.80% | 1.58 |
| 3/4 x 3/4 | .162" | 67.60% | 1.87 |
| 3/4 x 3/4 | .177" | 65.50% | 2.20 |
| 3/4 x 3/4 | .192" | 63.40% | 2.56 |
| 3/4 x 3/4 | .207" | 61.40% | 2.93 |
| 3/4 x 3/4 | .2215" | 59.20% | 3.41 |
| 3/4 x 3/4 | 1/4" | 56.30% | 4.12 |
| 3/4 x 3/4 | 5/16" | 49.80% | 6.13 |
| 3/4 x 3/4 | 3/8" | 44.40% | 8.44 |
| 3/8 x 3/8 | .092" | 64.50% | 1.18 |
| 3/8 x 3/8 | .105" | 61.00% | 1.51 |
| 3/8 x 3/8 | .120" | 57.40% | 1.92 |
| 3/8 x 3/8 | .135" | 54.10% | 2.37 |
| 3/8 x 3/8 | .148" | 51.40% | 2.79 |
| 3/8 x 3/8 | .162" | 48.70% | 48.7 |
| 3/8 x 3/8 | .177" | 46.10% | 3.82 |
| 3/8 x 3/8 | .192" | 43.80% | 4.39 |
| 3/8 x 3/8 | .207" | 41.50% | 5.00 |
| 3/8 x 3/8 | .225" | 39.00% | 5.77 |
| 3/8 x 3/8 | 1/4" | 36.00% | 6.89 |
| 3/8 x 3/8 | 5/16" | 29.70% | 9.99 |
| 3/16 x 3/16 | .072" | 52.20% | 1.33 |
| 3/16 x 3/16 | .080" | 49.10% | 1.60 |
| 3/16 x 3/16 | .092" | 45.10% | 2.04 |
| 3/16 x 3/16 | .105" | 41.10% | 2.56 |
| 3/16 x 3/16 | .120" | 37.20% | 3.22 |
| 3/16 x 3/16 | .135" | 33.80% | 3.92 |
| 3/16 x 3/16 | .148" | 31.30% | 4.57 |
| 3/16 x 3/16 | .162" | 28.80% | 5.30 |
| 3/16 x 3/16 | .177" | 26.50% | 6.12 |
| 3/16 x 3/16 | .192" | 94.40% | 6.97 |
| 3/16 x 3/16 | .063" | 56.00% | 1.05 |
| 3¼ x 3¼ | 1/4" | 86.10% | 1.15 |
| 3¼ x 3¼ | 5/16" | 83.10% | 1.76 |
| 3¼ x 3¼ | 3/8" | 80.40% | 2.50 |
| 3¼ x 3¼ | 7/16" | 77.60% | 3.35 |
| 3¼ x 3¼ | 1/2" | 75.00% | 4.31 |
| 3½ x 3½ | 1/4" | 87.10% | 1.07 |
| 3½ x 3½ | 5/16" | 84.30% | 1.65 |
| 3½ x 3½ | 3/8" | 81.60% | 2.33 |
| 3½ x 3½ | 7/16" | 79.00% | 2.13 |
| 3½ x 3½ | 1/2" | 76.60% | 4.03 |
| 3¾ x 3¾ | 1/4" | 87.90% | 1.00 |
| 3¾ x 3¾ | 5/16" | 85.20% | 1.54 |
| 3¾ x 3¾ | 3/8" | 81.60% | 2.19 |
| 3¾ x 3¾ | 7/16" | 80.10% | 2.94 |
| 3¾ x 3¾ | 1/2" | 77.90% | 3.79 |
| 4 x 4 | 1/4" | 88.60% | 0.94 |
| 4 x 4 | 5/16" | 86.00% | 1.45 |
| 4 x 4 | 3/8" | 83.60% | 2.07 |
| 4 x 4 | 7/16" | 81.30% | 2.77 |
| 4 x 4 | 1/2" | 79.00% | 3.58 |
| 5/8 x 5/8 | .105" | 73.40% | 0.98 |
| 5/8 x 5/8 | .120" | 70.30% | 1.25 |
| 5/8 x 5/8 | .135" | 67.60% | 1.56 |
| 5/8 x 5/8 | .148" | 65.40% | 1.85 |
| 5/8 x 5/8 | .162" | 63.10% | 2.18 |
| 5/8 x 5/8 | .177" | 60.70% | 2.56 |
| 5/8 x 5/8 | .192" | 58.50% | 2.97 |
| 5/8 x 5/8 | .207" | 56.40% | 3.40 |
| 5/8 x 5/8 | .225" | 54.00% | 3.94 |
| 5/8 x 5/8 | 1/4" | 51.00% | 4.76 |
| 5/8 x 5/8 | 5/16" | 44.40% | 7.03 |
| 5/8 x 5/8 | 3/8" | 39.10% | 9.61 |
| 5/16 x 5/16 | .080" | 63.40% | 1.07 |
| 5/16 x 5/16 | .092" | 59.60% | 1.37 |
| 5/16 x 5/16 | .120" | 52.20% | 2.21 |
| 5/16 x 5/16 | .135" | 48.80% | 2.72 |
| 5/16 x 5/16 | .148" | 46.00% | 3.20 |
| 5/16 x 5/16 | .162" | 43.40% | 3.74 |
| 5/16 x 5/16 | .177" | 40.80% | 4.36 |
| 5/16 x 5/16 | .192" | 38.40% | 5.00 |
| 5/16 x 5/16 | .207" | 36.20% | 5.68 |
| 5/16 x 5/16 | .225" | 33.80% | 6.53 |
| 5/16 x 5/16 | 1/4" | 30.90% | 7.78 |
| 5/16 x 5/16 | .105" | 56.00% | 1.74 |
| 7/8 x 7/8 | .148" | 73.50% | 1.38 |
| 7/8 x 7/8 | .162" | 71.20% | 1.64 |
| 7/8 x 7/8 | .192" | 67.20% | 2.25 |
| 7/8 x 7/8 | .207" | 65.30% | 2.58 |
| 7/8 x 7/8 | .225" | 63.30% | 3.01 |
| 7/8 x 7/8 | 1/4" | 60.50% | 3.64 |
| 7/8 x 7/8 | 5/16" | 54.30% | 5.44 |
| 7/8 x 7/8 | 3/8" | 49.00% | 7.52 |
| 7/8 x 7/8 | 7/16" | 44.40% | 9.84 |
| 7/8 x 7/8 | .177" | 69.20% | 1.93 |
| 7/16 x 7/16 | .120" | 61.50% | 1.69 |
| 7/16 x 7/16 | .135" | 58.40% | 2.09 |
| 7/16 x 7/16 | .148" | 55.80% | 2.47 |
| 7/16 x 7/16 | .162" | 53.20% | 2.90 |
| 7/16 x 7/16 | .177" | 50.70% | 3.40 |
| 7/16 x 7/16 | .192" | 48.30% | 3.92 |
| 7/16 x 7/16 | .207" | 46.00% | 4.47 |
| 7/16 x 7/16 | .225" | 43.60% | 5.16 |
| 7/16 x 7/16 | 1/4" | 40.50% | 6.19 |
| 7/16 x 7/16 | 5/16" | 34.00% | 9.03 |
| 7/16 x 7/16 | .105" | 65.00% | 1.33 |
| Clear Space Opening | Light | Medium | Heavy |
|---|---|---|---|
| 1/16" (0.063") | #18 (0.047") | ||
| 3/32" (0.094") | #18 (0.047") | #16 (0.063") | |
| 1/8" (0.125") | #16 (0.063") | #14 (0.080") | #12 (0.105") |
| 5/32" (0.156") | #16 (0.063") | #14 (0.080") | #12 (0.105") |
| 3/16" (0.188") | #16 (0.063") | #14 (0.080") | #11 (0.120") |
| 7/32" (0.219" | #14 (0.080") | #12 (0.105") | #10 (0.135") |
| 1/4" (0.250") | #12 (0.105") | #11 (0.120") | #10 (0.135") |
| 5/16" (0.313") | #12 (0.105") | #10 (0.135") | #9 (0.148") |
| 3/8" (0.375") | #12 (0.105") | #10 (0.135") | #8 (0.162") |
| 7/16" (0.438") | #10 (0.135") | #8 (0.162") | #6 (0.192") |
| 1/2" (0.500") | #10 (0.135") | #8 (0.162") | #6 (0.192") |
| 9/16" (0.563") | #10 (0.135") | #8 (0.162") | #6 (0.192") |
| 5/8" (0.625") | #8 (0.162") | #6 (0.192") | #4 (0.225") |
| 3/4" (0.750") | #6 (0.192") | #3 (0.244") | 5/16 (0.313") |
| 7/8" (0.875") | #6 (0.192") | #3 (0.244") | 5/16 (0.313") |
| 1" (1.000") | #6 (0.192") | #3 (0.244") | 5/16 (0.313") |
| 1-1/8" (1.125") | #3 (0.244") | 5/16 (0.313") | 3/8 (0.375") |
| 1-1/4" (1.250") | #3 (0.244") | 5/16 (0.313") | 3/8 (0.375") |
| 1-3/8" (1.375") | #3 (0.244") | 5/16 (0.313") | 3/8 (0.375") |
| 1-1/2" (1.500") | 5/16 (0.313") | 3/8 (0.375") | 1/2 (0.500") |
| 1-5/8" (1.625") | 5/16 (0.313") | 3/8 (0.375") | 1/2 (0.500") |
| 1-3/4" (1.750") | 5/16 (0.313") | 3/8 (0.375") | 1/2 (0.500") |
| 2" (2.000") | 5/16 (0.313") | 3/8 (0.375") | 1/2 (0.500") |
| 2-1/4" (2.250") | 5/16 (0.313") | 3/8 (0.375") | 1/2 (0.500") |
| 2-1/2" (2.500") | 3/8 (0.375") | 1/2 (0.500") | 5/8 (0.625") |
| 3" (3.000") | 3/8 (0.375") | 1/2 (0.500") | 5/8 (0.625") |
| 3-1/2" (3.500") | 3/8 (0.375") | 1/2 (0.500") | 5/8 (0.625") |
| 4" (4.000") | 1/2 (0.500") | 5/8 (0.625") | 3/4 (0.750") |
| 5" (5.000") | 1/2 (0.500") | 5/8 (0.625") | 3/4 (0.750") |
| 6" (6.000") | 1/2 (0.500") | 5/8 (0.625") | 3/4 (0.750") |

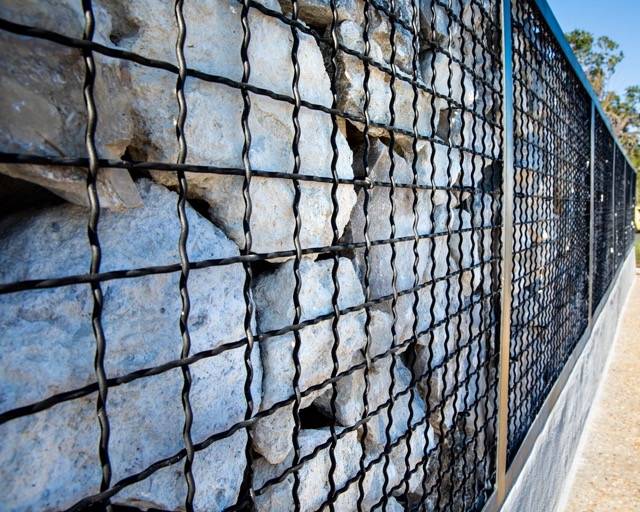

Space cloth wire mesh is very useful in various industries and businesses. It’s commonly used for screening materials like gravel, sand, and aggregates, thanks to its larger openings. This helps with accurately sizing, washing, and sorting these materials. Square opening wire cloth is often used in food processing for items like onions, pasta, nuts, corn, and cucumbers.
