Product Overview

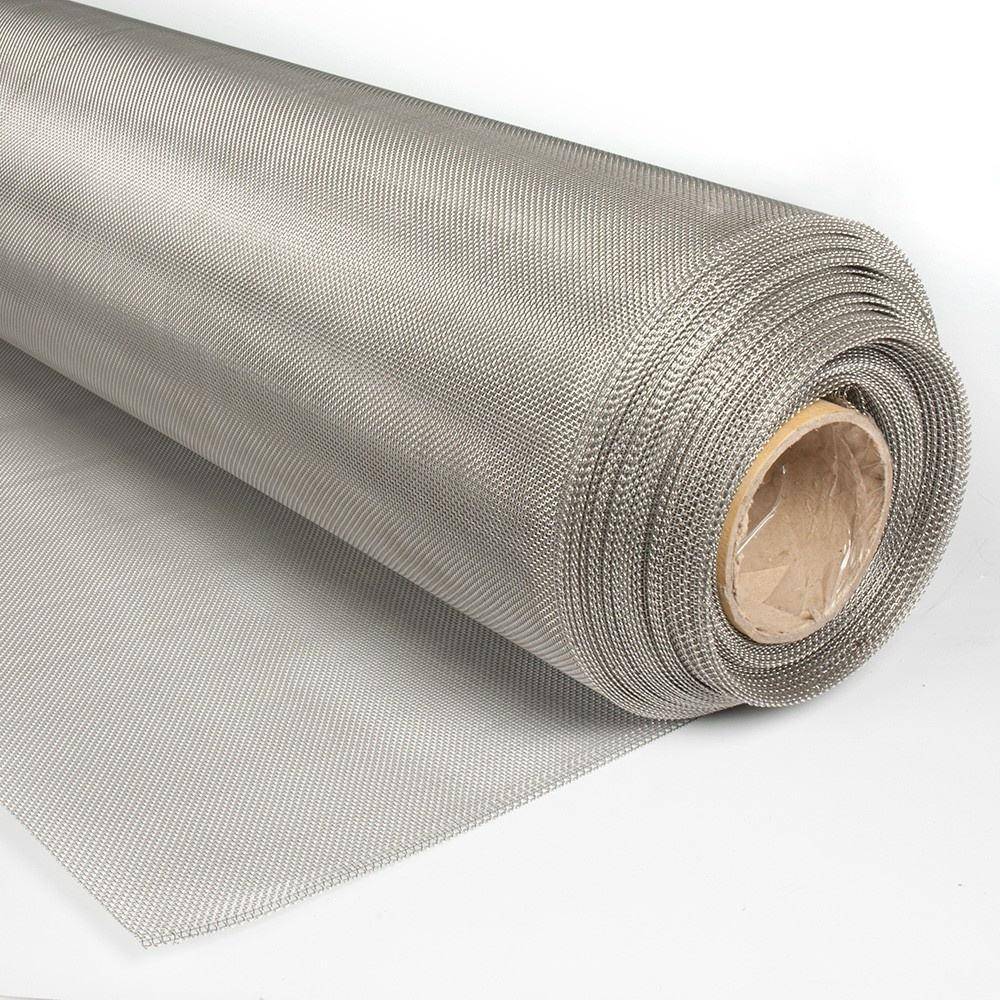

Stainless Steel Plain Weave Wire Mesh for Food Processing is designed for hygienic processing, screening, filtering, and conveying applications in the food and beverage industry. Manufactured from high-quality stainless steel with a precision plain weave structure, it offers uniform mesh openings, excellent corrosion resistance, and easy cleaning. The mesh is widely used in food production lines where product quality, cleanliness, and long service life are essential.

Key Specifications

Material: Stainless Steel 304 and Stainless Steel 316 (304L and 316L available upon request)

Weaving Type: Plain Weave

Mesh Count: Common food processing mesh specifications range from 10–200 mesh depending on screening and filtration requirements.

Wire Diameter: Approximately 0.05–0.80 mm depending on mesh selection.

Opening Size: Approximately 0.08–2.0 mm for ingredient screening and food filtration applications.

Open Area: Approximately 35%–70%, depending on mesh count and wire diameter.

Standard Width: 914 mm, 1000 mm, 1220 mm, and 1500 mm.

Standard Length: 30 m rolls (100 ft) or customized cut lengths.

Surface Finish: Bright

Standards: Manufactured according to ASTM E2016, ISO 9044, ISO 4783, or customer specifications.

Key Features

• Food-grade stainless steel construction for hygienic processing environments.
• Smooth woven surface supports easy cleaning and sanitation.
• Uniform openings provide reliable screening and filtration performance.
• Excellent corrosion resistance against moisture and food processing conditions.
• Suitable for repeated washing and long-term use.
• Maintains dimensional stability during continuous operation.
• Available in custom mesh sizes and fabricated food processing components.
• Compatible with OEM food processing equipment.

Typical Applications

• Food ingredient screening
• Flour and grain processing
• Sugar screening
• Beverage filtration
• Dairy processing equipment
• Food drying systems
• Food conveying equipment
• OEM food processing machinery

Customization Options

• Custom mesh counts and opening sizes
• Custom roll widths and sheet dimensions
• Filter discs, cylinders, and fabricated components
• Cut-to-size panels
• Edge reinforcement and welding services
• OEM manufacturing and private labeling
• Export-standard packaging
