Product Overview

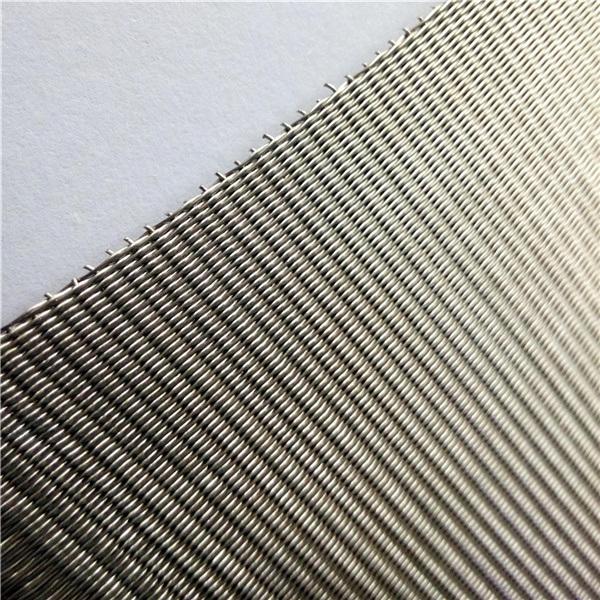

Stainless Steel Plain Dutch Weave Wire Mesh for Hydraulic Filtration is designed for hydraulic systems that require reliable particle retention, high pressure resistance, and long service life. The dense Plain Dutch Weave construction combines larger warp wires with finer weft wires to provide excellent filtration efficiency while maintaining outstanding mechanical strength.

Manufactured from premium Stainless Steel 304 or 316, this wire mesh performs reliably under continuous pressure and cyclic loading conditions. It is widely used in hydraulic filter elements, lubrication systems, industrial machinery, construction equipment, and OEM hydraulic filtration assemblies.

Key Specifications

Material: Stainless Steel 304, Stainless Steel 316, 304L and 316L available.

Weaving Type: Plain Dutch Weave

Filtration Rating: Approximately 10–150 μm depending on mesh specification.

Typical Mesh Combinations: 24×110, 30×150, 40×200, 50×250, 80×700, 165×800.

Pressure Resistance: Designed for continuous hydraulic filtration systems.

Standard Width: 1000 mm, 1220 mm and 1500 mm.

Roll Length: 30 m or customized.

Surface Finish: Bright

Standards: ASTM E2016, ISO 9044, ISO 4783 or customer specifications.

Key Features

• Dense Dutch weave structure provides excellent particle retention.
• High mechanical strength for continuous hydraulic operation.
• Excellent resistance to pressure deformation and fatigue.
• Superior corrosion resistance for hydraulic fluids and lubricants.
• Stable filtration performance throughout extended service cycles.
• Suitable for reusable hydraulic filter elements.
• Available in rolls, sheets, discs, cylinders and pleated filter media.
• OEM fabrication according to engineering drawings.

Typical Applications

• Hydraulic filter elements
• Hydraulic power units
• Construction machinery
• Industrial hydraulic systems
• Lubrication filtration
• Hydraulic oil purification
• Mobile equipment filtration
• OEM hydraulic equipment

Customization Options

• Stainless Steel 304, 304L, 316 and 316L.
• Custom micron ratings and mesh combinations.
• Filter discs, cylinders, pleated elements and cartridges.
• Laser-cut fabricated components.
• OEM production according to customer drawings.
• Private label and export-standard packaging.
