Product Overview

Stainless Steel Plain Dutch Weave Wire Mesh for Pressure Filtration is engineered for filtration systems operating under elevated pressure conditions where precise particle retention and structural integrity are essential. The Plain Dutch Weave construction combines heavier warp wires with finer weft wires to create a dense, stable filtration medium capable of withstanding demanding industrial processes.

Compared with conventional woven wire mesh, Plain Dutch Weave provides higher pressure resistance and finer filtration performance while maintaining excellent flow characteristics. It is widely used in pressure leaf filters, hydraulic filtration systems, polymer processing, chemical production, and industrial filtration equipment.

Key Specifications

Material: Stainless Steel 304, 304L, 316, 316L

Weaving Type: Plain Dutch Weave

Filtration Rating: Approximately 10–200 μm

Typical Mesh Combinations: 24×110, 30×150, 40×200, 50×250, 80×700, 165×800 and customized specifications.

Pressure Resistance: Excellent due to dense Dutch weave construction.

Standard Width: 1000 mm, 1220 mm and 1500 mm.

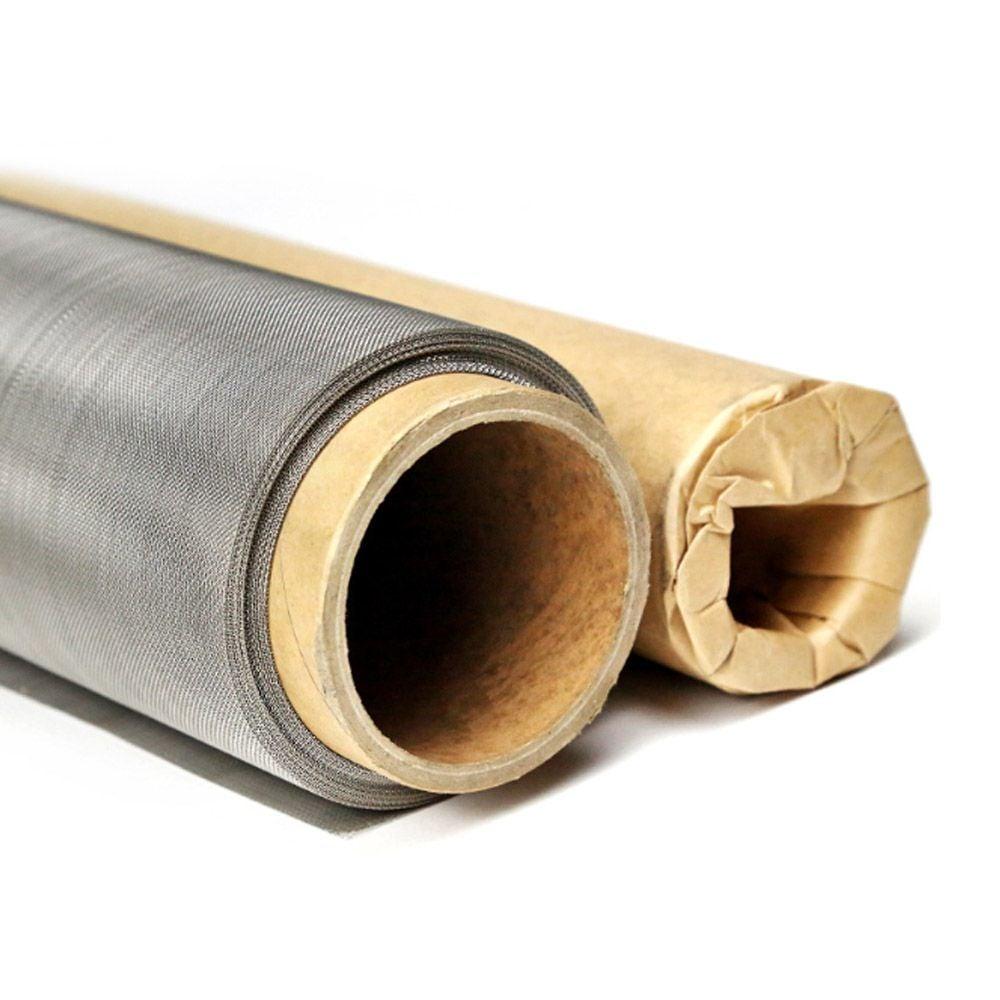

Roll Length: 30 m or customized.

Surface Finish: Bright

Standards: ASTM E2016, ISO 9044 or customer specifications.

Key Features

• Designed specifically for pressure filtration applications.
• Dense Plain Dutch Weave structure improves particle retention.
• Excellent resistance to pressure deformation.
• High corrosion resistance for aggressive process media.
• Stable filtration performance over extended operating cycles.
• Suitable for reusable filter elements.
• Available in rolls, sheets, discs and fabricated filter components.
• OEM production according to customer drawings.

Typical Applications

• Pressure leaf filters
• Hydraulic filtration
• Polymer processing
• Chemical filtration
• Industrial pressure filters
• Fuel filtration
• Lubrication systems
• OEM filtration equipment

Customization Options

• 304 / 304L / 316 / 316L stainless steel
• Custom micron ratings
• Rolls, sheets and cut panels
• Filter discs, cylinders and cartridges
• Fabricated OEM filter assemblies
• Private label packaging available
