Product Overview

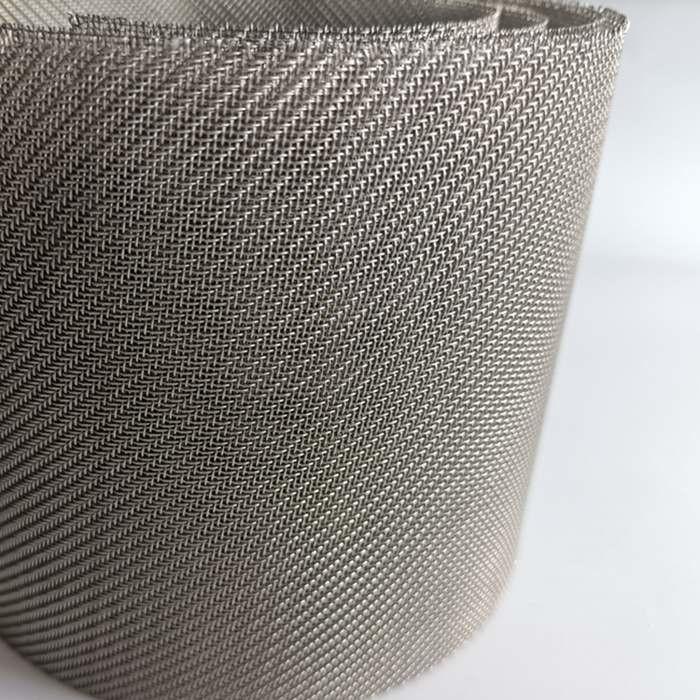

Stainless Steel Twill Weave Wire Mesh for Industrial Filtration is engineered for demanding filtration applications that require both fine particle retention and enhanced mechanical strength. Compared with plain weave mesh, the twill weave construction allows the use of heavier wire diameters while maintaining finer mesh counts, making it well suited for continuous industrial filtration processes.

Manufactured from high-quality Stainless Steel 304 or 316, this woven wire mesh offers excellent corrosion resistance, dimensional stability, and long service life. It is widely used in process filtration, pressure filtration, filter elements, and OEM filtration equipment across chemical, petrochemical, food processing, pharmaceutical, and environmental industries.

Key Specifications

Material: Stainless Steel 304, Stainless Steel 316 (304L and 316L available upon request)

Weaving Type: Twill Weave

Mesh Count: 40–500 mesh

Wire Diameter: 0.025–0.35 mm

Opening Size: Approximately 0.025–0.38 mm

Open Area: Approximately 28%–58%

Standard Width: 914 mm, 1000 mm, 1220 mm, and 1500 mm

Standard Length: 30 m rolls or custom cut lengths

Surface Finish: Bright

Manufacturing Standards: ASTM E2016, ISO 9044, ISO 4783 or customer specifications

Key Features

• Twill weave construction provides greater structural stability than plain weave mesh.
• Supports finer mesh counts while maintaining excellent mechanical strength.
• High resistance to deformation under continuous operating pressure.
• Excellent corrosion resistance for aggressive filtration media.
• Uniform openings deliver reliable filtration efficiency.
• Suitable for reusable filter elements and precision filtration systems.
• Available in rolls, sheets, discs, cylinders, and fabricated filter components.
• OEM manufacturing according to customer drawings and specifications.

Typical Applications

• Industrial liquid filtration
• Pressure filtration systems
• Chemical process filtration
• Petrochemical filtration
• Hydraulic filter elements
• Food and beverage filtration
• Pharmaceutical filtration equipment
• Environmental filtration systems

Customization Options

• Custom mesh counts and wire diameters
• Stainless Steel 304, 304L, 316 and 316L
• Rolls, sheets and cut-to-size panels
• Filter discs, cylinders and cartridges
• Edge treatment and welded fabrication
• OEM packaging and private labeling
