Product Overview

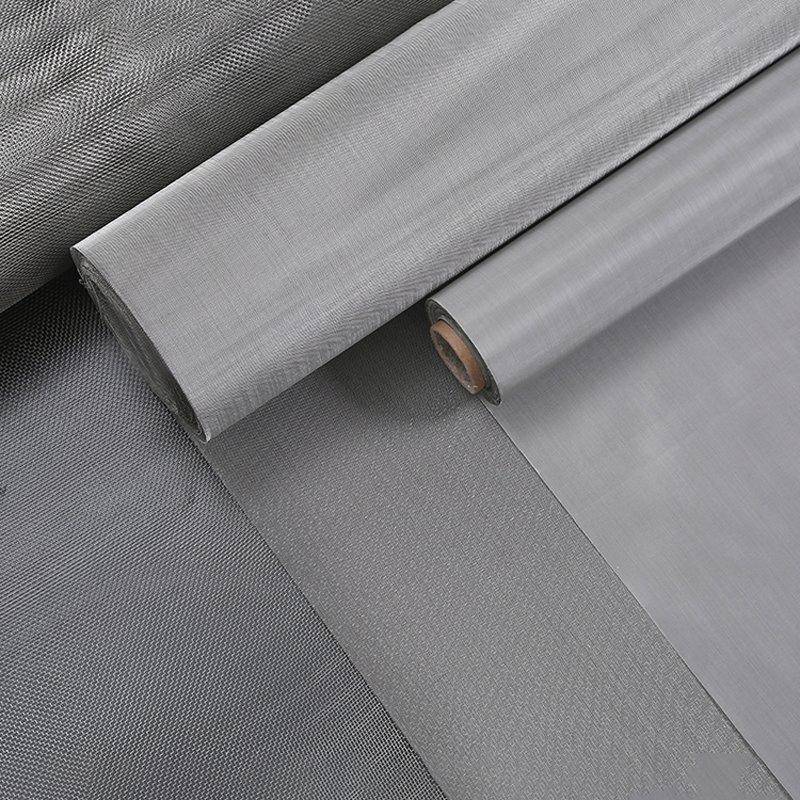

Stainless Steel Plain Weave Wire Mesh for Precision Filtration is manufactured with accurately controlled wire diameters and uniform mesh openings to achieve reliable particle retention and consistent filtration performance. Designed for high-precision industrial filtration systems, it is widely used in chemical processing, fine filtration equipment, instrumentation, laboratory filtration, hydraulic systems, and OEM filtration components where accuracy and durability are critical.

Key Specifications

Material: Stainless Steel 304 and Stainless Steel 316 (304L and 316L available upon request)

Weaving Type: Plain Weave

Mesh Count: 80–635 mesh for high-accuracy filtration and fine particle retention applications.

Wire Diameter: Approximately 0.025–0.25 mm depending on filtration accuracy requirements.

Opening Size: Approximately 0.02–0.25 mm for precision filtration applications.

Open Area: Approximately 25%–55%, depending on mesh specification.

Standard Width: 914 mm, 1000 mm, 1220 mm, and 1500 mm.

Standard Length: 30 m rolls (100 ft) or customized cut lengths.

Surface Finish: Bright

Standards: Manufactured according to ASTM E2016, ISO 9044, ISO 4783, or customer specifications.

Key Features

• Fine plain weave structure provides accurate filtration performance.
• Precise openings support stable particle retention and separation.
• Excellent stainless steel corrosion resistance for demanding environments.
• Uniform mesh geometry improves filtration consistency.
• Smooth surface reduces contamination buildup and simplifies cleaning.
• Suitable for precision filter elements and industrial filtration systems.
• Available in fine mesh specifications for critical applications.
• Custom fabrication available for OEM filtration components.

Typical Applications

• Precision liquid filtration
• Fine particle filtration
• Hydraulic and oil filtration
• Chemical processing filtration
• Laboratory filtration systems
• Industrial filter elements
• High-performance screening systems
• OEM filtration equipment

Customization Options

• Stainless Steel 304, 316, 304L and 316L available
• Custom mesh counts and opening sizes
• Custom roll widths and sheet dimensions
• Filter discs, cylinders, cones, and fabricated parts
• Laser cutting, welding, and edge reinforcement
• OEM branding and private labeling
• Export-standard packaging for international shipment
