Product Overview

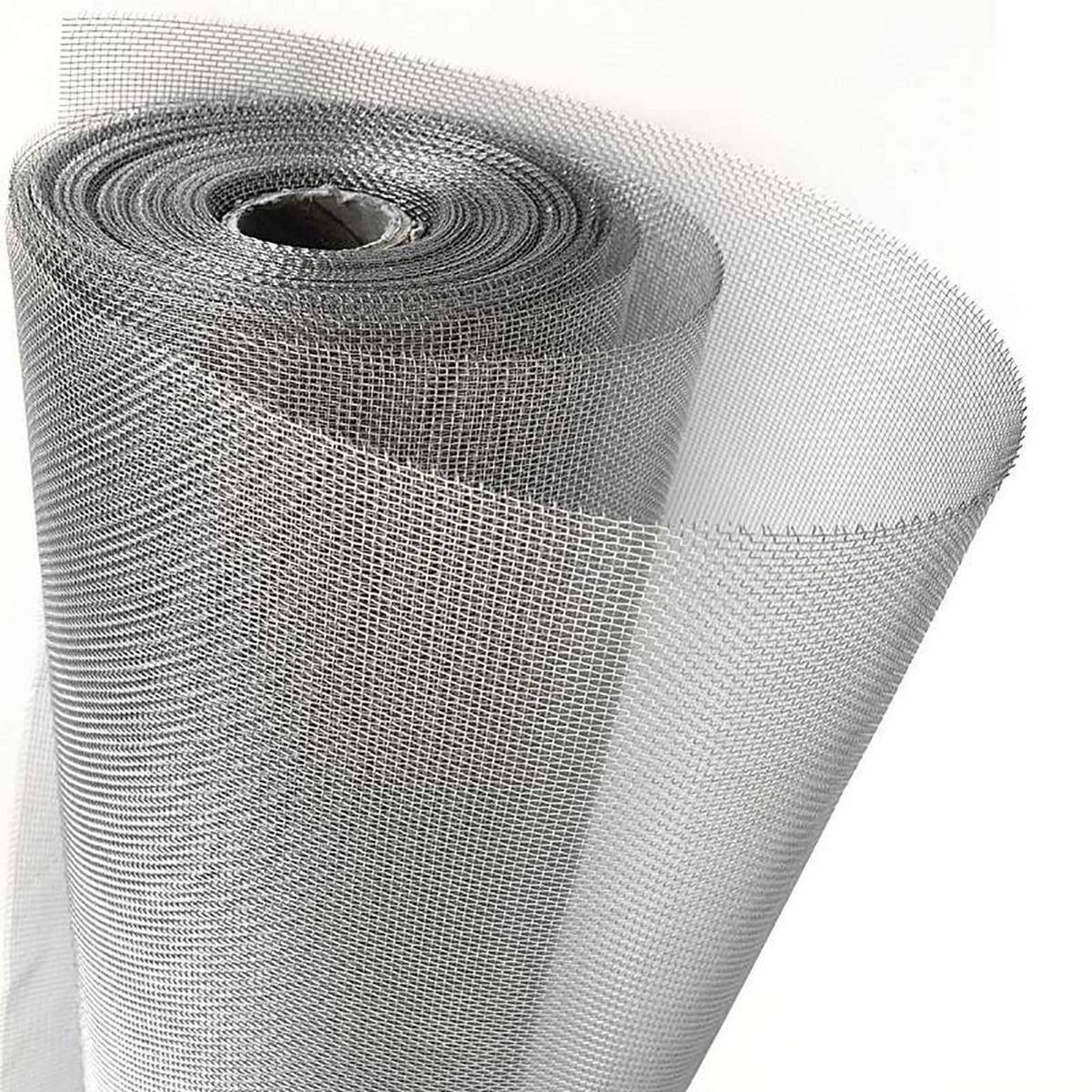

Stainless Steel Plain Weave Wire Mesh for Window Screen is manufactured with precision woven stainless steel wires to provide effective insect protection, excellent ventilation, and long-term durability. Compared with traditional fiberglass or aluminum screens, stainless steel mesh offers higher strength, improved corrosion resistance, and longer service life, making it suitable for residential, commercial, industrial, and coastal applications.

Key Specifications

Material: Stainless Steel 304 and Stainless Steel 316 (304L and 316L available upon request)

Weaving Type: Plain Weave

Mesh Count: Common window screen mesh sizes include 14 mesh, 16 mesh, 18 mesh, and 20 mesh.

Wire Diameter: Approximately 0.18–0.40 mm depending on mesh specification.

Opening Size: Approximately 0.8–1.6 mm for insect protection and ventilation requirements.

Open Area: Approximately 55%–65%, depending on mesh count and wire diameter.

Standard Width: 914 mm, 1000 mm, 1220 mm, and 1500 mm.

Standard Length: 30 m rolls (100 ft) or customized cut lengths.

Surface Finish: Bright

Standards: Manufactured according to ASTM E2016, ISO 9044, and customer specifications.

Key Features

• Fine plain weave structure provides effective insect protection and ventilation.
• Stainless steel construction offers excellent corrosion resistance for outdoor environments.
• Uniform openings maintain airflow while preventing insect entry.
• Strong wire structure improves durability compared with conventional screen materials.
• Smooth surface allows easy cleaning and long-term appearance retention.
• Suitable for residential, commercial, and industrial ventilation systems.
• Available in different mesh counts, widths, and custom fabricated sizes.
• Can be supplied in rolls or cut-to-size panels.

Typical Applications

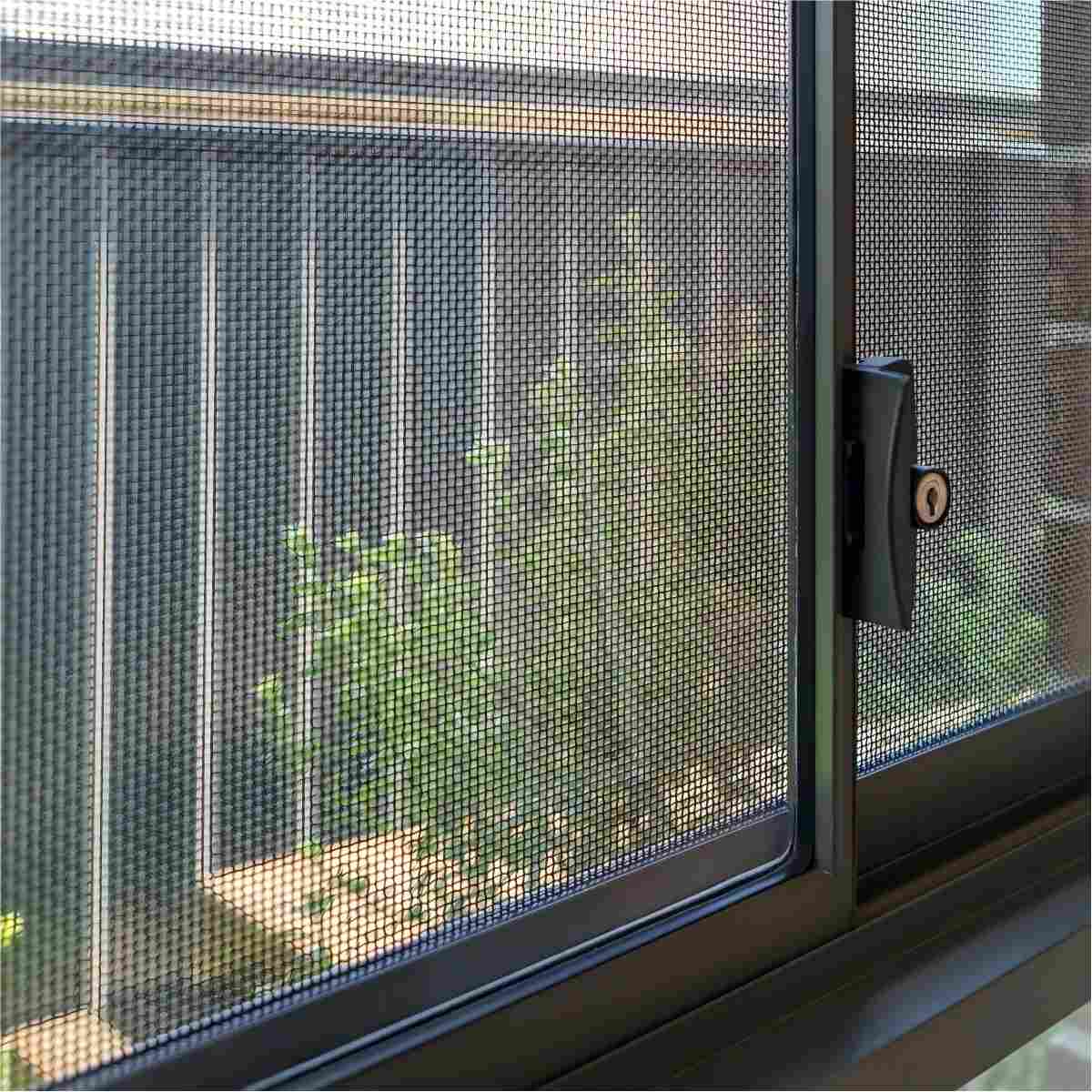

• Window and door screens
• Ventilation openings
• Air intake protection
• Building ventilation systems
• Residential insect screens
• Commercial buildings
• Industrial ventilation protection
• Custom architectural screening

Customization Options

• Custom mesh counts and wire diameters
• Different stainless steel material grades
• Custom roll widths and lengths
• Cut-to-size sheets and panels
• Frame-ready screen components
• OEM packaging and private labeling
• Export packaging for international shipment
