What is the Chain Link Fence? – Know Everything About it!

Landscape
Chain-link Fencing

The safety of our homes is our utmost priority. Most of us consider the safety of homes as an oasis of comfort and peace. Fencing our homes can ensure us the same. Properly designed and constructed fence protects our site from uninvited visitors, restricts the entry of stray animals, complements the architecture of the building and beautifies the surrounding. Fences serve many purposes throughout the home, both aesthetic and practical: they help in determining a boundary, protect our pets, shield our gardens or can help building a playground within the premises.

Fencing gives a sense of privacy, enhances beauty, and protects individual homes and land. The height and design regulations of fence ensure the safety of the community. Fencing can be done with various materials. Thus, various types of fences are available e.g. – wood fences, bamboo fences, brick wall fences, precast concrete fences, chain-link fences, aluminium fences, barbed wire fences, etc.

Here, Gharpedia is particularly going to discuss in detail about the chain-link fence.

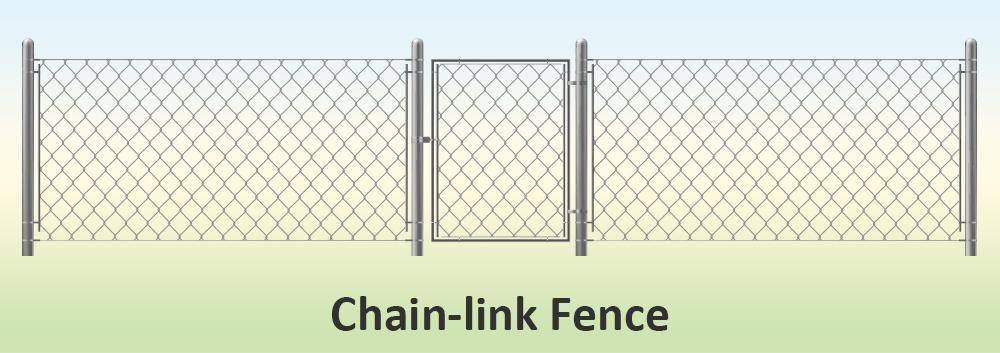

What is Chain-link Fence?
Chain-link-Fence
A chain-link fence is a type of fence made of galvanized or steel wire and has a zig-zag pattern of wires. Chain-link fence is also known as a chain wire fence, wire mesh fence, rhombic mesh fence.
Amongst all, the chain-link fence is one of the most common metal fences preferred widely. It consist of posts, rails, fittings and related hardware creating a framework which in turn supports a chain-link mesh that is stretched and attached to it. Each of the components in chain-link fence comes in a different range of weight, thickness and coating that can meet the requirements and address a variety of specification.
Chain-link fences are available in various materials, sizes and appearance options. They are suitable for both residential and commercial purposes. This type of fence is also a befitting option for temporary fencing and can be used for restricting access to an area for specified period.

Advantages of Chain-link Fence

01 Cost Effectiveness of Chain-link Fence
One of the major reasons of most homeowners favoring chain link fences is its cost-effectiveness. Fences of these types are considerably cheaper than other fence solutions available because they provide parallel services in terms of strength and visibility. If you are working with a tight budget, the chain link fence is more economical compared to the other fence choices and yet as strong and efficient as any other fence.
02 Chain-link Fence Provides Security
The chain-link fence is made up of secure coated and interlocked steel wires. Thus, it can shield objects within the boundary of the house in cyclones or hurricanes. It is therefore also known as a cyclone fence or a hurricane fence. Due to its degree of protection, it is ideal for a wide range of applications at home and in other areas. This fence can be installed more than 12 feet in height for extra security.
03 Durability of Chain-link Fence
Chain link fencing is ‘all time’ fencing choice. Its key benefit is that it can be made from a wide range of materials and these materials provide a wide range of durability.
04 Chain-link Fence Comes with a Variety of Design Options
Various design options in terms of color, size and material are available in chain link fencing. It all depends on your preferences and the type of estate you want to fence. Fencing materials may be produced to a specific thickness and style. If you have limited space, this fence is a solution.
05 Ease of Maintenance and Repair of Chain-link Fence
This kind of fence is easy to maintain and fix. In case of damage for any reason, this fence can be quickly cut and replaced.
06 Quick Installation of Chain-link Fence
Chain link fences can be quickly installed compared to other fence options. This job can be accomplished on time if you hire a professional fencing installer.

Disadvantages of Chain-link Fence

01 Chain-link Fences Do Not Provide Privacy

This kind of fence does not provide privacy. However, in many instances, Chain Link fence repair company installs slates on this form of fence that can help you improve privacy. You may also grow thick vegetation along to get privacy.

How to install Chain-link Fence?

Before building a chain link fence, it is essential to know what kind of materials and tools are required for it. Let us understand about them.
Materials Required For Chain-link Fence Installation

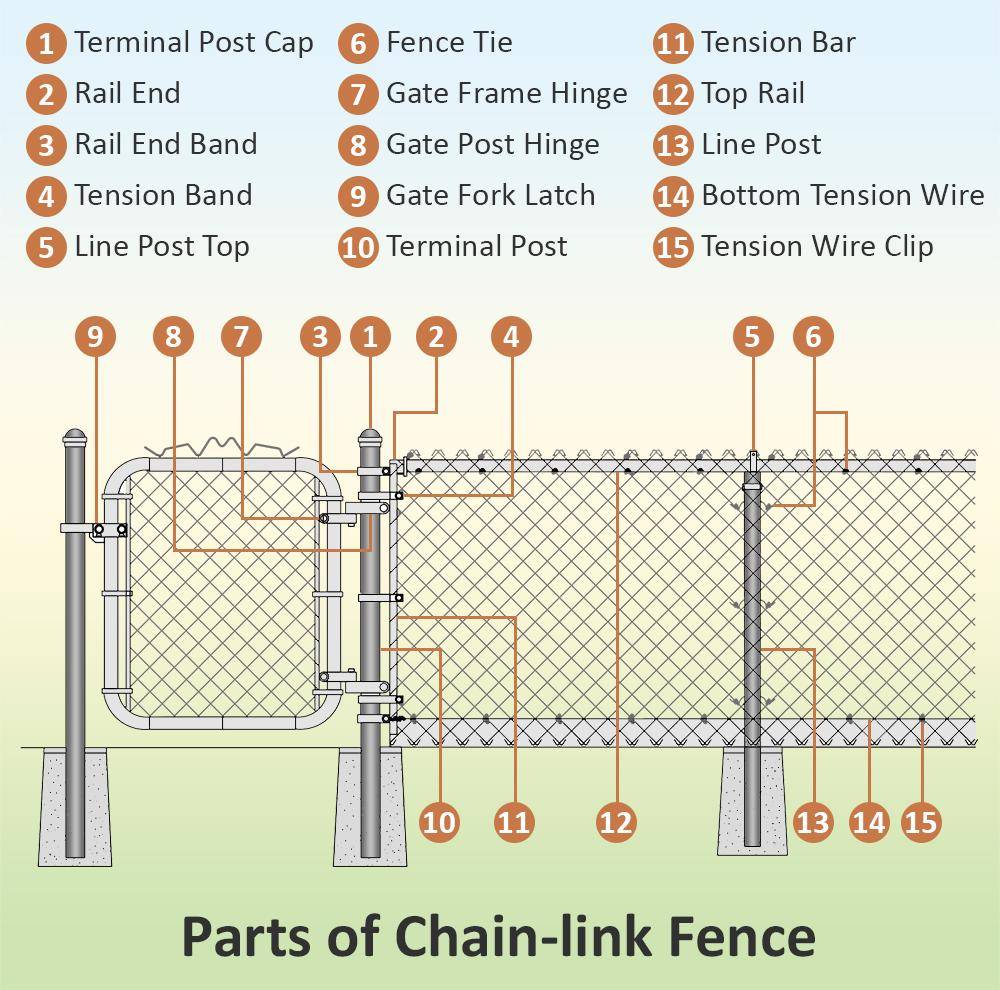

Parts-Of-Chain-link-Fence
The different materials required for residential chain link fence installation are,
01. Chain-link Fabric
02. Line post
03. Terminal Post
04. Tension Bar
05. Brace Band
06. Rail Ends
07. Top Rail Swedged End
08. Tension Band
09. Carriage Bolts
10. Terminal Post Cap
11. Loop Caps Match to Post and Rail
12. Alum Hook Ties
13. Male Hinge
14. Female Hinge
15. Fork Latch
16. Single or Double Swing Gate
Tools Required To Install Chain Link Fence
Chain-Link-Fence-Installation-Tools
The tools you will find useful in installing your fence are,
01. Level
02. Pliers
03. Wrench
04. Tape Measure
05. Fence Stretcher
06. Post Hole Digger
07. Hacksaw or Pipe Cutter
08. String and Stakes or Mason’s Line
09. Wheelbarrow, Shovel and Hoe for Mix and Transport Concrete

Steps for chain-link Fence Installation

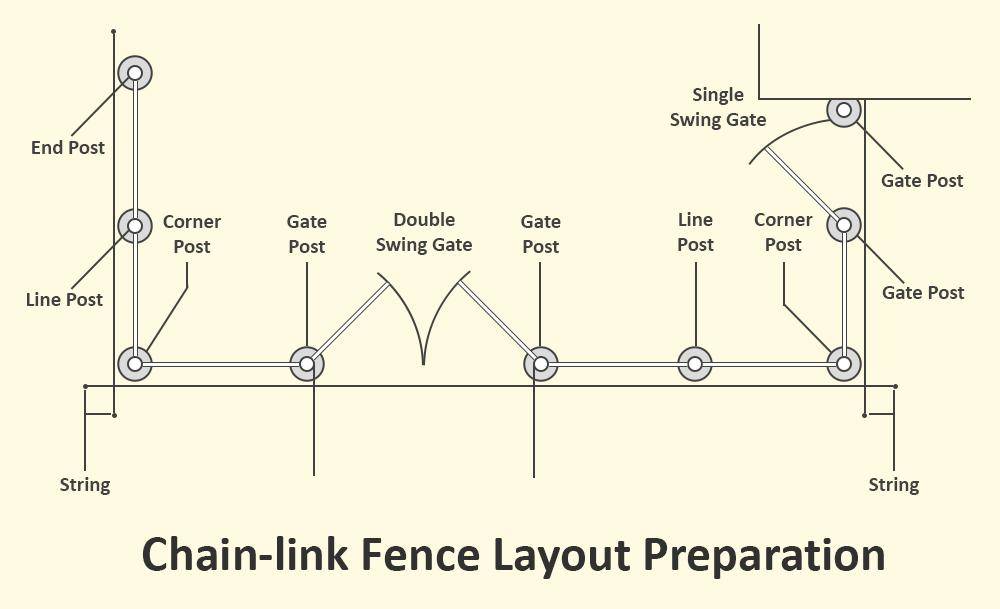

Step 1 – Prepare Chain-link Fence Layout

Chain-link-Fence-Layout-Preparation-
  • Locate and establish the boundary lines of your land. According to ‘Rocky Cianchette ’ (Owner of MAIN LINE FENCE – DEFINING QUALITY SINCE 1948), it is recommended that all posts be placed approximately 4 inch (10 cm) inside the property line so that concrete footings should not encroach on any adjacent property.
  • Measure the total length of your proposed fence. This will help you in deciding how many feet of chain link and top rail would be required for fencing.
  • Mark the position of each terminal post (corner, end and gate posts are called terminal posts) with a stake.
  • While deciding the locations of the gate posts, note that the clearance for the hinges, latches, etc. is included in the opening width of the gate. Therefore, if you purchase 36 inches opening, the post spacing should be exactly 36 inches, inside post face to inside post face.

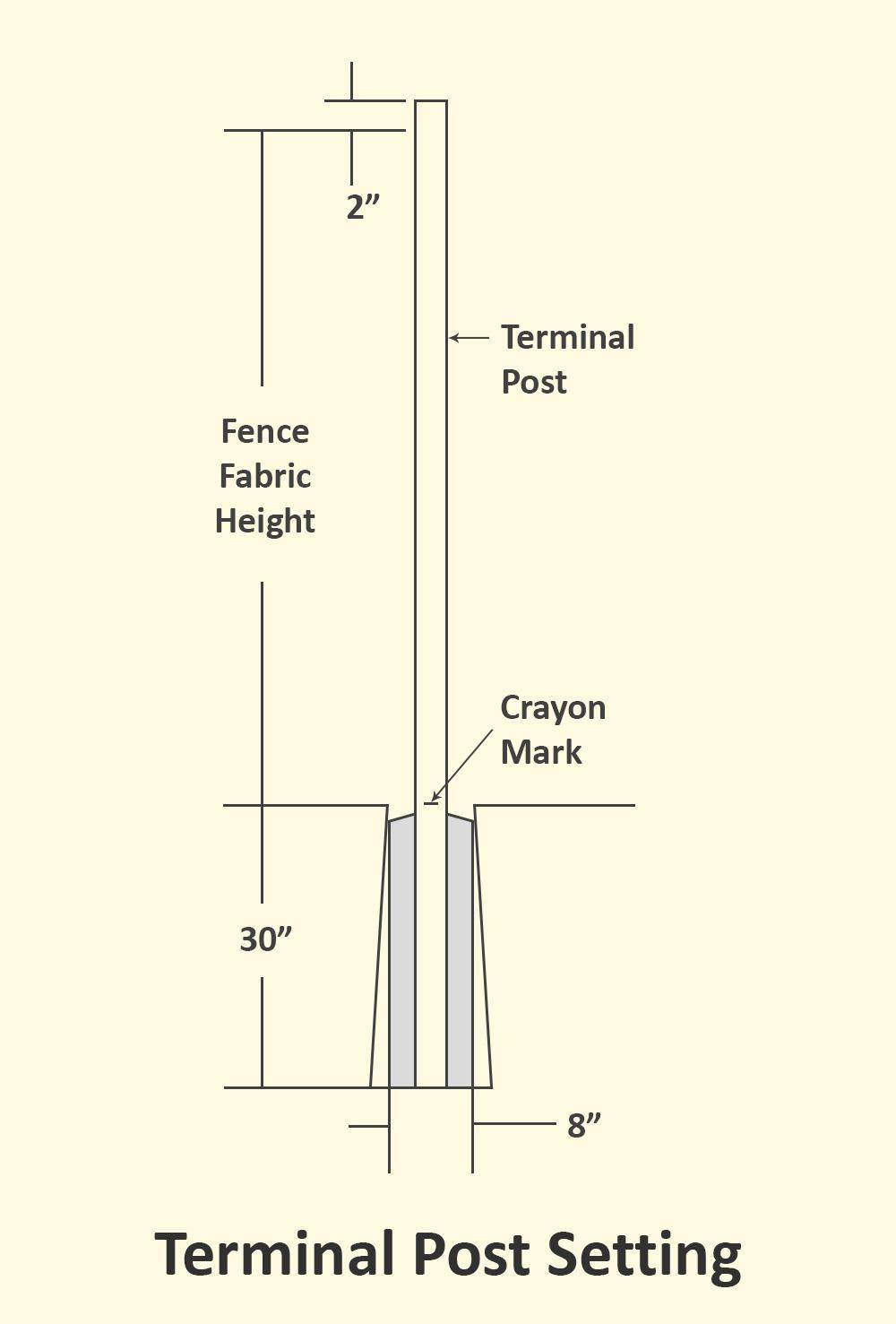

Step 2 –Terminal Posts Setting

Terminal-Post-Setting
  • Dig terminal holes which are approx. 8 inch in diameter and 30 inch deep with sloping sides. However, the exact depth and diameter will be determined depending upon the local weather conditions and soil conditions.
  • Mark the ground line on the posts with crayon or chalk. Height above the ground level of terminal posts equals the height of the fence fabric plus 2 inch (50 cm).
  • Center the terminal posts in the holes. Make sure the posts are in plumb and placed to the correct height. Cover the posts by constantly pouring concrete. Now, finish with trowel around the posts and pour water.

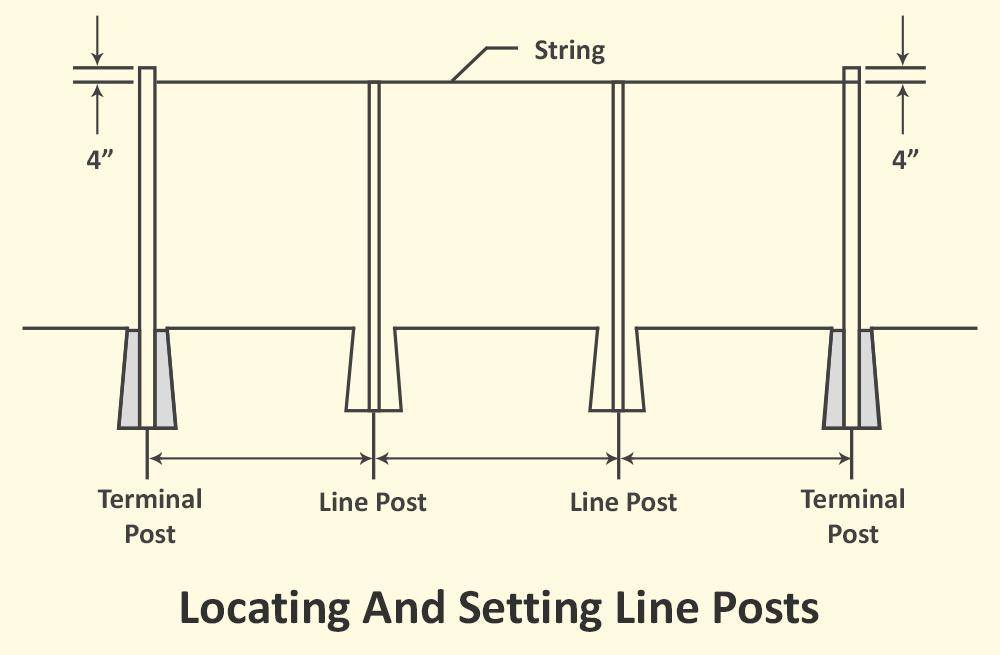

Step 3 – Locating and Setting Line Posts

When the footings of terminal posts have hardened enough to stabilize the posts, extend a string line between terminal posts. The string should be placed on the outer side of the posts 4 inches (10 cm) below the top. Height above level ground of line posts will equal the height of the fabric minus 2 inches (50 cm).

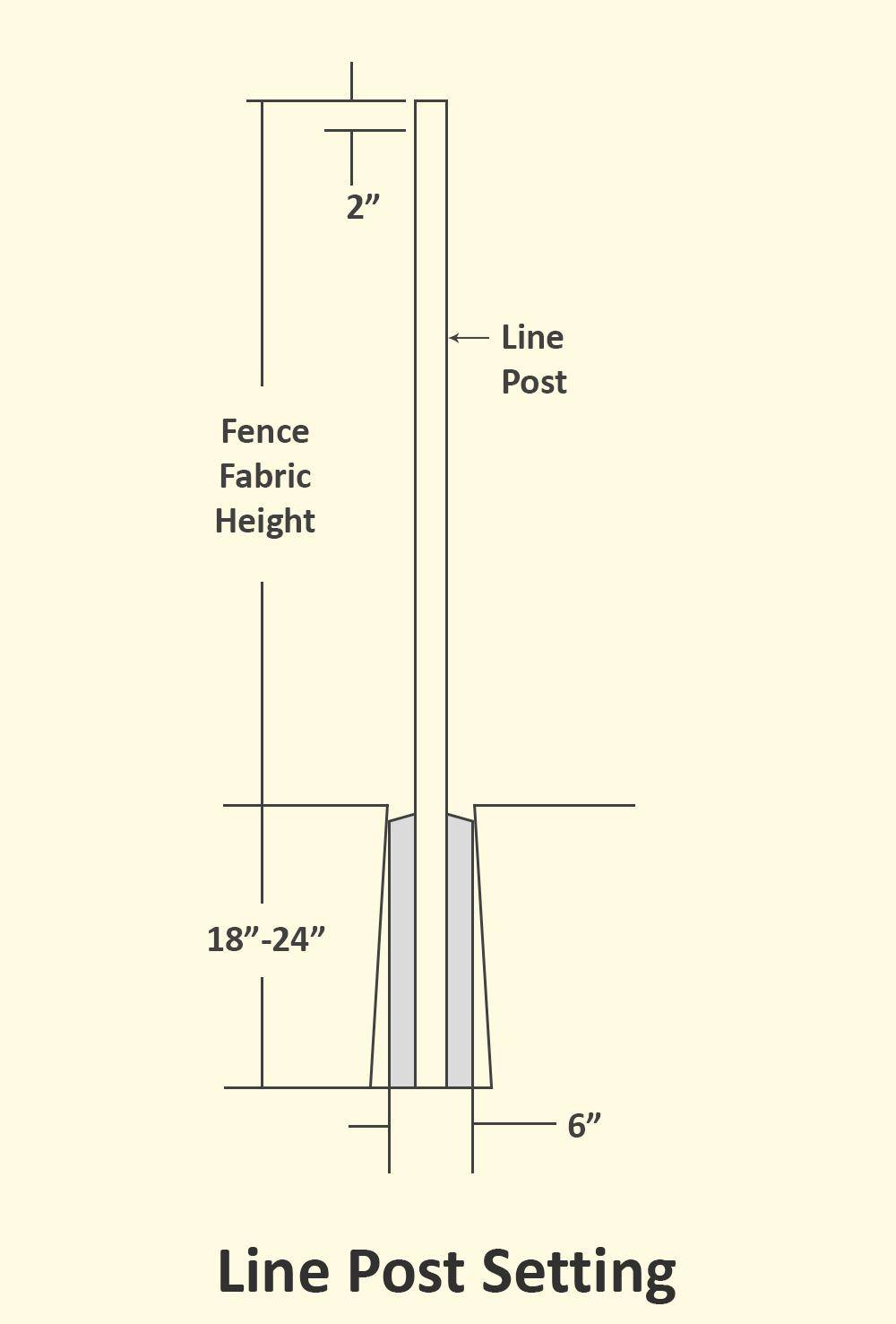

  • Measure the distance between the terminal posts and refer to the Post Spacing Map to assess the distance between line posts. Dig line posts holes 6 inches wide and 18 inches to 24 inches deep and with sloping sides (150mm x 150 mm x 450-600mm).
  • Centre the line posts in the holes. Make sure the posts are in plumb, aligned with the centers of the terminal posts, and set at the accurate height. Cover the posts by constantly pouring concrete. Finish with trowel around the posts and pour water.

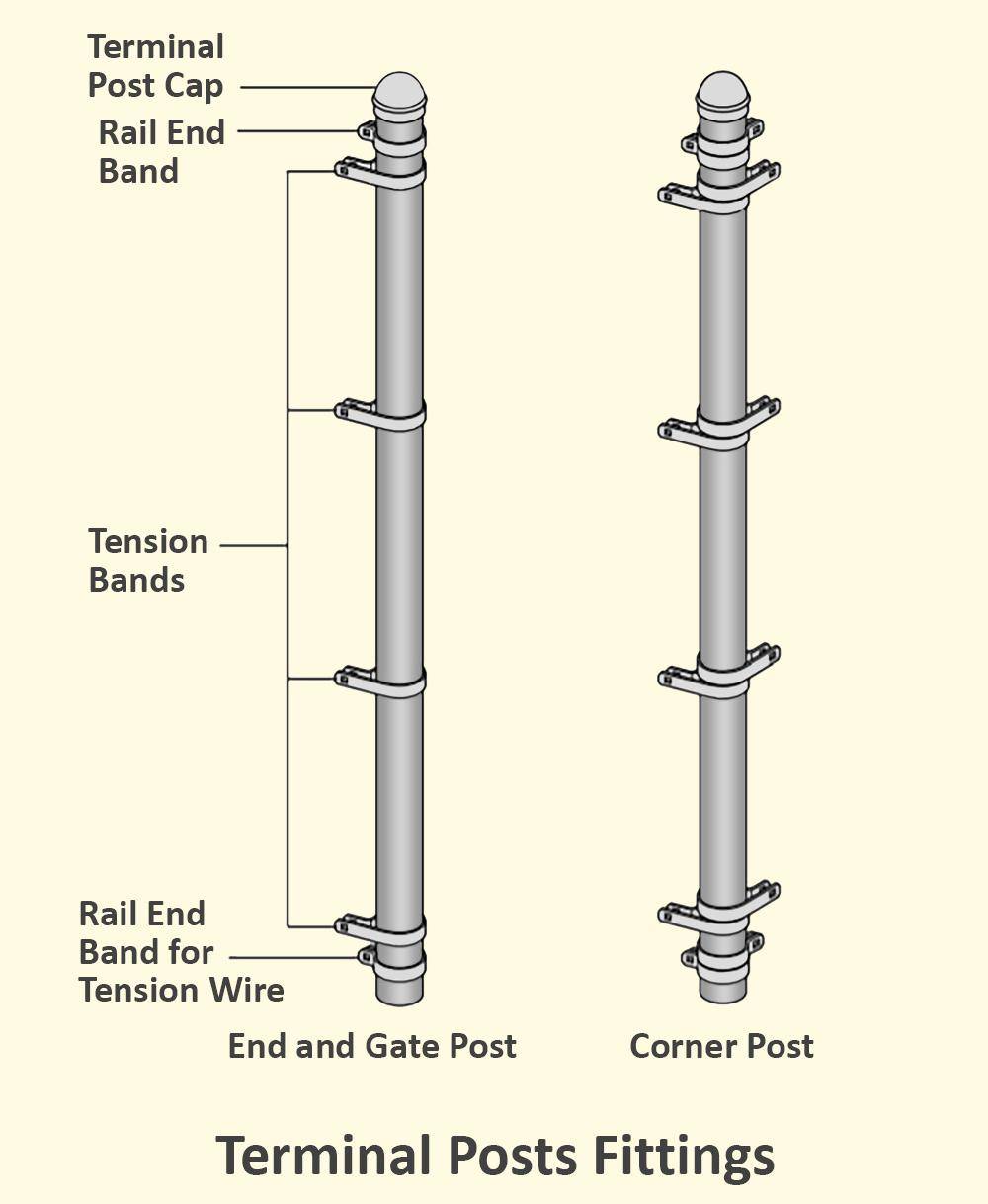

Step 4 – Adding Fittings To Terminal Posts

  • After the concrete footings have been properly hardened, the rail end bands and the tension bands are slipped onto the terminal posts. (Refer the list of parts for the description and quantity of fittings required for different post styles and heights.)
  • The long flat surface of the tension band should face outer side of the fence. Later, apply all the terminal post caps. At this stage, be careful not to spread or distort the fittings.

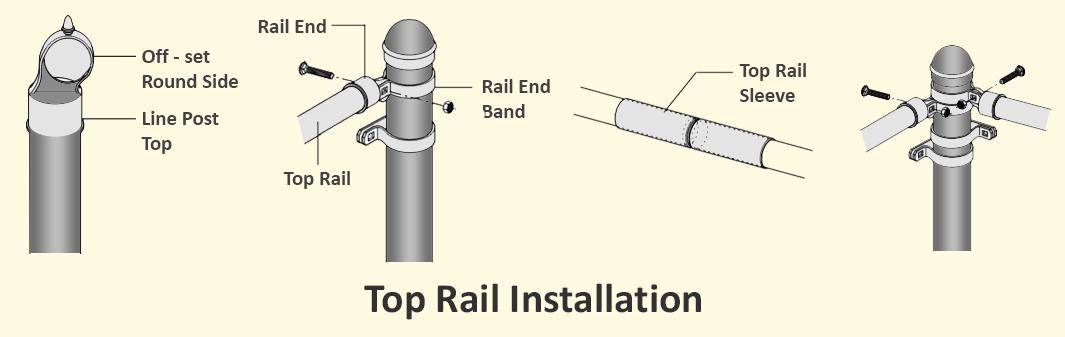

Step 5 – Installing Top Rails on Line Post

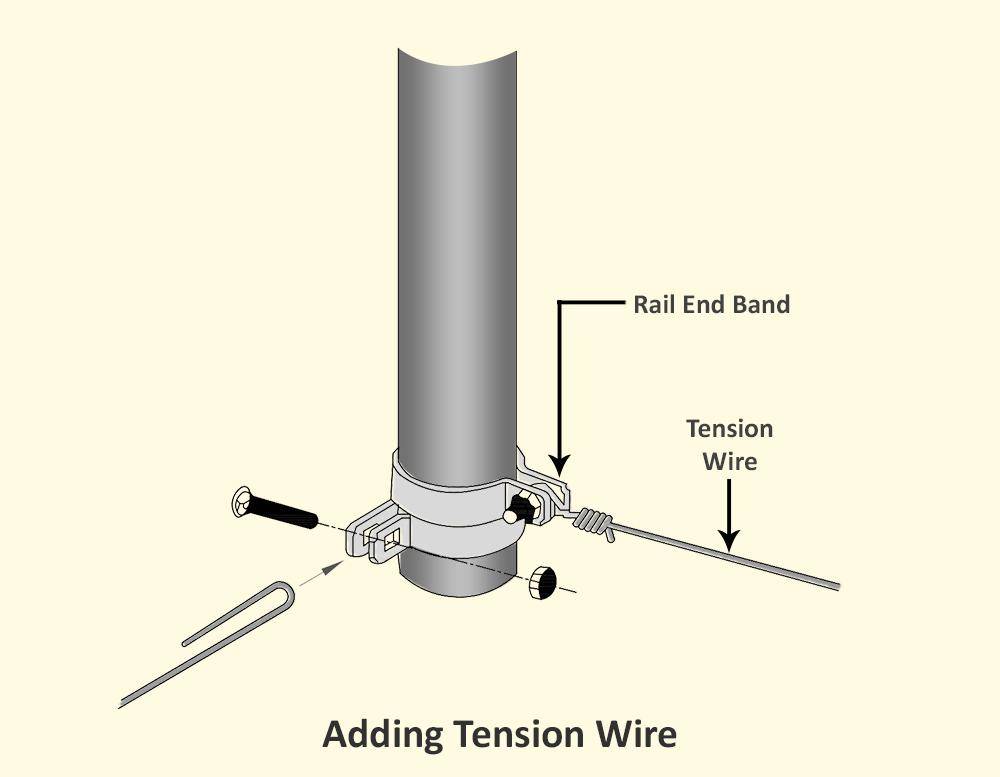

Step 6 – Add Tension Wire if Required

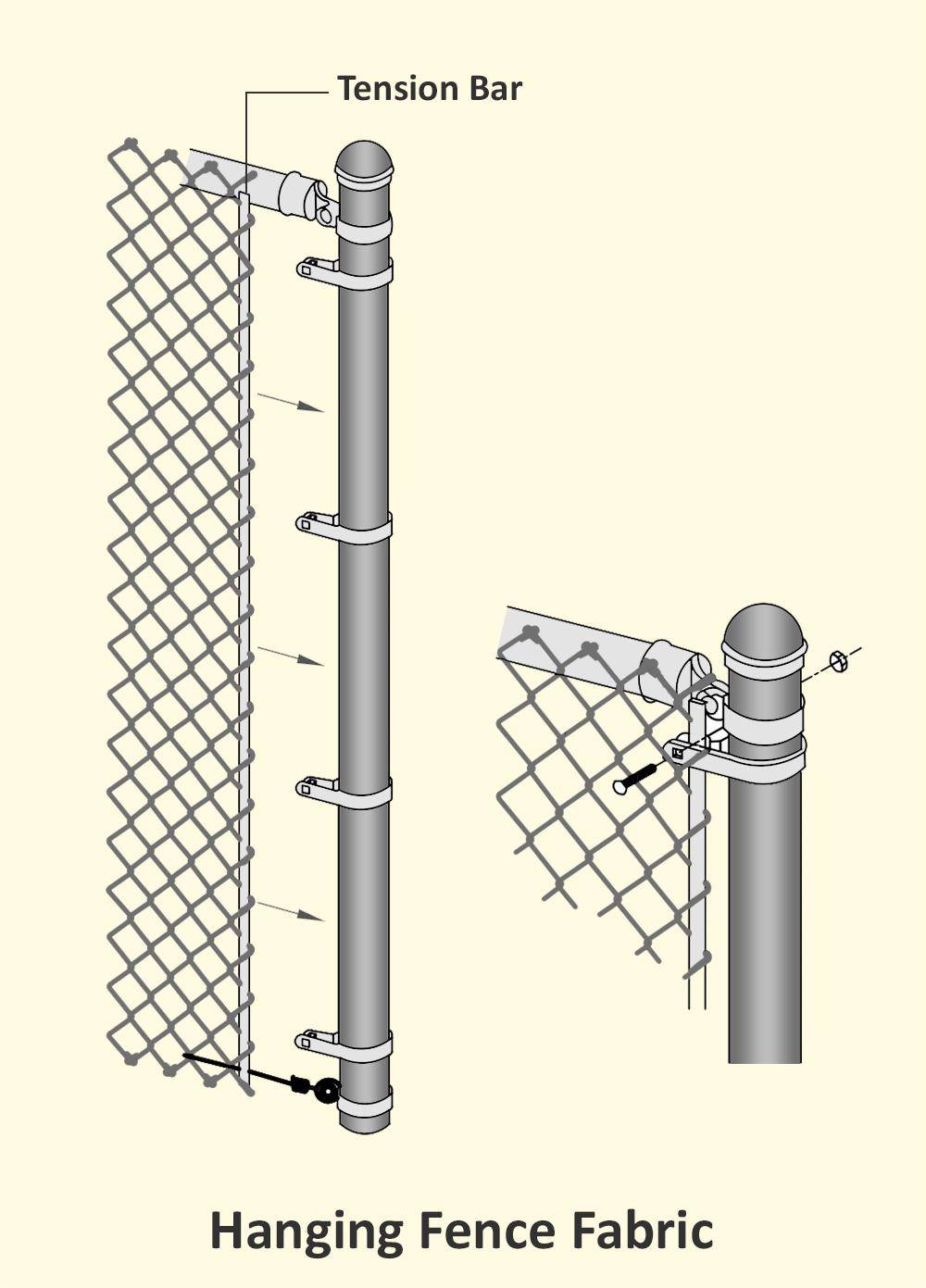

Step 7 – Hanging Fence Fabric

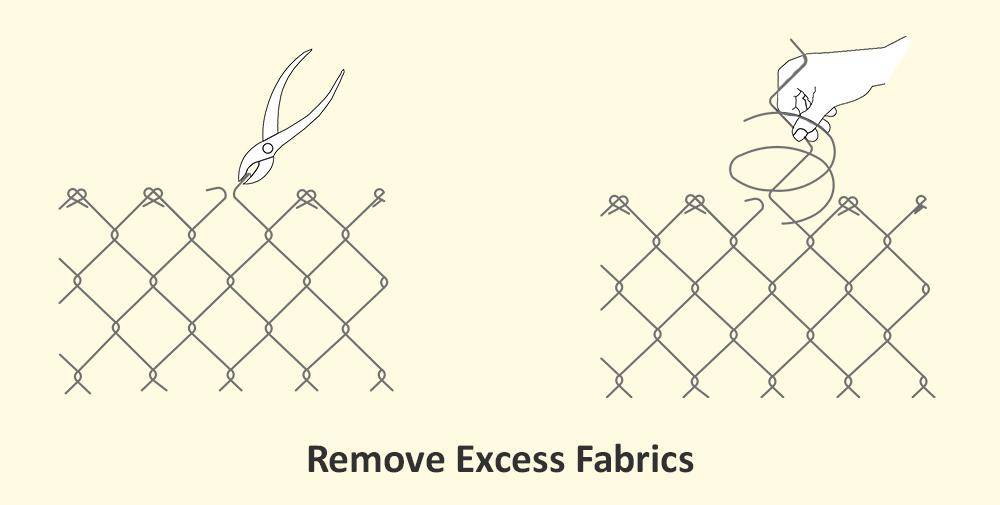

Splice the sections of chain-link fabric together using a single strand of wire, separated from the end of the fabric. Join the two parts by winding the loose strand down, the corkscrew style through the end ties. Tighten and join the knuckles to the top and bottom to secure.

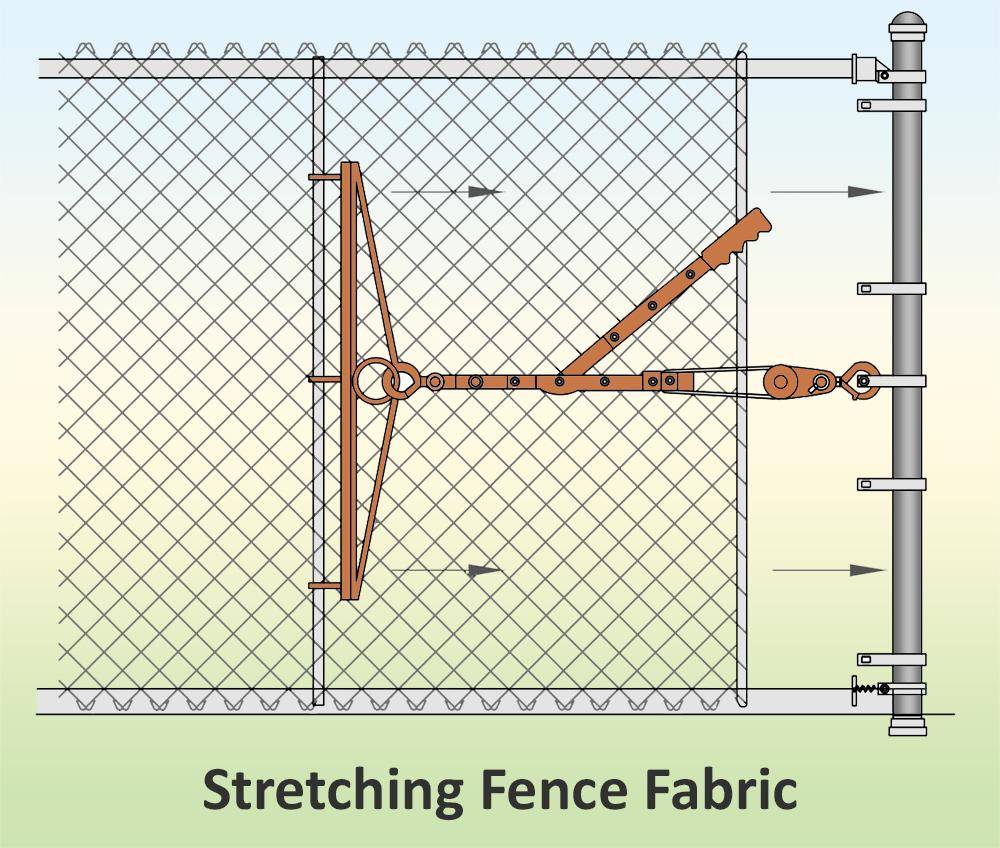

Step 8 – Stretching Fence Fabric

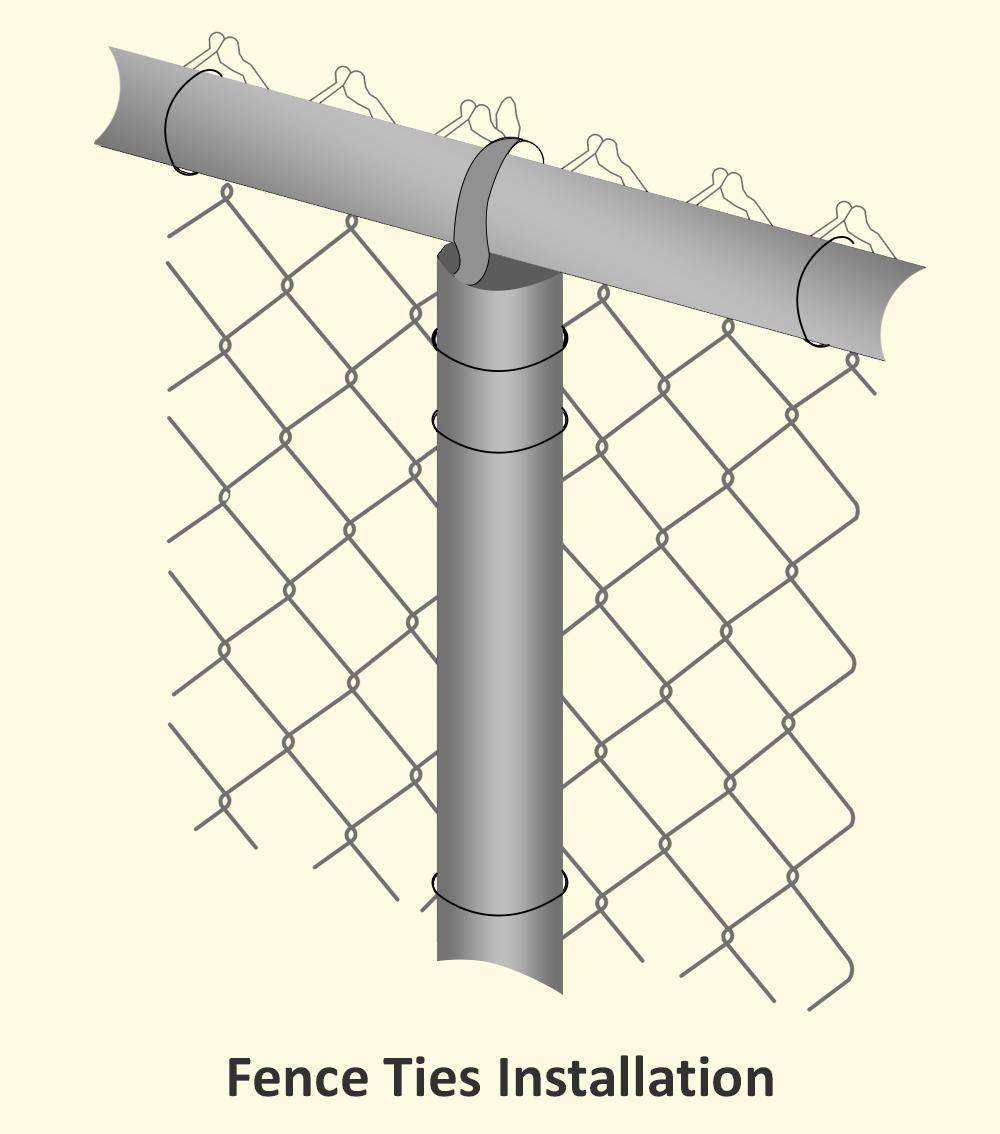

Step 9 – Installing Fence Ties

Securely fasten the fabric with fence ties that are approximately 24 inches (600mm) apart along the top rail and 12 inches (300mm) apart on each line post. In the last, firmly tighten the bolts on all rail end bands and tension bands.

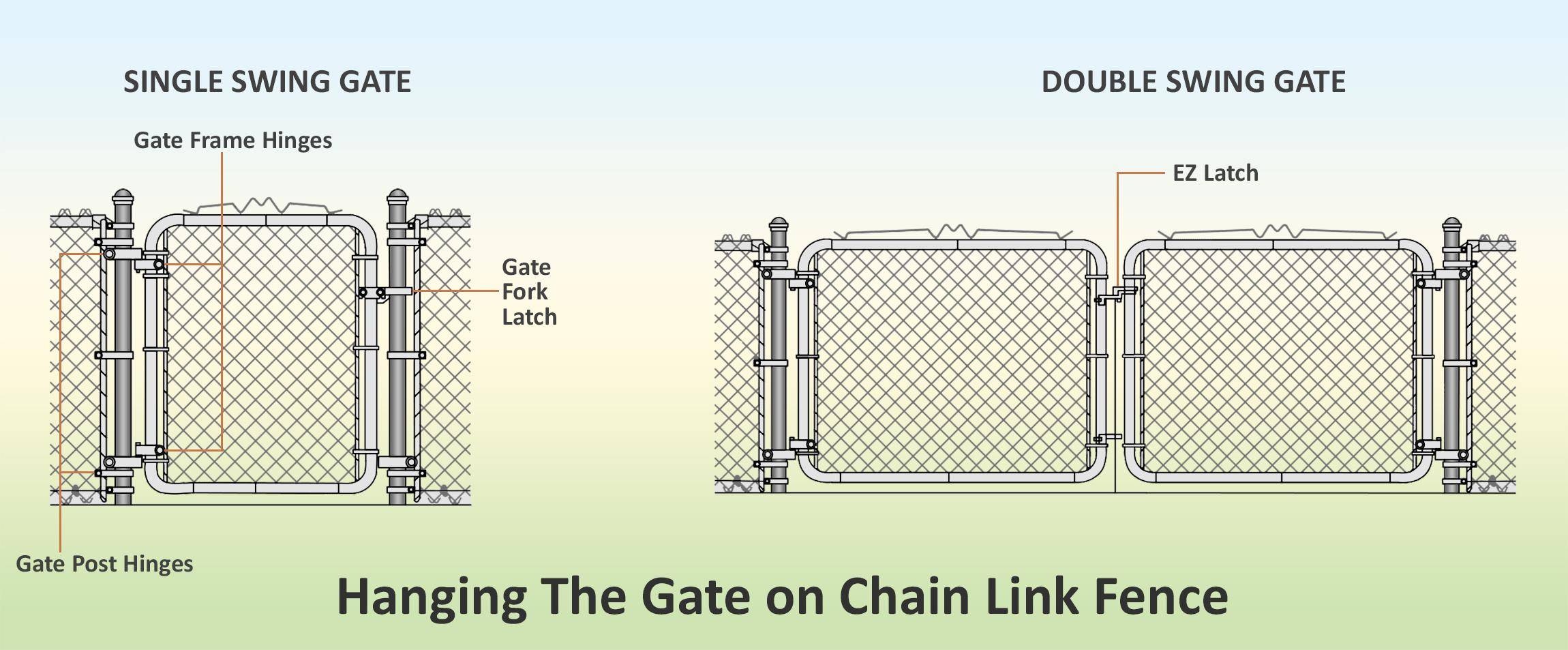

Step 10 – Hanging The Gate

Cost of Chain-link Fence Installation

According to Link Land Fencing System , the following points should be taken into consideration while estimating the cost of installation of chain links fence:

In addition to this, the cost of the fence depends on from where and from whom the chain link fence material has been purchased as the cost varies from place to place. The labour cost of fence installation is also different at different places.

Summing up

Chain-link fencing is normally made of steel. Other materials, such as vinyl and plastic-coated metal products are gradually being introduced in the fencing industry. These coating materials have demonstrated their efficiency in reducing maintenance, upkeep, repair, etc., as well as increase the life cycle. Each material has its own peculiar maintenance issue and problems that could have an impact on the usage and life expectancy of the system.
Some chain link fences are built and designed for temporary use, while others are installed for long-term or permanent use. Installation is critical to the selection of fencing systems and design as there are many installation methods and varieties of fencing materials. The suggested installation methods of the manufacturers must be followed meticulously.
According to ‘Philip Schmidt’[311] (Editor of Book: The Complete Guide to Garden Walls & Fences, Black & Decker), if you are looking for a strong, durable and economical way to keep pets and children in or out of your yard, a chain-link fencing could be the perfect solution. It requires minimal maintenance as well as provides excellent protection.
