Durable Hinge Joint Fence Solutions
Hinge joint fences are engineered for superior strength and longevity. Ideal for agricultural and livestock management, providing reliable perimeter security and effective animal containment.
Cost-Effective Fencing for Farms
Reduce your fencing costs with our efficient hinge joint designs. Easy to install and maintain, these fences offer a practical and economical solution for large-scale agricultural applications.
Versatile Fencing for Varied Terrain
Adaptable to uneven landscapes, our hinge joint fences provide consistent protection across diverse terrains. Perfect for maintaining boundaries and preventing animal escapes in challenging environments.

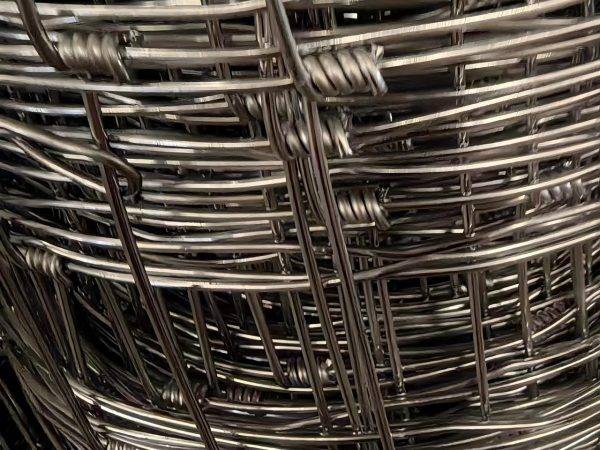

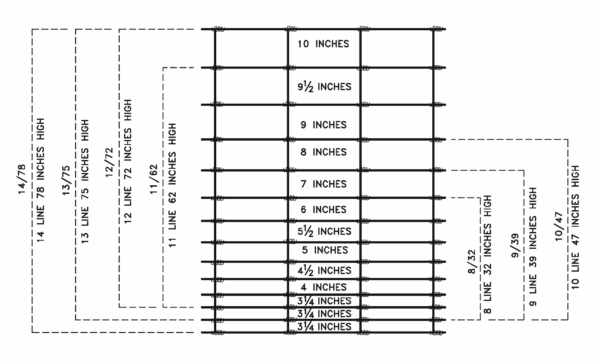

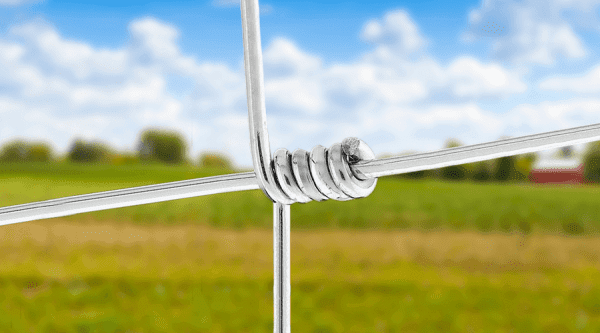

Hinge Joint Woven Wire Fence is manufactured in a wide variety of heights and styles and feature a graduated spacing that starts with small openings at the bottom, helping to prevent entry by small animals. The Hinge-Joint Knot allows the fencing to give under pressure and spring back into shape. It also expands or contracts under changing weather, giving flexibility and added strength. This quality fencing ensures a solid construction over any terrain. Our field fence is designed using a variety of spacing configurations to accommodate horses, cattle, hogs, and other large animals.

  • Premium Fence is produced with a Class I or Class III Zinc Coating in 9, 11, and 12.5-gauge. Heights range from 26” to 56”, with a stay opening of either 6” or 12” and a length of 330’ (20 rods). Uniform strength provides the best stretching possible and the range of sizes will meet all your fencing needs.
  • Commercial Fence is available in the same variety of heights as our other products, with a 6” or 12” stay opening, in 330’ rolls. The Commercial Fence is made with a 14-gauge commercial coated galvanized wire, which makes it a great economical fence for your lighter fencing needs.
ITEM #NO. HORIZ. WIRESFENCE HEIGHTSTAY OPENINGINSIDE WIRE GAUGETOP & BOTTOM WIRE GAUGEROLL LENGTHAPPROX. WEIGHTROLLS/ PALLETS
939-6 -9939”6”99330’356 lbs.4
1047-6-91047”6”99330’408 lbs.4
1154-6-91154”6”99330’456 lbs.4
939-12-9939”12”99330’264 lbs.6
1047-12-91047”12”99330’298 lbs.6
1154-12-91154”12”99330’333 lbs.6
726-6-11726”6”119330’182 lbs.6
832-6-11832”6”119330’212 lbs.6
939-6-11939”6”119330’244 lbs.6
1047-6-111047”6”119330’278 lbs.6
1156-6-111156”6”119330’313 lbs.6
939-12-11939”12”119330’184 lbs.9
1047-12-111047”12”119330’208 lbs.9
1156-12-111156”12”119330’232 lbs.9
726-6-12.5726”6”12.510330’130 lbs.9
832-6-12.5832”6”12.510330’150 lbs.9
939-6-12.5939”6”12.510330’170 lbs.9
1047-6-12.51047”6”12.510330’190 lbs.9
1156-6-12.51156”6”12.510330’220 lbs.9
726-12-12.5726”12”12.510330’104 lbs.9
832-12-12.5832”12”12.510330’116 lbs.9
939-12-12.5939”12”12.510330’132 lbs.9
1047-12-12.51047”12”12.510330’146 lbs.9
1156-12-12.51156”12”12.510330’160 lbs.9
726-6-14726”6”1411330’86 lbs.9
832-6-14832”6”1411330’98 lbs.9
939-6-14939”6”1411330’112 lbs.9
1047-6-141047”6”1411330’125 lbs.9
1156-6-141156”6”1411330’141 lbs.9
832-12-14832”12”1411330’78 lbs.9
939-12-14939”12”1411330’87 lbs.9
1047-12-141047”12”1411330’97 lbs.9
1156-12-141156”12”1411330’107 lbs.9
  • Absorbs animal impacts
  • Safety when fencing inwards or outwards
  • Adjustable to different surfaces
  • Corrals of sheep, goats and small species

Detailed Specifications of Hinge Joint Fence Products

Explore the comprehensive technical specifications of our hinge joint fences. We provide detailed information on dimensions, materials, wire diameter, and coating types to ensure you find the perfect fit for your needs. Our fences are engineered for durability and performance.
0 mm
Wire diameter ranges to ensure optimal strength.
0 Years
Expected lifespan with proper installation and care.

Get Your Hinge Joint Fence Now

Explore our high-quality hinge joint fences designed for durability and performance. Contact us for inquiries or place your order today!
