Product Overview

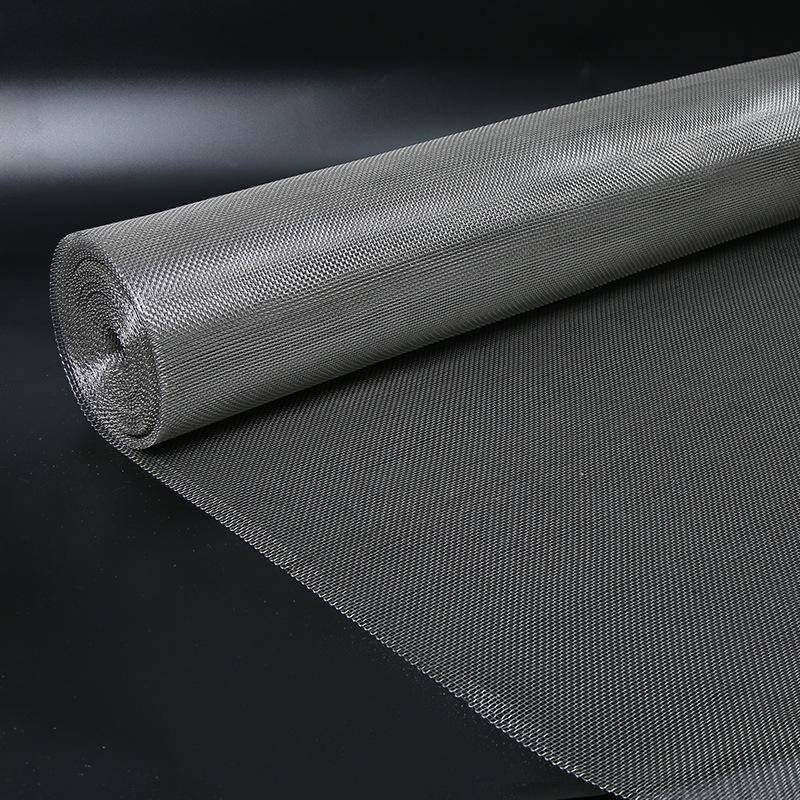

Stainless Steel Plain Weave Wire Mesh is designed for precision filtration, screening and separation applications requiring accurate mesh openings, excellent corrosion resistance and long-term performance.

Manufactured from premium stainless steel wire, it provides reliable filtration efficiency, dimensional stability and extended service life in demanding industrial environments.

Custom mesh counts, roll widths and fabrication options are available to meet specific project requirements.

Key Specifications

Material: Stainless Steel 304 and Stainless Steel 316 (304L and 316L available upon request)

Weaving Type: Plain Weave

Mesh Count: 2–635 mesh, available for coarse screening to fine filtration applications.

Wire Diameter: 0.03–2.03 mm (0.0012″–0.080″) depending on mesh specification.

Opening Size: 0.02–12.27 mm (0.0008″–0.483″) for different filtration requirements.

Open Area: Approximately 20%–79%, depending on mesh count and wire diameter.

Standard Width: 914 mm, 1000 mm, 1220 mm, and 1500 mm.

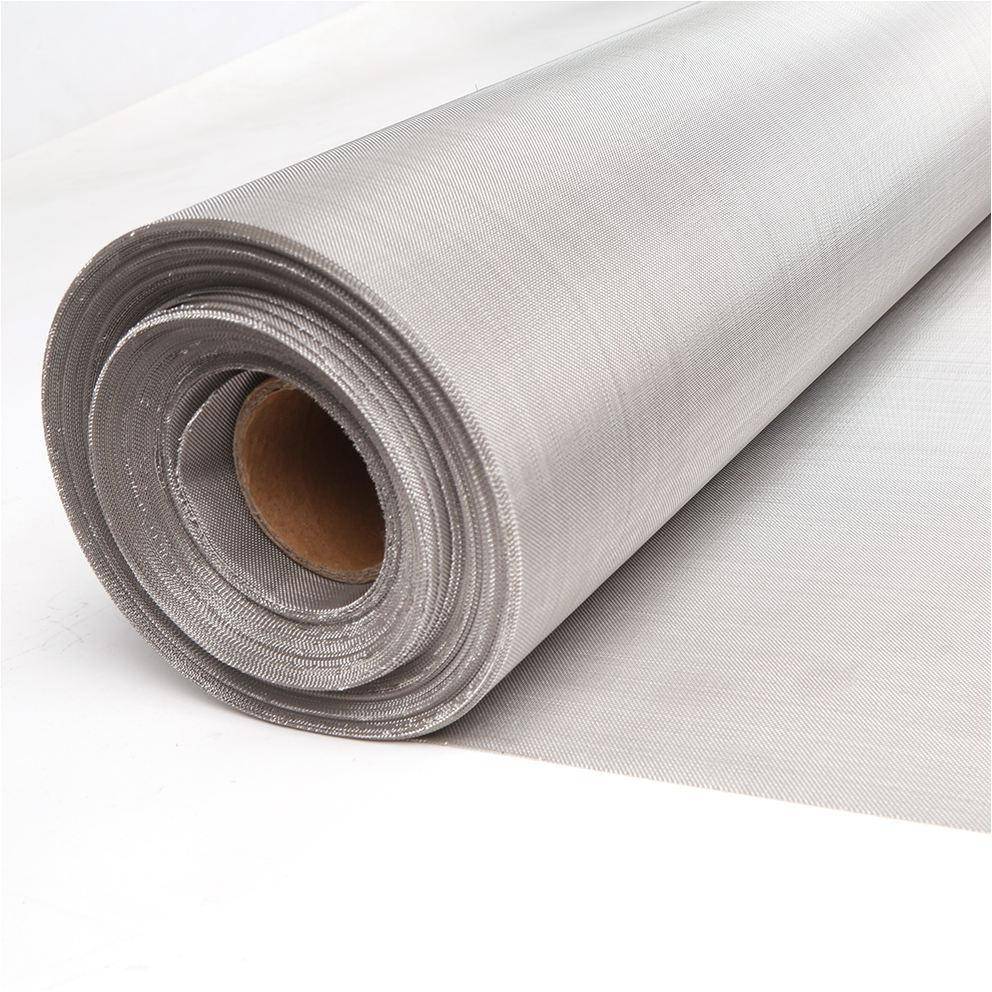

Standard Length: 30 m rolls (100 ft) or customized cut lengths.

Surface Finish: Bright

Standards: Manufactured according to ASTM E2016, ISO 9044, ISO 4783, or customer specifications.

Key Features

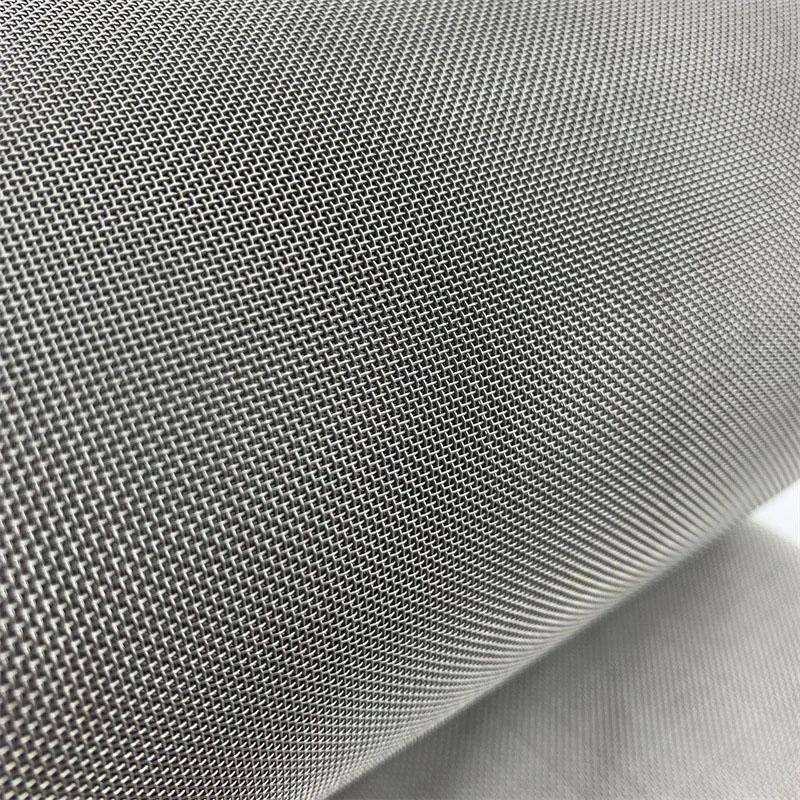

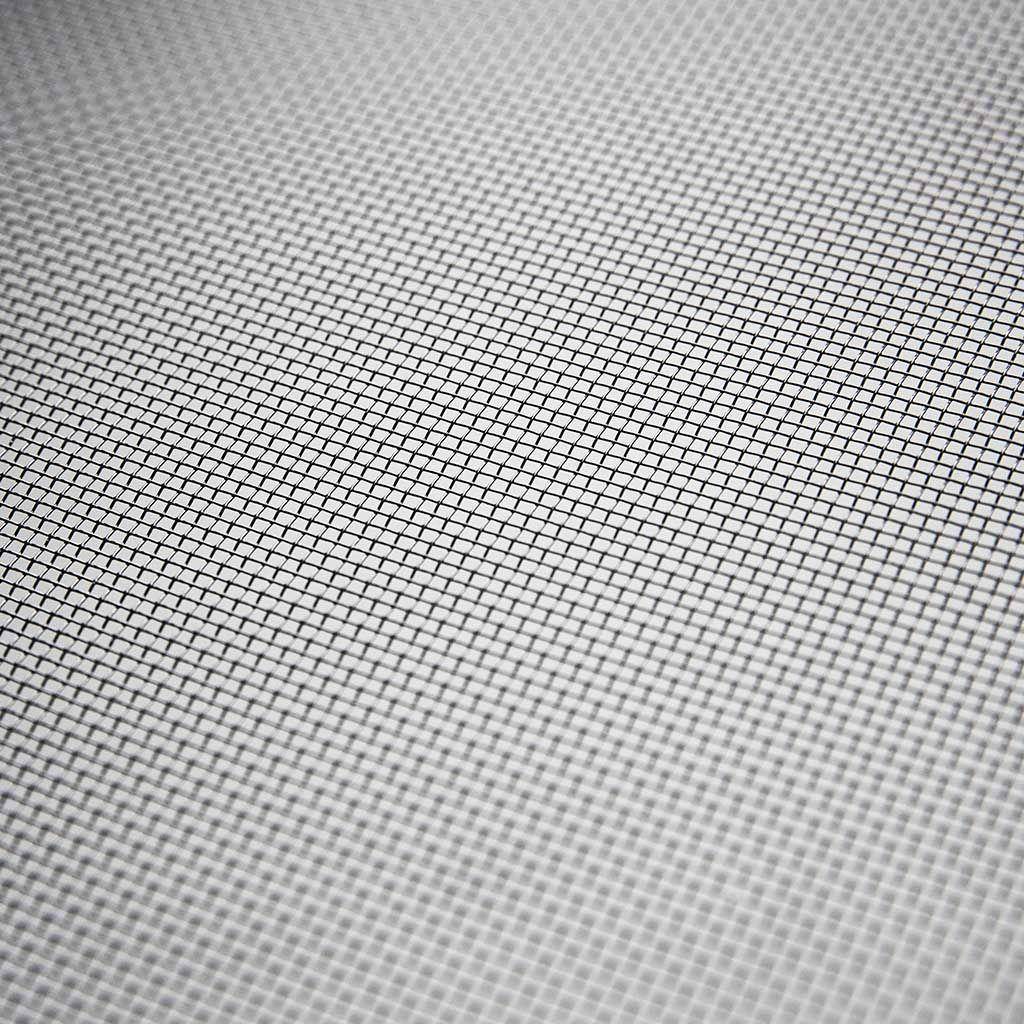

• Uniform plain weave structure provides consistent filtration accuracy.
• Precise mesh openings support reliable particle retention.
• Excellent corrosion resistance for liquid, gas, and industrial filtration applications.
• High dimensional stability maintains mesh performance during operation.
• Smooth surface allows easy cleaning and repeated use.
• Available in a wide range of mesh counts and wire diameters.
• Suitable for filter screens, filter elements, and custom fabricated components.
• Compatible with OEM filtration equipment and industrial processing systems.

Typical Applications

• Liquid filtration systems
• Gas filtration equipment
• Industrial process filtration
• Oil and hydraulic filtration
• Chemical filtration systems
• Food and beverage filtration
• Filter cartridges and filter elements
• OEM filtration equipment

Customization Options

• Custom mesh count
• Custom wire diameter
• Custom opening size
• Custom roll width and length
• Cut-to-size sheets and panels
• OEM labeling and private packaging
• Export-standard packaging
